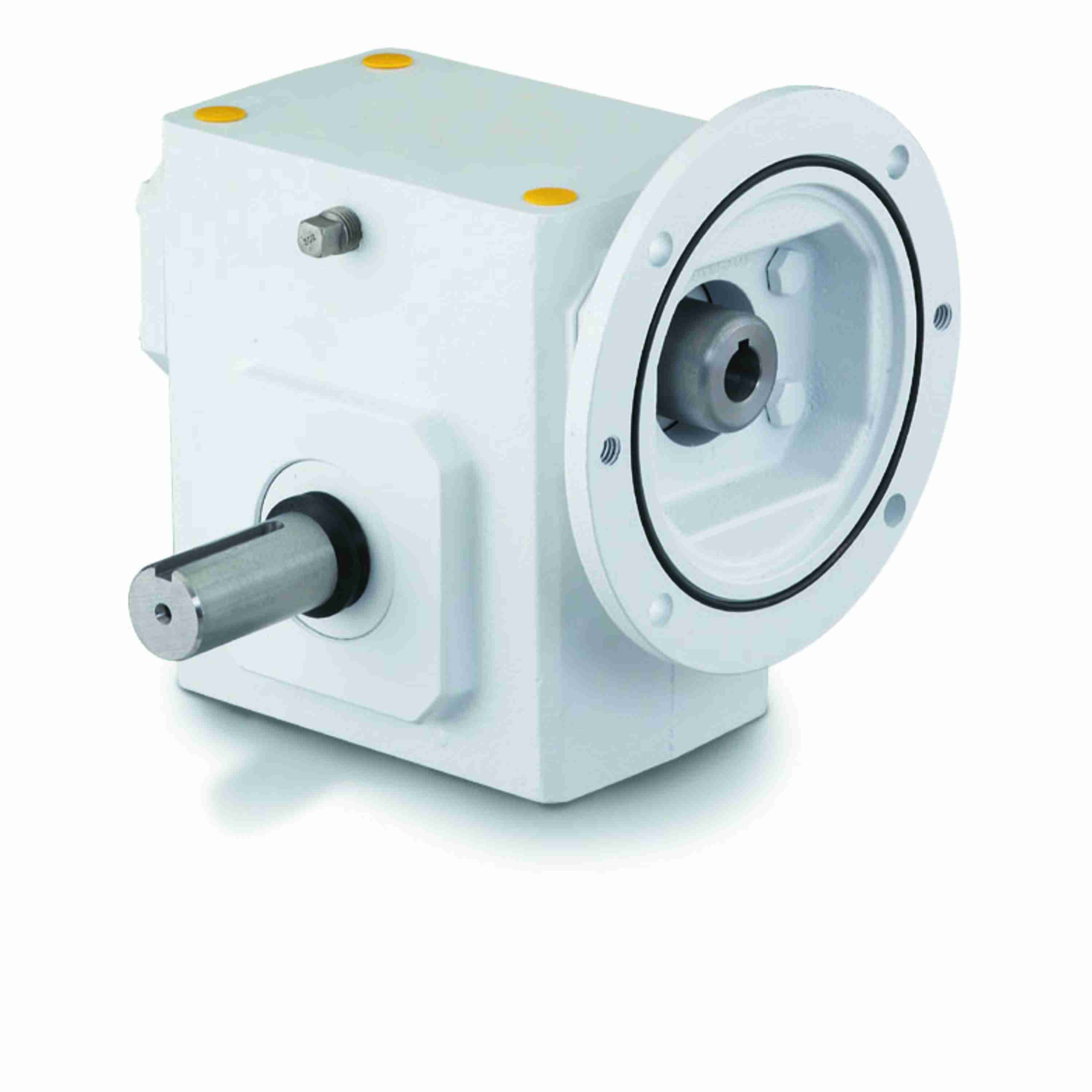

GROVE GEAR GR8183022.00 GR-WBMQ818-60-R-56 Right Angle Gear Reducer, 60 to 1 Reduction Ratio, 29 RPM Output, 623 lb-in Torque, Epoxy Washdown
Get it by Tuesday, Aug 18
€1,322.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | Epoxy Washdown |
| Assembly | WBMQ-R |
| Center Distance | 1 3/4" |
| Frame | 56C |
| Frame Size | 56C |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Flange | 56C |
| Input Hp | 0.449 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| Material | Cast Iron |
| Max. Input Hp | 0.449 hp , 449/1000 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output | Right |
| Output Dia. | 7/8" |
| Output Hp | 36/125 hp |
| Output Key Size | 3/16" x 1.38" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia | 0.875 |
| Output Shaft Dia. | 7/8" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Type | Right Handed Shaft |
| Output Style | R |
| Output Torque | 623 lbs.-in. |
| Output Type | Shaft |
| Overhung Load | 1200 lbs. |
| Paint/coating | White Epoxy |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-WBMQ-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 29 RPM |
| Torque (lb-in)@1750rpm | 623 |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Product Variants
| Product | Model | Output Torque | Output Speed | Output Dia. | Output Hp | Input Dia. | Max. Input Hp | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

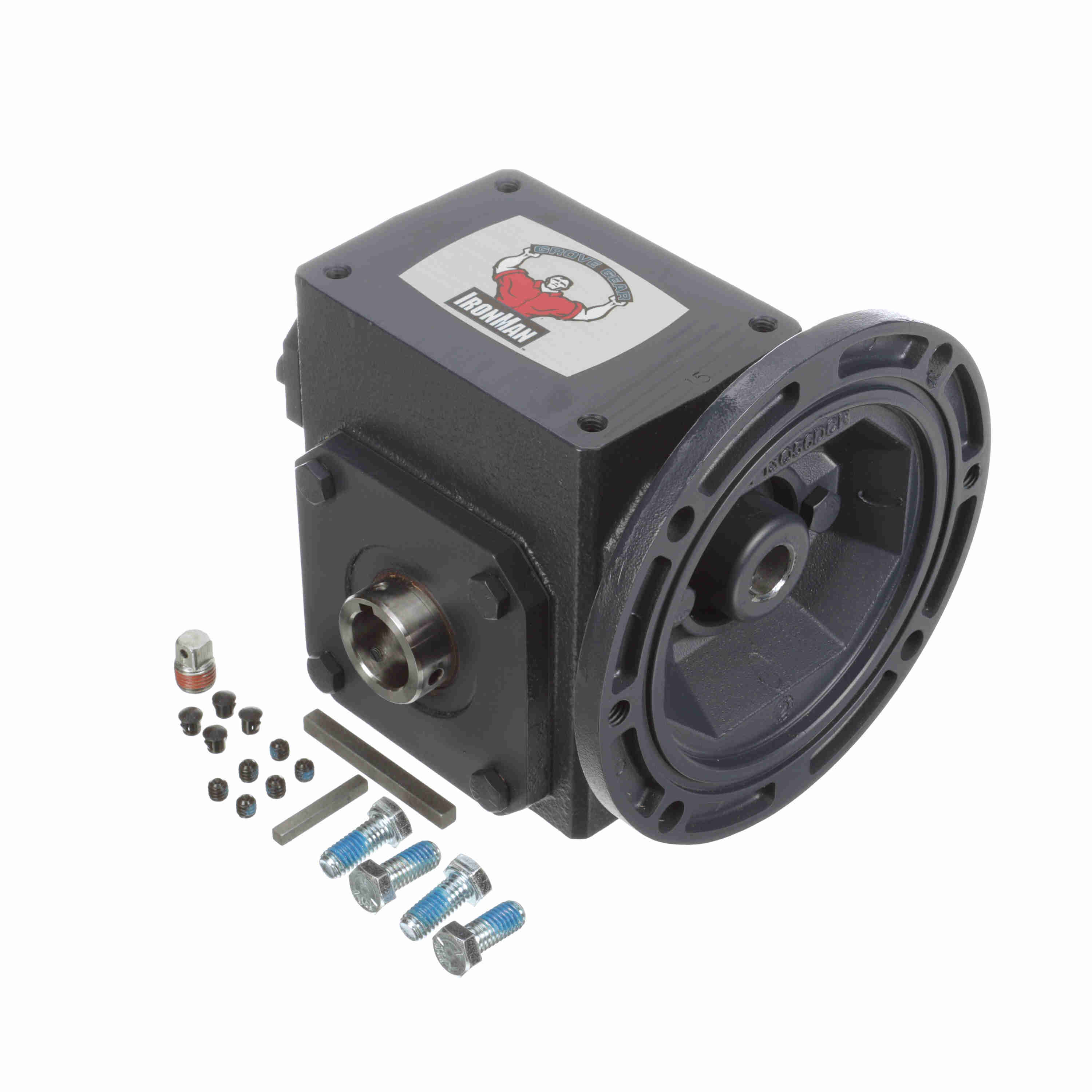

GR8180542.16 | 567 | - | 1" | 0.715 hp | 5/8" | 0.884 hp | Hollow | Blue | €1,207.97 | |
 |
GR8180111.00 | 528 | 175 RPM | 7/8" | 1.466 hp | 5/8" | 1 5/8 hp | Left | Blue | €894.01 | |
|
GR8180124.00 | 645 | 116.7 RPM | 7/8" | 1.058 hp | 5/8" | 1.224 hp | Right | Blue | €894.01 | |
 |
GR8185564.00 | - | - | - | - | - | - | Right | - | €1,206.28 | |
|
GR8180118.00 | 689 | 29.2 RPM | 7/8" | 0.288 hp | 5/8" | 0.449 hp | Left | Blue | €809.88 | |
|
GR8180117.00 | 857 | 35 RPM | 7/8" | - | 5/8" | 103/200 hp | Left | Blue | €894.01 | |
|
GR8180130.00 | 623 | 29.2 RPM | 7/8" | 0.288 hp | 5/8" | 0.449 hp | Right | Blue | €809.88 |
