GROVE GEAR GR8180127.00 GR-BMQ818-30-R-56 Right Angle Gear Reducer, 30 to 1 Reduction Ratio, 58 RPM Output, 614 lb-in Torque, H1 Right Output
Get it by Tuesday, Aug 18
€894.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 3.56 |
| Aj | 5.88 |
| Application | General Purpose |
| B | 5.06 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 5 3/4" |
| Center Distance | 1 3/4" |
| Centre Distance | 1 3/4" |
| D | 2.06 |
| F | 2.75 |
| Frame Size | 56C |
| G | 1.38 |
| Gear Drive Reductions | Single |
| Gear Ratio | 30:1 |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Hp | 37/50 hp |
| I | 3 6/25" |
| Input Bore (c Face) | 0.625 |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Flange | 56C |
| Input Hp | 0.741 hp |
| Input Hp @ 1750 Rpm | 0.741 hp |
| Input Keyway Size | 3/16" x 3/32" |
| Input Quill Dia. | 5/8" |
| Input Size | 5/8" |
| Input Style | C Face Quill |
| J | 4.19" |
| K | 2.09" |
| Length | 10.69 |
| Lq | 4.09" |
| Lubrication | PAG Synthetic Oil |
| Lubrication Type | Pag Synthetic Oil |
| Material | Cast Iron |
| Max. Hp | 37/50 hp |
| Max. Input Hp | 0.741 hp , 741/1000 hp |
| Max. Ohl (output Shaft) | 1200 |
| Max. Overhung Load | 1255 lbs. |
| Max. Thrust Load (output Shaft) | 1144 |
| Mounting Type | Base |
| N | 4.31 |
| No. Of Gear Reductions | Single |
| O | 2.05" |
| Output | Right |
| Output Dia. | 7/8" |
| Output Hp | 0.569 hp |
| Output Keyway Size | 0.1875" x 1.38" |
| Output Shaft | Solid Shaft |
| Output Shaft Dia | 0.875 |
| Output Shaft Dia. | 7/8" |
| Output Shaft Direction | Right |
| Output Shaft Length | 2.05" |
| Output Shaft Orientation | R |
| Output Shaft Thrust Rating | 1144 |
| Output Shaft Type | Right Handed Shaft |
| Output Speed | 58.3 RPM |
| Output Style | R |
| Output Torque | 531 |
| Output Type | Shaft |
| Overhung Load Rating | 1200 lbs. |
| Paint/coating | Blue |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Product Series | GR Series |
| Ratio | 30:1 |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Rq | 3.59" |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor 1 | 1.48 SF @ 1/2 HP |
| Service Factor 2 | 2.22 SF @ 1/3 HP |
| Service Factor 3 | 2.96 SF @ 1/4 HP |
| Shaft Seal Material | Viton |
| Speed | 58 RPM |
| T | 0.875 |
| Tap Depth | 0.63" |
| Torque | 614 lbs.-in. |
| Torque (lb-in)@1750rpm | 614 |
| Type | Right Angle Single Reduction |
| Width | 9.06 |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Product Variants
| Product | Model | Output Speed | Output Torque | Max. Input Hp | Output Hp | Input Dia. | Input Bore Size | Speed | Input Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

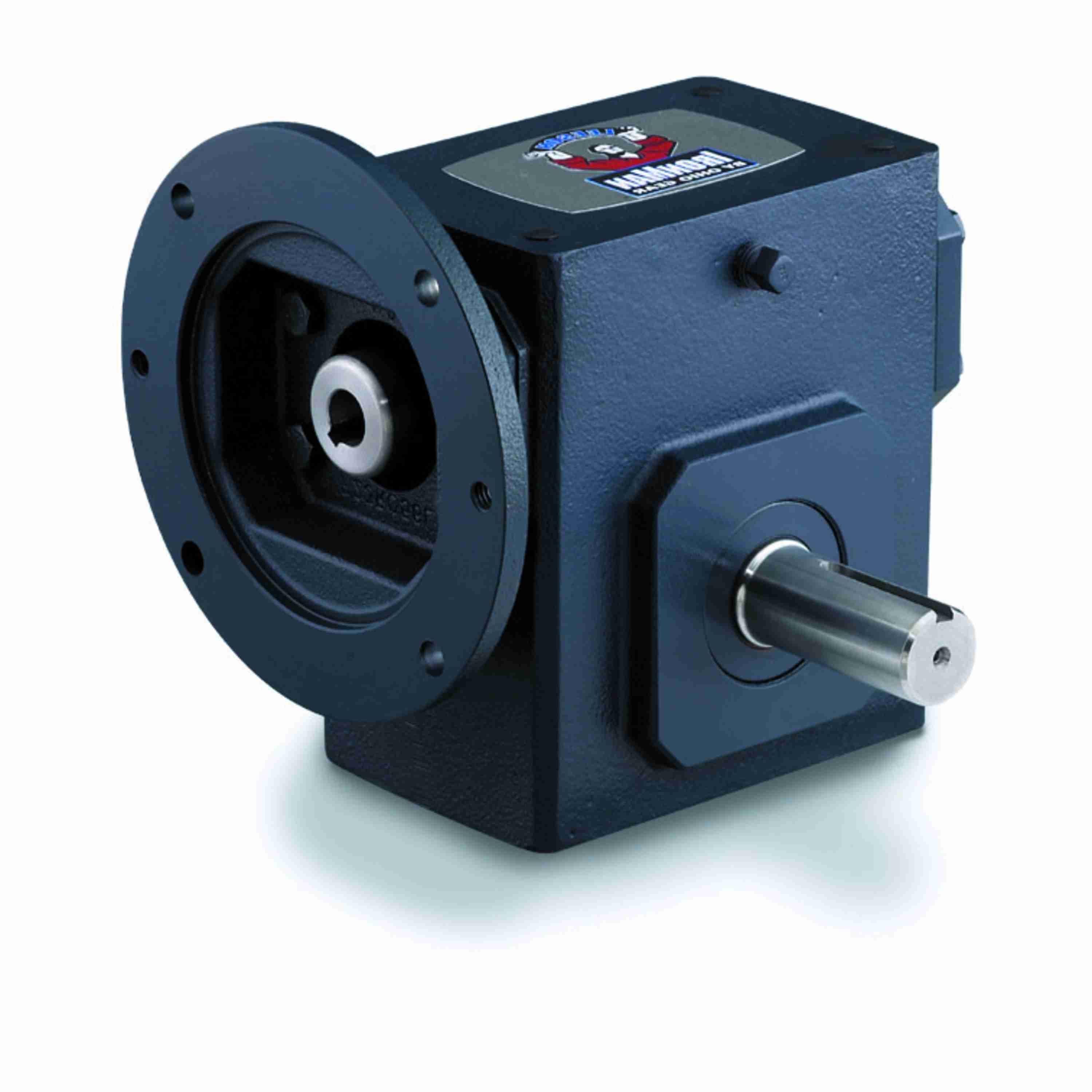

GR8180129.00 | 35 RPM | 701 | 103/200 hp | - | - | 5/8" | 35 RPM | C-Face Quill | €980.82 | |
|
GR8180128.00 | 43.75 RPM | 874 | 0.609 hp | 11/25 hp | 5/8" | 5/8" | 43 RPM | C Face Quill | €809.88 | |
|
GR8180123.00 | 175 RPM | 459 | 1 5/8 hp | 1.466 hp | 5/8" | 5/8" | 175 RPM | C Face Quill | €894.01 | |
 |
GR8180160.00 | 116.7 RPM | 823 | 1.224 hp | 1.058 hp | 7/8" | 7/8" | 116 RPM | C Face Quill | €1,088.93 | |
|
GR8180121.00 | 350 RPM | 366 | 2 3/5 hp | 2.422 hp | - | 5/8" | 350 RPM | C-Face Quill | €894.01 | |
|
GR8180126.00 | 70 RPM | 713 | 221/250 hp | 0.715 hp | - | 5/8" | 70 RPM | C-Face Quill | €1,073.79 | |
|
GR8180164.00 | 43 RPM | 634 lbs.-in. | 0.609 hp | 11/25 hp | 7/8" | 7/8" | 43 RPM | C Face Quill | €1,088.93 |
