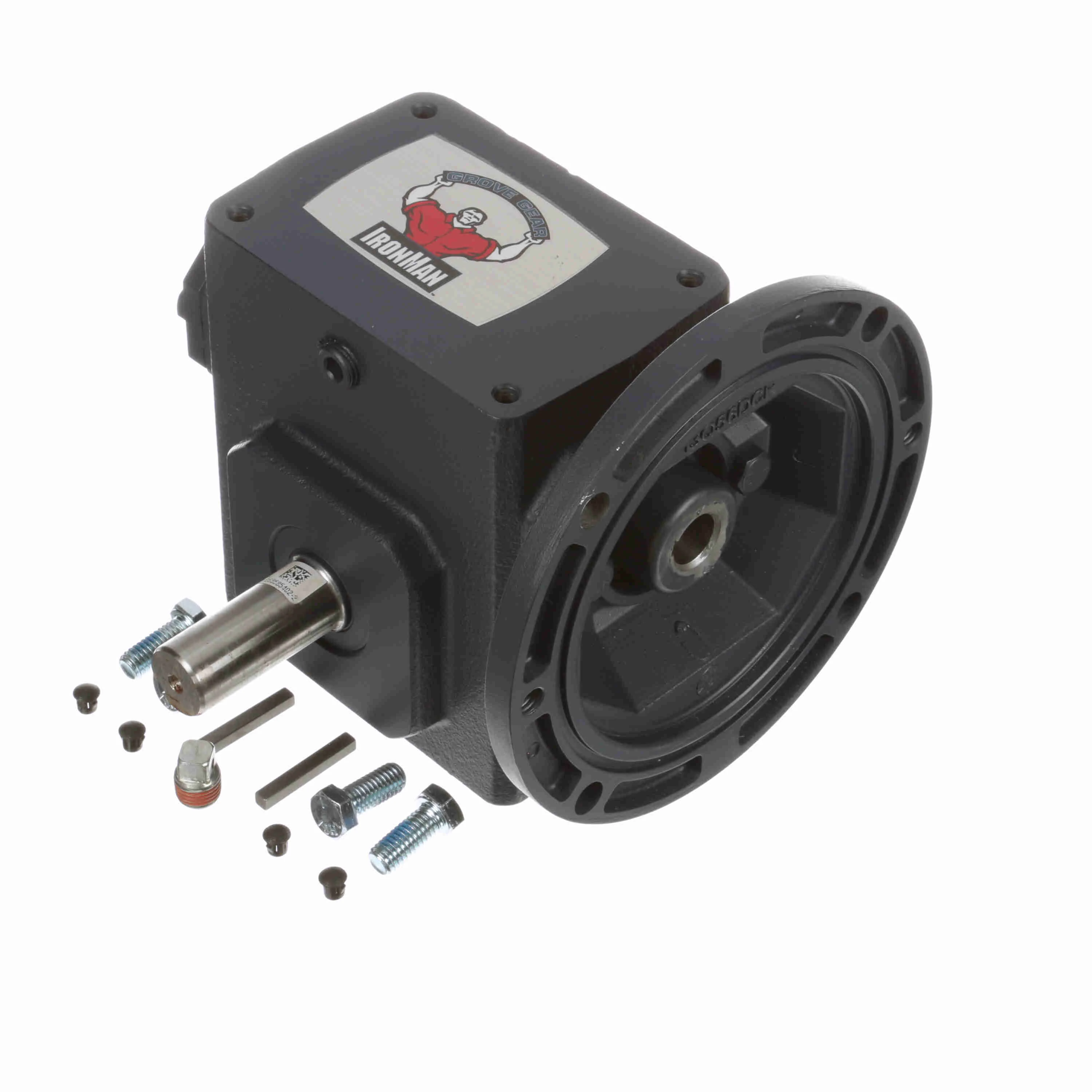

GROVE GEAR GR8180112.00 GR-BMQ818-15-L-56 Right Angle Gear Reducer, 15 to 1 Reduction Ratio, 116 RPM Output, 571 lb-in Torque, H1 Left Output
Get it by Thursday, Aug 27
€894.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | General Purpose |
| Center Distance | 1 3/4" |
| Centre Distance | 1 3/4" |
| Gear Drive Reductions | Single |
| Gear Ratio | 15:1 |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Hp | 1 11/50 hp |
| Input Bore (c Face) | 0.625 |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Flange | 56C |
| Input Keyway Size | 3/16" x 3/32" |
| Input Size | 5/8" |
| Input Style | C Face Quill |
| Length | 10.69 |
| Lubrication | PAG Synthetic Oil |
| Lubrication Type | Pag Synthetic Oil |
| Material | Cast Iron |
| Max. Hp | 1 11/50 hp |
| Max. Input Hp | 1.224 hp |
| Max. Ohl (output Shaft) | 1200 |
| Max. Overhung Load | 1125 lbs. |
| Max. Thrust Load (output Shaft) | 1144 |
| Mounting Type | Base |
| No. Of Gear Reductions | Single |
| Output | Left |
| Output Dia. | 7/8" |
| Output Hp | 1.058 hp |
| Output Keyway Size | 0.1875" x 1.38" |
| Output Shaft Dia | 0.875 |
| Output Shaft Dia. | 7/8" |
| Output Shaft Direction | Left |
| Output Shaft Length | 2.05" |
| Output Shaft Orientation | L |
| Output Shaft Type | Left Handed Shaft |
| Output Speed | 116.7 RPM |
| Output Style | L |
| Output Torque | 823 |
| Output Type | Shaft |
| Paint/coating | Blue |
| Product Datasheet | grove-gear-gr8130084-00.pdf |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Product Series | GR Series |
| Ratio | 15:1 |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor 1 | 1.22 SF @ 1 HP |
| Service Factor 2 | 1.63 SF @ 3/4 HP |
| Service Factor 3 | 2.44 SF @ 1/2 HP |
| Shaft Seal Material | Viton |
| Speed | 116 RPM |
| Torque | 571 lbs.-in. |
| Torque (lb-in)@1750rpm | 571 |
| Type | Right Angle Single Reduction |
| Width | 9.06 |
Shipping Info:
| Ship weight (kg) | 12.15 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Documentation:
Product Variants
| Product | Model | Output Torque | Output Speed | Output Dia. | Output Hp | Input Dia. | Max. Input Hp | Output | Paint/coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GR8180542.16 | 567 | - | 1" | 0.715 hp | 5/8" | 0.884 hp | Hollow | Blue | €1,207.97 | |
 |
GR8180111.00 | 528 | 175 RPM | 7/8" | 1.466 hp | 5/8" | 1 5/8 hp | Left | Blue | €894.01 | |
|
GR8180124.00 | 645 | 116.7 RPM | 7/8" | 1.058 hp | 5/8" | 1.224 hp | Right | Blue | €894.01 | |
 |
GR8185564.00 | - | - | - | - | - | - | Right | - | €1,206.28 | |
|
GR8180118.00 | 689 | 29.2 RPM | 7/8" | 0.288 hp | 5/8" | 0.449 hp | Left | Blue | €809.88 | |
|
GR8180117.00 | 857 | 35 RPM | 7/8" | - | 5/8" | 103/200 hp | Left | Blue | €894.01 | |
|
GR8180130.00 | 623 | 29.2 RPM | 7/8" | 0.288 hp | 5/8" | 0.449 hp | Right | Blue | €809.88 |
