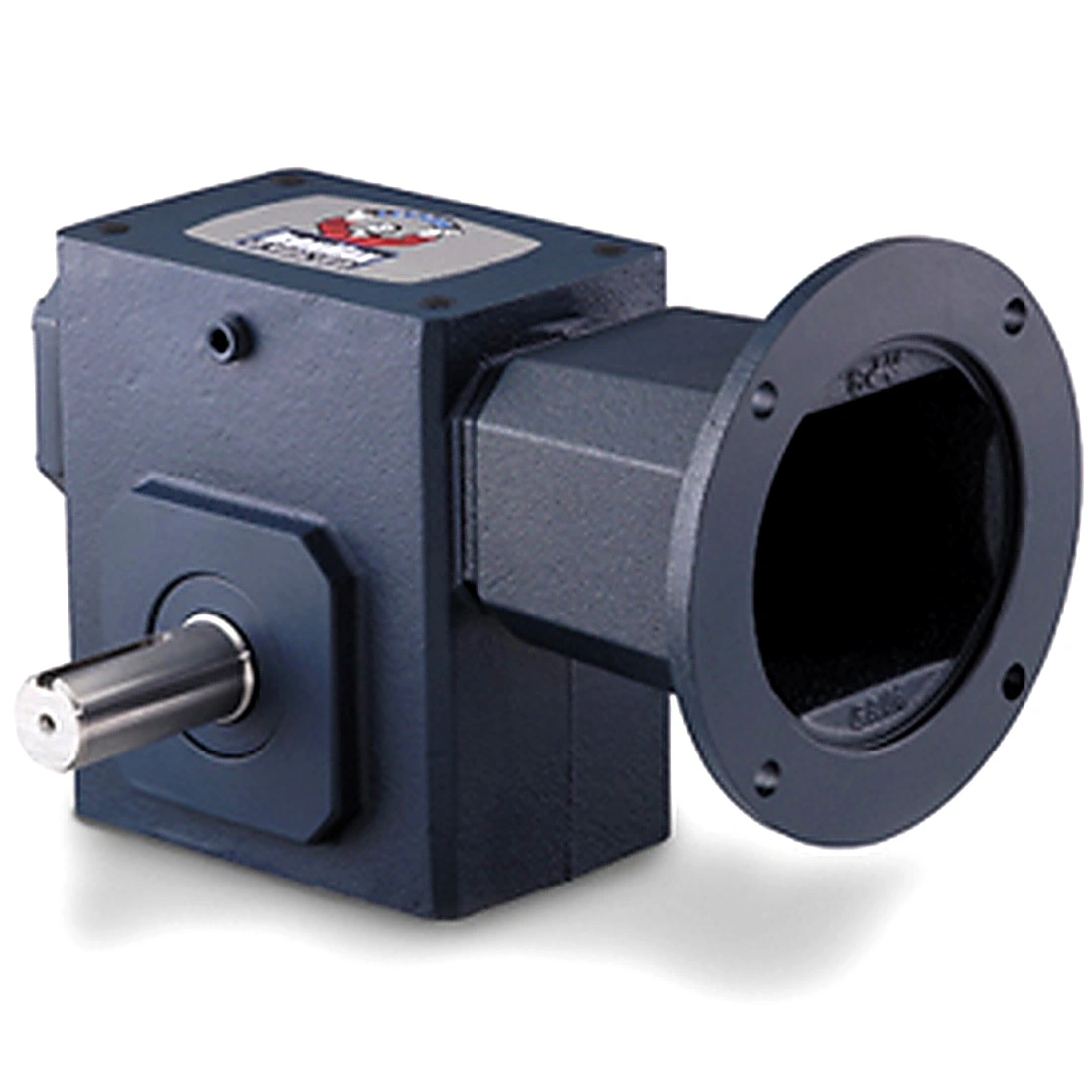

GROVE GEAR GR8180048.00 GR-BM818-100-L-56 Right Angle Gear Reducer, 100 to 1 Reduction Ratio, 17 RPM Output, 277 lb-in Torque, H1 Left Output

Item: AY9ETLModel: GR8180048.00Cross Ref: GR-BM818-100-L-56
Check Availability
In Stock
Ratio

Get it by Wednesday, Jul 15

€1,088.93 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
A 3.56
Aj 5.88
Application General Purpose
B 5.06
Be 0.38"
Bf 0.41
C 5 3/4"
Center Distance 1 3/4"
Centre Distance 1 3/4"
D 2.06
F 2.75
Family Name Cast Iron Housing Material Worm Gear Reducers
Frame Size 56C
G 1.38
Gear Drive Reductions Single
Gear Ratio 100:1
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
I 3 6/25"
Input Bore (c Face) 0.625
Input Bore Size 5/8"
Input Dia. 5/8"
Input Flange 56C
Input Hp 0.141 hp
Input Hp @ 1750 Rpm 0.141 hp
Input Keyway Size 3/16" x 3/32"
Input Size 5/8"
Input Style C Face Coupled
J 4.19"
K 2.09"
Lm 6.7
Lubrication PAG Synthetic Oil
Lubrication Type Pag Synthetic Oil
Material Cast Iron
Max. Input Hp 0.141 hp , 141/1000 hp
Max. Ohl (output Shaft) 1200
Max. Thrust Load (output Shaft) 1144
Mounting Type Base
N 4.31
No. Of Gear Reductions Single
O 2.05"
Output Left
Output Dia. 7/8"
Output Hp 0.077 hp
Output Keyway Size 0.1875" x 1.38"
Output Shaft Solid Shaft
Output Shaft Dia 0.875
Output Shaft Dia. 7/8"
Output Shaft Direction Left
Output Shaft Length 2.05"
Output Shaft Orientation L
Output Shaft Thrust Rating 1144
Output Shaft Type Left Handed Shaft
Output Style L
Output Torque 304
Output Type Shaft
Overhung Load Rating 1200 lbs.
Paint/coating Blue
Product Line GR Series - Ironman Worm Gear Reducers
Product Series GR Series
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Series Type Cast Iron 800 Worm Gear Reducers
Shaft Seal Material Viton
Speed 17 RPM
T 0.875
Tap Depth 0.63"
Torque 277 lbs.-in.
Torque (lb-in)@1750rpm 277
Type Right Angle Single Reduction
U 5/8"

Shipping Info:

Ship weight (kg) 11.7
Ship height (cm)26.67
Ship length (cm)27.15
Ship width (cm)23.01

Product Variants

ProductModeloutput torquegear typemax. input hpmounting typegear ratiocenter distanceno. of gear reductionsoutput shaftPrice
GROVE GEAR GR8180542.16 Worm Reducer, 25:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Cast Iron | AX3ZYE GR8180542.16--0.884 hpShaft25:11 3/4"--€1,207.97
GROVE GEAR GR8180111.00 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 0.875 Inch O.D, Right Angle Cast Iron | AX4BYP GR8180111.00--1 5/8 hpBase10:11 3/4"--€894.01
GROVE GEAR GR8180124.00 Worm Reducer, 15:1 Ratio, 0.625 Inch I.D, 0.875 Inch O.D, Cast Iron | AX4CKH GR8180124.00--1.224 hpBase15:11 3/4"--€894.01
GROVE GEAR GR8185564.00 Quill Input Worm Gear Reducer | AX4CKJ GR8185564.00-----1.8"--€1,206.28
GROVE GEAR GR8180118.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 0.875 Inch O.D, Right Angle Cast Iron | AX4FCX GR8180118.00--0.449 hpBase60:11 3/4"--€809.88
GROVE GEAR GR8180117.00 Worm Reducer, 50:1 Ratio, 0.625 Inch I.D, 0.875 Inch O.D, Cast Iron | AX4KHH GR8180117.00--103/200 hp--1 3/4"--€894.01
GROVE GEAR GR8180130.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 0.875 Inch O.D, Cast Iron | AX4LME GR8180130.00--0.449 hpBase60:11 3/4"--€809.88
