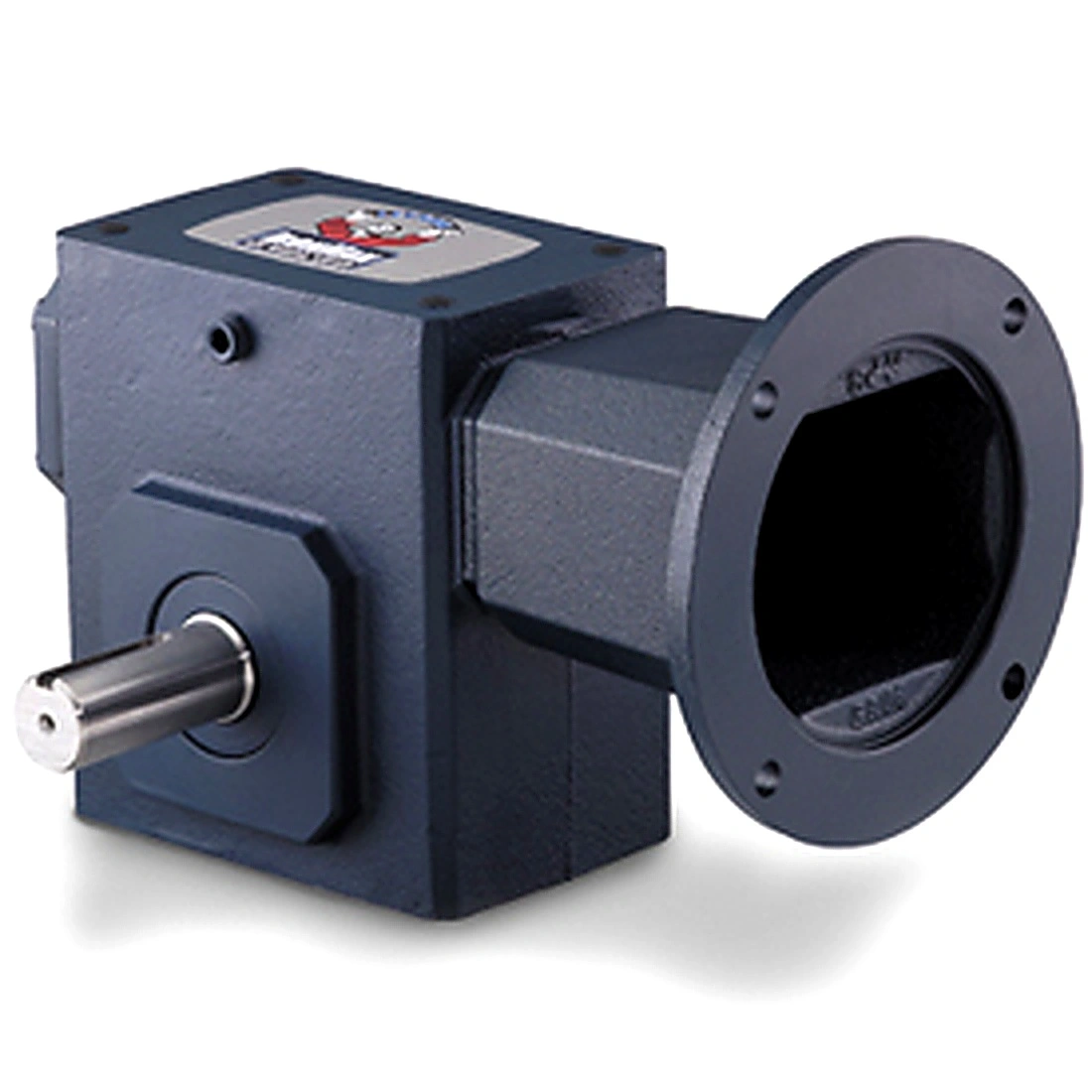

GROVE GEAR GR8150074.00 Reducer, 3-Piece Coupled Input Output Shaft Left Worm Gear | AX9RUX

GROVE GEAR GR8150074.00 GR-BM815-7.5-L-56 Right Angle Gear Reducer, 7.5 to 1 Ratio, 0.75 Inch Left Output Shaft, 56C NEMA Input, 233 RPM Output

Item: AX9RUXModel: GR8150074.00Cross Ref: GR-BM815-7.5-L-56
Check Availability
In Stock

Get it by Monday, Aug 17

€591.29 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 3.44
Aj 5.88
Ak 4.5
Application General Purpose
Assembly BM-L
B 4.88
Bd 6.5
Be 0.38"
Bf 0.41
C 5.38"
Center Distance 1.54"
D 1.91
F 2.75
Frame 56
G 1.38
Gear Type Worm
H-tap Size 5/16"-18
H-tap Type UNC
Housing Material Cast Iron
I 3.14"
Input Dia. 5/8"
Input Hp @ 1750 Rpm 1.522 hp
Input Keyway 3/16" x 1.38"
Input Keyway Size 3/16" x 1.38"
Input Speed 1750 , 1750 RPM
Input Style Flexible Coupling Input
J 4.19"
K 2.09"
L 4.35"
Lm 6.6
Max. Input Hp @ 1750 1 1/2 hp
Motor Frame Size 56
Mount Footprint 2.75 x 4.19
Mount Style BM
N 4.31
Nema Input Mounting 56C
No. Of Gear Reductions 1 , Single
O 2.11"
Output Config H1 Left
Output Dia. 3/4"
Output Key 3/16 x 1.5
Output Key Size 3/16" x 1.5"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia. 0.75
Output Shaft Direction Left
Output Shaft Thrust Rating 946
Output Speed 233 , 233 RPM
Output Speed @ 1750 Rpm Input 233
Output Torque 370 lbs.-in.
Output Torque Rating (in-lb) 370 lbs.-in.
Overhung Load Rating 860 lbs.
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 7.51
Reducer Worm - Right Angle
Reduction Ratio 7.5
Series GR , GR Series
Series Code Gr
Series Size 815
Service Factor 1
Shaft Center Distance 1.54
Shaft Center Height 1.91
Shaft Seal Material Viton
T 0.75
Tap Depth 0.63"
Tap Size 5/16"-18
Thread Type Coarse
Torque (lb-in)@1750rpm 370 lbs.-in.
U 5/8"

Shipping Info:

Ship weight (kg) 13.05
Ship height (cm)13.34
Ship length (cm)20.32
Ship width (cm)15.24

Product Variants

ProductModelOutput TorqueOutput SpeedOutput HpOutput Dia.Max. Input HpInput Dia.OutputPaint/coatingPrice
GROVE GEAR GR8150196.00 Worm Reducer, 15:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Cast Iron | AX4CFX GR8150196.00519116.7 RPM0.826 hp3/4"1 3/1000 hp5/8"RightBlue€1,040.13
GROVE GEAR GR8150188.00 Worm Reducer, 40:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Cast Iron | AX4CWT GR8150188.0043243.75 RPM0.361 hp3/4"14/25 hp5/8"LeftBlue€866.02
GROVE GEAR GR8150193.00 Worm Reducer, 5:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Cast Iron | AX6EBW GR8150193.00271350 RPM1.794 hp3/4"1.939 hp5/8"RightBlue€950.09
GROVE GEAR GR8150504.10 Worm Reducer, 15:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX6EPU GR8150504.10446 lbs.-in.116 RPM0.826 hp5/8"1.003 hp5/8"HollowBlue€1,229.64
GROVE GEAR GR8153828.00 Quill Input Worm Gear Reducer | AX7DUV GR8153828.00------Left/Right-€1,125.42
GROVE GEAR GR8152022.00 Reducer, Solid Input Shaft Solid Output Shaft Right Worm | AX7HBA GR8152022.00------RightBlue€1,476.03
