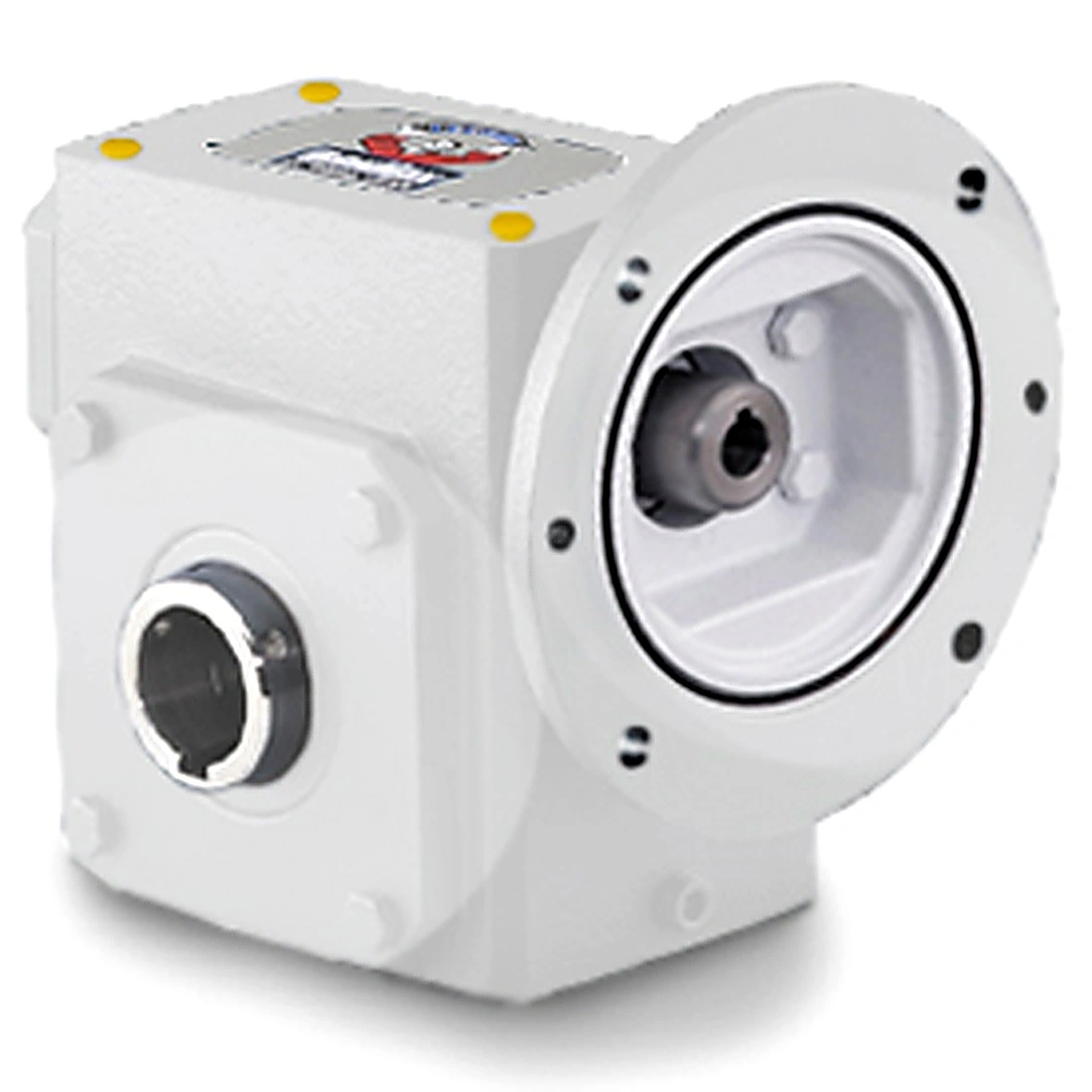

GROVE GEAR GR8133508.10 GR-WHMQ813-40-H1-56-10 Epoxy WashGuard Right Angle Gear Reducer, 40 to 1 Ratio, 5/8 Inch Hollow Bore, 56C NEMA Input, 43 RPM Output
Get it by Tuesday, Sep 1
€1,018.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | Epoxy Washdown |
| Hollow Bore Dimensions | 5/8" |
| Max. Input Hp @ 1750 | 1/4 hp |
| Mount Footprint | 2 x 3.25 |
| Mount Style | WHMQ |
| Nema Input Mounting | 56C |
| Output Config | H1 Hollow Bore |
| Output Speed @ 1750 Rpm Input | 43 |
| Product Datasheet | grove-gear-gr8130084-00.pdf |
| Reduction Ratio | 40 |
| Series | GR |
| Series Size | 813 |
| Shaft Center Distance | 1.33 |
| Shaft Center Height | 1.72 |
| Torque (lb-in)@1750rpm | 322 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 15.24 |
Documentation:
Product Variants
| Product | Model | Output Speed | Input Dia. | Output Torque | Output Hp | Max. Input Hp | Output | Paint/coating | Input Hp @ 1750 Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GR8130075.00 | 175 RPM | 5/8" | 263 | 0.729 hp | 0.823 hp | Left | Blue | 0.823 hp | €822.82 | |
 |
GR8130077.00 | 87.5 RPM | 5/8" | 320 | 0.445 hp | 0.551 hp | Left | Blue | 0.551 hp | €745.38 | |
 |
GR8130005.00 | 87 RPM | 1/2" | 320 lbs.-in. | 89/200 hp | 0.551 hp | Left | Blue | 0.551 hp | - | RFQ
|
 |
GR8135568.00 | 116.7 RPM | - | 292 lbs.-in. | 0.541 hp | - | Right | Blue | - | €1,155.72 | |
 |
GR8130089.00 | 87.5 RPM | 5/8" | 320 | 0.445 hp | 0.551 hp | Right | Blue | 0.551 hp | €822.82 | |
 |
GR8130079.00 | 58.3 RPM | 5/8" | 314 | 0.29 hp | 0.395 hp | Left | Blue | - | €822.82 | |
 |
GR8130043.00 | 58 RPM | 1/2" | 314 lbs.-in. | 29/100 hp | 79/200 hp | Left | Blue | 79/200 hp | €1,002.19 |
