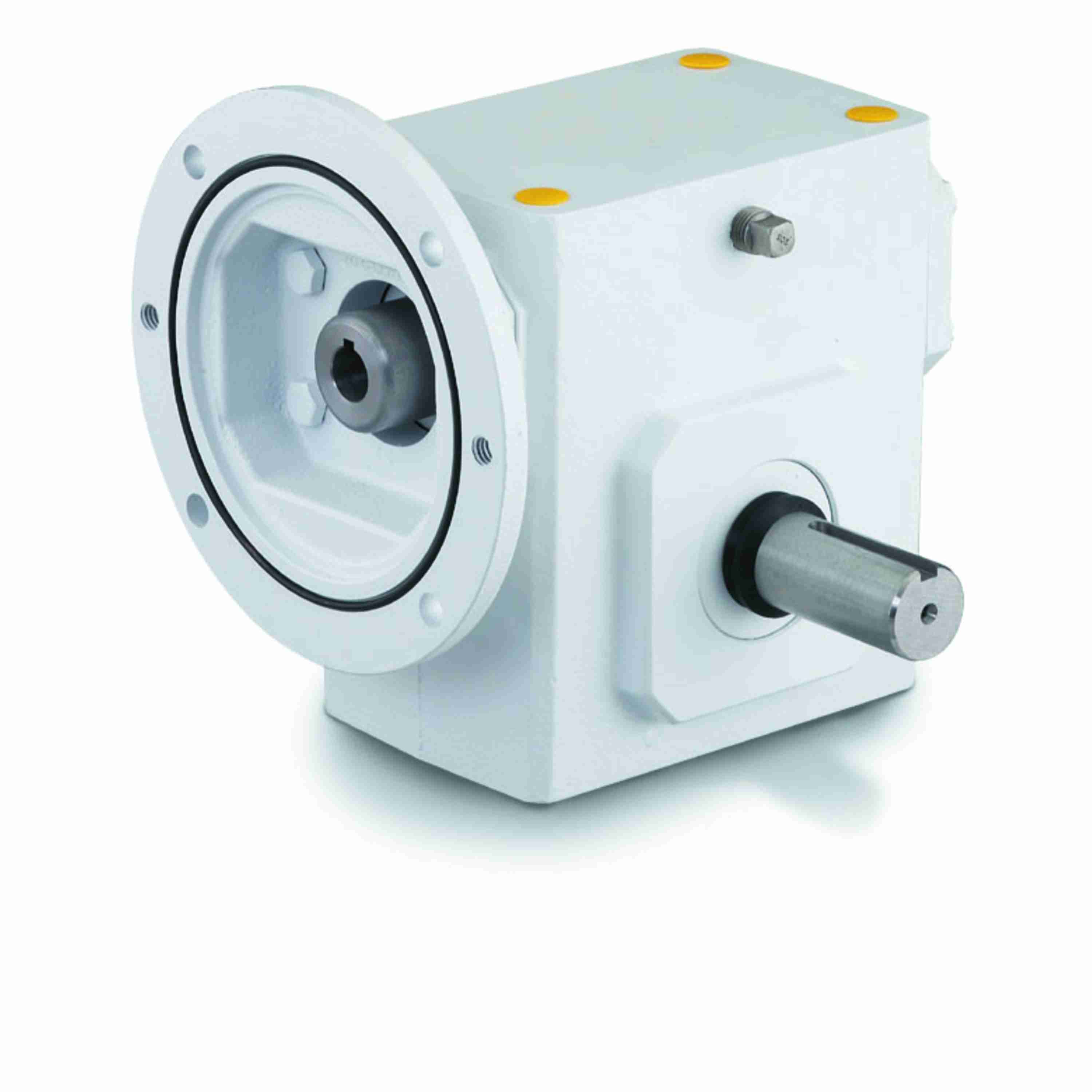

GROVE GEAR GR8133017.00 GR-WBMQ813-20-R-56 Right Angle Gear Reducer, 20 to 1 Reduction Ratio, 87 RPM Output, 320 lb-in Torque, Epoxy Washdown
Get it by Wednesday, Aug 19
€1,184.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | Epoxy Washdown |
| Center Distance | 1.33" |
| Centre Distance | 1.33" |
| Frame Size | 56C |
| Gear Drive Reductions | Single |
| Gear Ratio | 20:1 |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Input Bore (c Face) | 0.625 |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Flange | 56C |
| Input Hp | 0.551 hp |
| Input Keyway Size | 3/16" x 3/32" |
| Input Size | 5/8" |
| Input Style | C Face Quill |
| Lubrication | PAG Synthetic Oil |
| Lubrication Type | Pag Synthetic Oil |
| Material | Cast Iron |
| Max. Input Hp | 0.551 hp , 551/1000 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | Single |
| Output | Right |
| Output Dia. | 5/8" |
| Output Hp | 0.445 hp |
| Output Keyway Size | 3/16" x 1 1/2" |
| Output Shaft | Shaft |
| Output Shaft Dia | 0.625 |
| Output Shaft Dia. | 5/8" |
| Output Shaft Direction | Right |
| Output Shaft Length | 2 4/25" |
| Output Shaft Orientation | R |
| Output Shaft Type | Right Handed Shaft |
| Output Style | R |
| Output Type | Shaft |
| Paint/coating | White Epoxy |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Product Series | GR Series |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Shaft Seal Material | Viton |
| Speed | 87 RPM |
| Torque | 320 lbs.-in. |
| Torque (lb-in)@1750rpm | 320 |
| Type | Right Angle Single Reduction |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Product Variants
| Product | Model | Output Hp | Max. Input Hp | Output Speed | Output Torque | Speed | No. Of Gear Reductions | Input Bore (c Face) | Output Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GR8133020.00 | 0.223 hp | 0.329 hp | 43 RPM | 322 lbs.-in. | 43 RPM | 1 | 5/8" | 5/8" | €1,201.23 | |
|
GR8133019.00 | 29/100 hp | 79/200 hp | 58 RPM | 314 lbs.-in. | 58 RPM | 1 | 5/8" | 5/8" | €1,201.23 |
