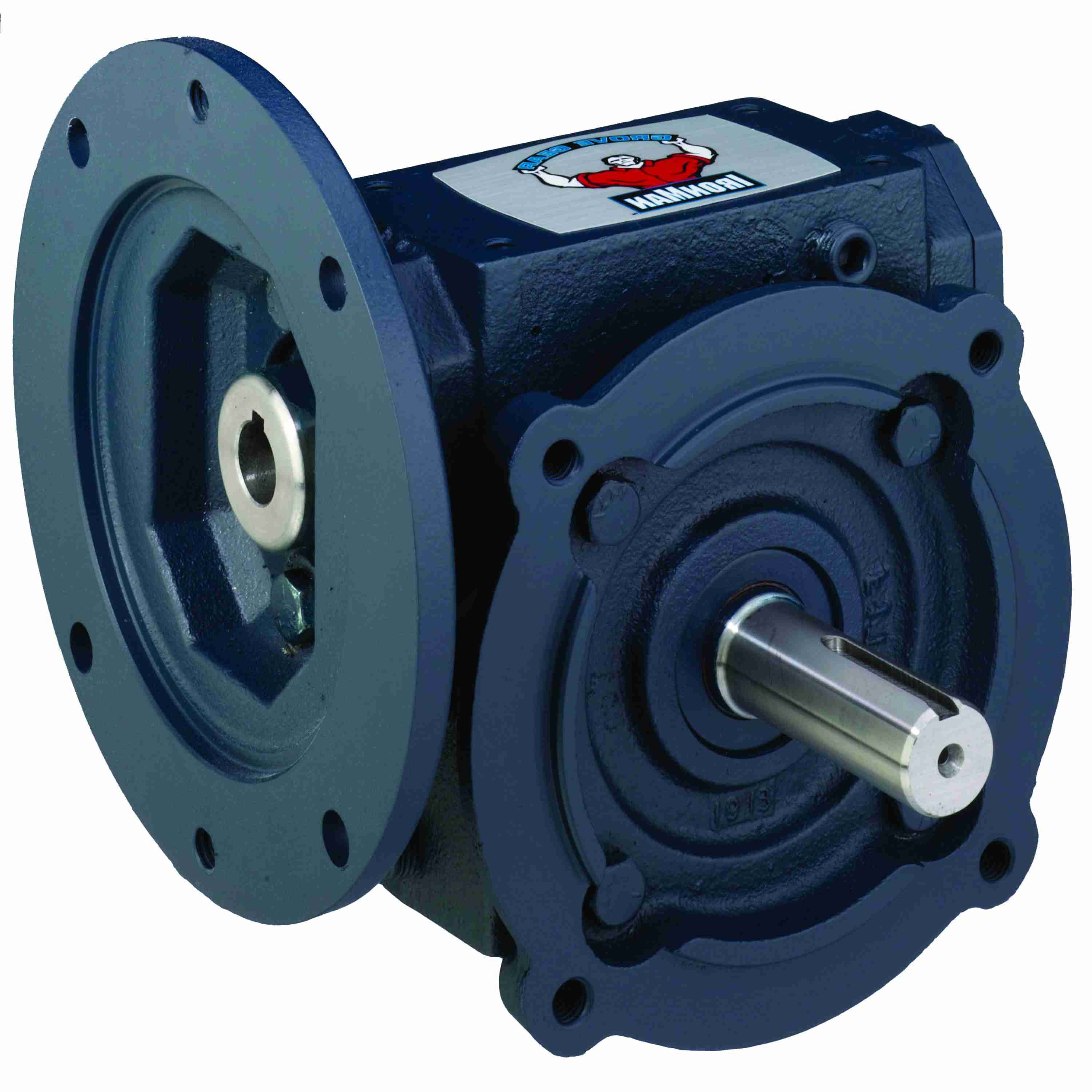

GROVE GEAR GR8131168.00 GR-CMQ813-100-R-56 Right Angle Gear Reducer, 100 to 1 Reduction Ratio, 17 RPM Output, 143 lb-in Torque, Cast Iron
Get it by Tuesday, Jul 14
€647.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Aj | 5.88 |
| Application | General Purpose |
| Assembly | CMQ-R |
| B | 6.64 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 4.66" |
| Center Distance | 1.33" |
| D | 1.72 |
| Frame | 56C |
| Frame Size | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| I | 2.61" |
| Input Bore (c Face) | 5/8" |
| Input Dia. | 5/8" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 5/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| J | 5 22/25" |
| Key Way Size | 3/16" x 3/32" |
| Lq | 3.46" |
| Max. Input Hp | 21/250 hp |
| No. Of Gear Reductions | 1 |
| Output Dia. | 5/8" |
| Output Hp | 1/25 hp |
| Output Key Size | 3/16" x 1.5" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia | 0.625 |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Speed | 17 RPM |
| Output Style | R |
| Output Torque | 143 lbs.-in. |
| Overhung Load | 700 lbs. |
| Overhung Load Rating | 700 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| R | 2.06" |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 3.09" |
| Series | GR Series |
| Series Style | GR-CMQ-R |
| Series Type | Cast Iron 800 Worm Gear Reducers |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| T | 0.625 |
| Tap Size | 3/8"-16 |
| Thread Type | Coarse |
| Torque (lb-in)@1750rpm | 143 |
| X | 1 21/25" |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | max. input hp | output torque | series | gear type | center distance | input style | housing material | output style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
GR8131157.00 | 1 31/125 hp | 209 lbs.-in. | GR Series | Worm | 1.33" | C Face Quill | Cast Iron | R | €1,043.56 |
