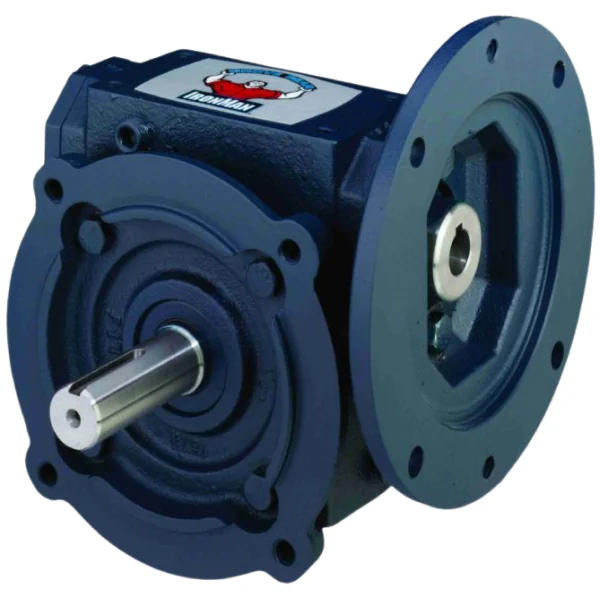

GROVE GEAR GR8131153.00 GR-CMQ813-50-L-56 Flanged Right Angle Gear Reducer, 50 to 1 Ratio, 0.625 Inch Left Output Shaft, 56C NEMA Input, Cast Iron
Get it by Tuesday, Aug 18
€647.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| Application | General Purpose |
| Housing | Cast Iron |
| Max. Input Hp @ 1750 | 57/200 hp |
| Mount Footprint | 2 x 3.25 |
| Mount Style | CMQ |
| Nema Input Mounting | 56C |
| Output Config | Flanged Left |
| Output Shaft Dia. | 0.625 |
| Output Speed @ 1750 Rpm Input | 35 |
| Overhung Load Rating | 700 lbs. |
| Reduction Ratio | 50:1 |
| Series | GR |
| Series Size | 813 |
| Shaft Center Distance | 1.33 |
| Shaft Center Height | 1.72 |
| Torque (lb-in)@1750rpm | 327 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 15.24 |
Product Variants
| Model | Output Speed | Output Torque | Input Dia. | Output Hp | Max. Input Hp | No. Of Gear Reductions | Output Shaft Direction | Output Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR8130075.00 | 175 RPM | 263 | 5/8" | 0.729 hp | 0.823 hp | Single | Left | - | €822.82 | |
| GR8130077.00 | 87.5 RPM | 320 | 5/8" | 0.445 hp | 0.551 hp | Single | Left | - | €745.38 | |
| GR8130005.00 | 87 RPM | 320 lbs.-in. | 1/2" | 89/200 hp | 0.551 hp | 1 | Left | Solid Shaft | - | RFQ
|
| GR8135568.00 | 116.7 RPM | 292 lbs.-in. | - | 0.541 hp | - | - | - | - | €1,155.72 | |
| GR8130089.00 | 87.5 RPM | 320 | 5/8" | 0.445 hp | 0.551 hp | Single | Right | - | €822.82 | |
| GR8130079.00 | 58.3 RPM | 314 | 5/8" | 0.29 hp | 79/200 hp | Single | Left | - | €822.82 | |
| GR8130043.00 | 58 RPM | 314 lbs.-in. | 1/2" | 29/100 hp | 79/200 hp | 1 | Left | Solid Shaft | €1,002.19 |
