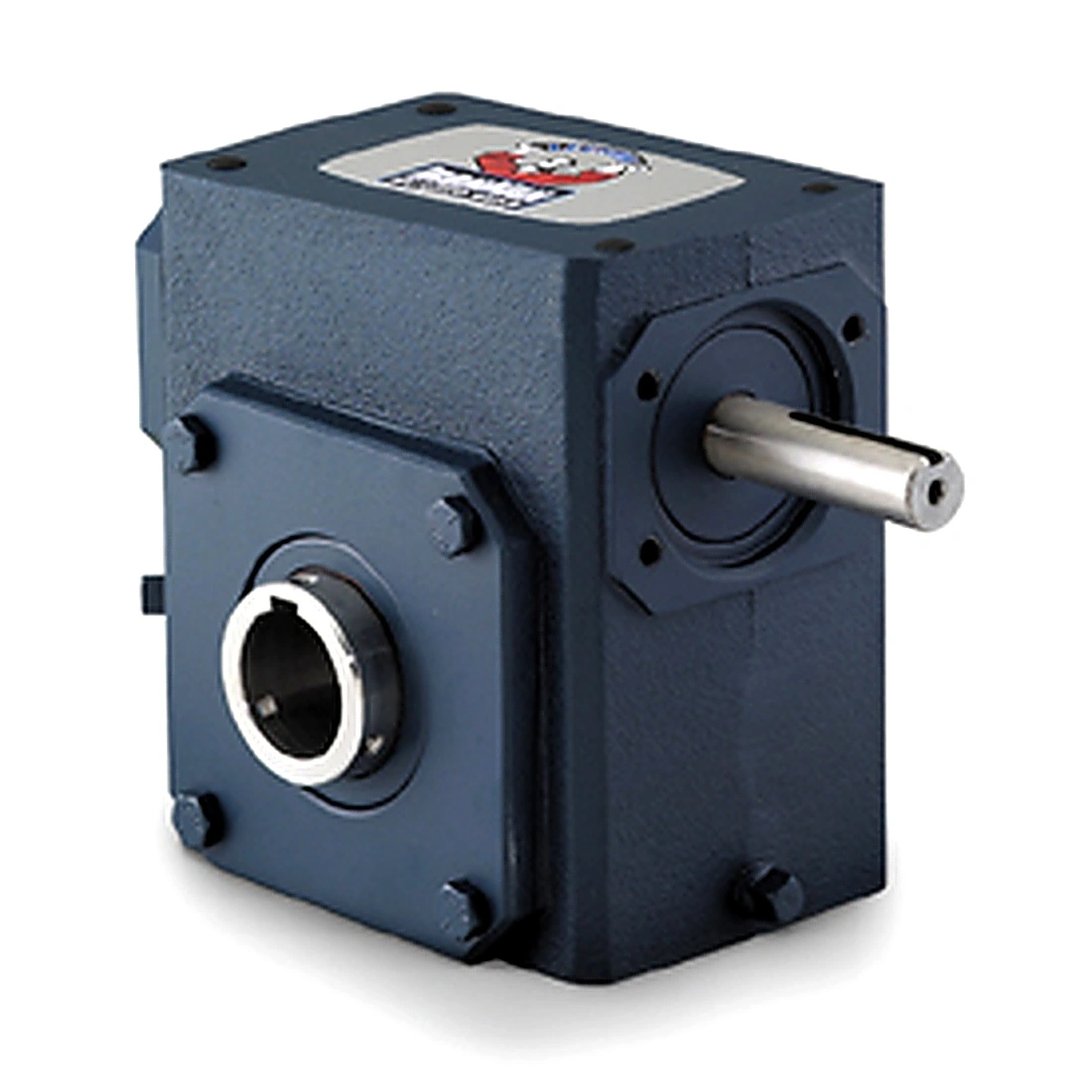

GROVE GEAR GR8130502.10 Solid Input Shaft Worm Gear Reducer, Hollow Bore Output Worm Gear | AY3TBB GR-H813-7.5-H1-10

GROVE GEAR GR8130502.10 GR-H813-7.5-H1-10 Right Angle Gear Reducer, 7.5 to 1 Ratio, 5/8 Inch Hollow Bore, Solid Shaft Input, Cast Iron

Item: AY3TBBModel: GR8130502.10Cross Ref: GR-H813-7.5-H1-10
Check Availability
In Stock

Get it by Tuesday, Sep 1

€649.30 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
Ad 3.9
Ae1 0.53
Ae2 0.32
Ag 4.75
Application General Purpose
Assembly H-H1
B 3.8
Bore Code 10
C 4.66"
Center Distance 1.33"
D 1.72
F 2
G 1
Gear Type Worm
Hollow Bore Dimensions 5/8"
Housing Cast Iron
Housing Material Cast Iron
I 2.61"
Input Dia. 1/2"
Input Hp @ 1750 Rpm 1 1/40 hp
Input Keyway 1/8" x 1"
Input Keyway Size 1/8" x 1"
Input Speed 1750 , 1750 RPM
Input Style Solid Shaft
J 3 1/4"
L 3.82"
M 1.76
Max. Input Hp @ 1750 1 hp
Mount Footprint 2 x 3.25
Mount Style H
Mounting Style Shaft Mount
Mounting Type Shaft Mount
Nema Input Mounting Solid Shaft
No. Of Gear Reductions 1 , Single
Output Config H1 Hollow Bore
Output Dia. 5/8"
Output Key 3/16 x 1.5
Output Key Size 3/16" x 1.5"
Output Shaft Hollow Bore
Output Shaft Assembly Code H1
Output Shaft Direction H1
Output Shaft Orientation H1
Output Shaft Thrust Rating 948
Output Speed 233 , 233 RPM
Output Speed @ 1750 Rpm Input 233
Output Torque 252 lbs.-in.
Output Torque Rating (in-lb) 252 lbs.-in.
Overhung Load Rating 700 lbs.
Product Datasheet grove-gear-gr8130084-00.pdf
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 7.51
Reducer Worm - Right Angle
Reduction Ratio 7.5:1
Series GR , GR Series
Series Code Gr
Series Size 813
Service Factor 1
Shaft Center Distance 1.33
Shaft Center Height 1.72
Shaft Seal Material Viton
T 0.625
Torque (lb-in)@1750rpm 252 lbs.-in.
U 1/2"
V 1"

Shipping Info:

Ship weight (kg) 8.1
Ship height (cm)12.7
Ship length (cm)20.32
Ship width (cm)15.24

Documentation:

Datasheet

Product Variants

ProductModelOutput SpeedInput Dia.Output TorqueOutput HpMax. Input HpOutputPaint/coatingInput Hp @ 1750 RpmPrice
GROVE GEAR GR8130075.00 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4ANL GR8130075.00175 RPM5/8"2630.729 hp0.823 hpLeftBlue0.823 hp€822.82
GROVE GEAR GR8130077.00 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Right Angle Cast Iron | AX4BBW GR8130077.0087.5 RPM5/8"3200.445 hp0.551 hpLeftBlue0.551 hp€745.38
GROVE GEAR GR8130005.00 Worm Reducer, 20:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4MFU GR8130005.0087 RPM1/2"320 lbs.-in.89/200 hp0.551 hpLeftBlue0.551 hp-
RFQ
GROVE GEAR GR8135568.00 Quill Input Worm Gear Reducer | AX4NJH GR8135568.00116.7 RPM-292 lbs.-in.0.541 hp-RightBlue-€1,155.72
GROVE GEAR GR8130089.00 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4NPC GR8130089.0087.5 RPM5/8"3200.445 hp0.551 hpRightBlue0.551 hp€822.82
GROVE GEAR GR8130079.00 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4ULL GR8130079.0058.3 RPM5/8"3140.29 hp0.395 hpLeftBlue-€822.82
GROVE GEAR GR8130043.00 Worm Reducer, 30:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AX6DPB GR8130043.0058 RPM1/2"314 lbs.-in.29/100 hp79/200 hpLeftBlue79/200 hp€1,002.19
