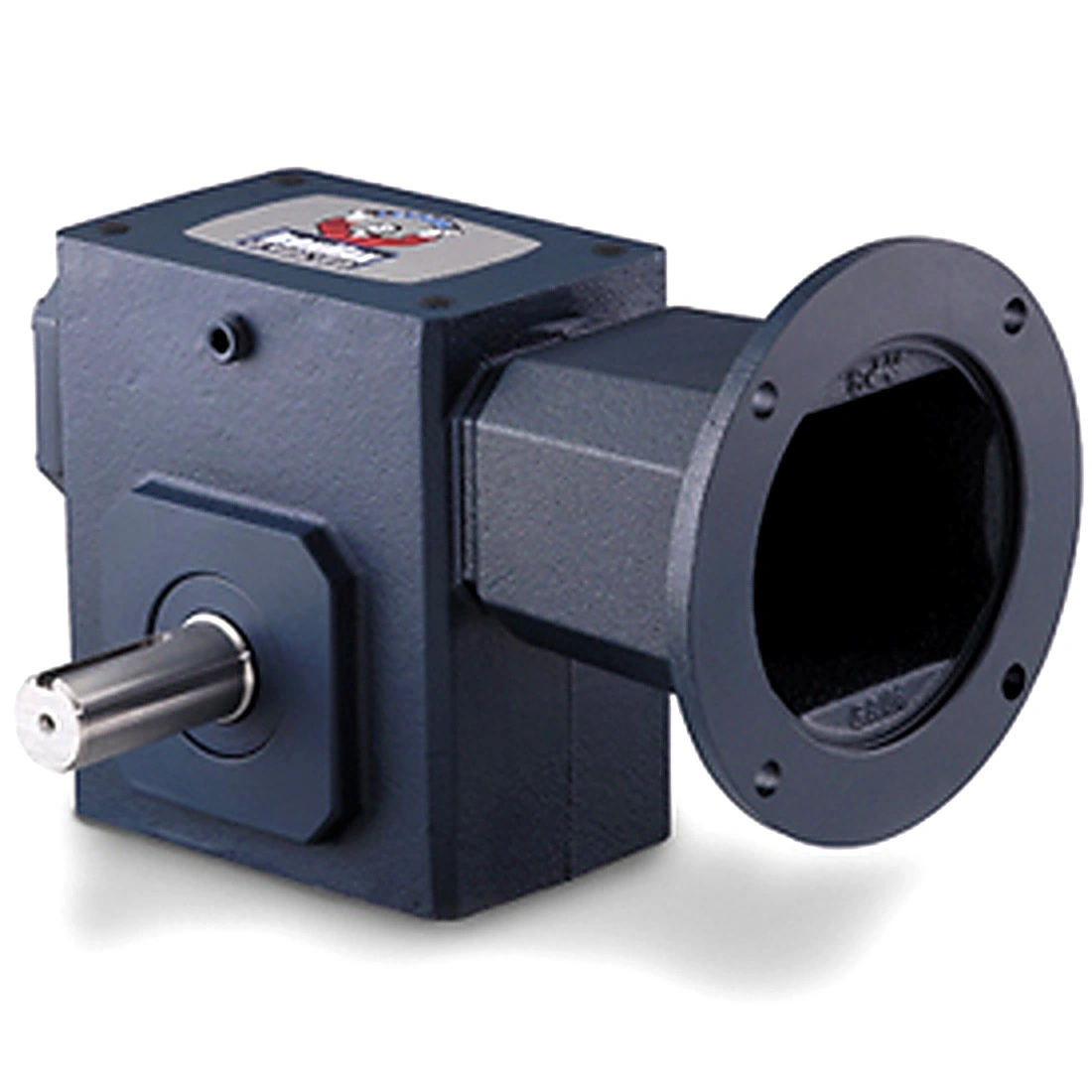

GROVE GEAR GR8130115.00 Reducer, 3-Piece Coupled Input Output Shaft Left Worm Gear | AY4TET GR-BM813-30-L-48

GROVE GEAR GR8130115.00 GR-BM813-30-L-48 Right Angle Gear Reducer, 30 to 1 Ratio, 0.625 Inch Left Output Shaft, 48C NEMA Input, 58 RPM Output

Item: AY4TETModel: GR8130115.00Cross Ref: GR-BM813-30-L-48
Check Availability
In Stock

Get it by Tuesday, Sep 1

€562.28 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 2.82
Aj 3.75
Ak 3
Application General Purpose
Assembly BM-L
B 3.8
Bd 4.36
Be 0.38"
Bf 0.28
C 4.66"
Center Distance 1.33"
D 1.72
F 2
Frame 48
G 1
Gear Type Worm
H-tap Size 5/16"-18
H-tap Type UNC
Housing Material Cast Iron
I 2.61"
Input Dia. 1/2"
Input Hp @ 1750 Rpm 79/200 hp
Input Keyway 1/8" x 1"
Input Keyway Size 1/8" x 1"
Input Speed 1750
Input Style Flexible Coupling Input
J 3 1/4"
K 1.63"
L 3.82"
Lm 5.63
Max. Input Hp @ 1750 1/3 hp
Motor Frame Size 48
Mount Footprint 2 x 3.25
Mount Style BM
N 4
Nema Input Mounting 48C
No. Of Gear Reductions Single
O 2 4/25"
Output Config H1 Left
Output Dia. 5/8"
Output Key 3/16 x 1.5
Output Key Size 3/16" x 1.5"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia. 0.625
Output Shaft Direction Left
Output Shaft Thrust Rating 1144
Output Speed 58 , 58 RPM
Output Speed @ 1750 Rpm Input 58
Output Torque 314 lbs.-in.
Output Torque Rating (in-lb) 314 lbs.-in.
Overhung Load Rating 700 lbs.
Product Datasheet grove-gear-gr8130084-00.pdf
Product Line GR Series - Ironman Worm Gear Reducers
Product Type Right Angle
Ratio 301
Reducer Worm - Right Angle
Reduction Ratio 30
Series GR , GR Series
Series Code Gr
Series Size 813
Service Factor 1
Shaft Center Distance 1.33
Shaft Center Height 1.72
Shaft Seal Material Viton
T 0.625
Tap Depth 1/2"
Tap Size 5/16"-18
Thread Type Coarse
Torque (lb-in)@1750rpm 314 lbs.-in.
U 1/2"

Shipping Info:

Ship weight (kg) 9.9
Ship height (cm)12.7
Ship length (cm)20.32
Ship width (cm)15.24

Documentation:

Datasheet

Product Variants

ProductModelOutput SpeedInput Dia.Output TorqueOutput HpMax. Input HpOutputPaint/coatingInput Hp @ 1750 RpmPrice
GROVE GEAR GR8130075.00 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4ANL GR8130075.00175 RPM5/8"2630.729 hp0.823 hpLeftBlue0.823 hp€822.82
GROVE GEAR GR8130077.00 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Right Angle Cast Iron | AX4BBW GR8130077.0087.5 RPM5/8"3200.445 hp0.551 hpLeftBlue0.551 hp€745.38
GROVE GEAR GR8130005.00 Worm Reducer, 20:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4MFU GR8130005.0087 RPM1/2"320 lbs.-in.89/200 hp0.551 hpLeftBlue0.551 hp-
RFQ
GROVE GEAR GR8135568.00 Quill Input Worm Gear Reducer | AX4NJH GR8135568.00116.7 RPM-292 lbs.-in.0.541 hp-RightBlue-€1,155.72
GROVE GEAR GR8130089.00 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4NPC GR8130089.0087.5 RPM5/8"3200.445 hp0.551 hpRightBlue0.551 hp€822.82
GROVE GEAR GR8130079.00 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron | AX4ULL GR8130079.0058.3 RPM5/8"3140.29 hp0.395 hpLeftBlue-€822.82
GROVE GEAR GR8130043.00 Worm Reducer, 30:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AX6DPB GR8130043.0058 RPM1/2"314 lbs.-in.29/100 hp79/200 hpLeftBlue79/200 hp€1,002.19
