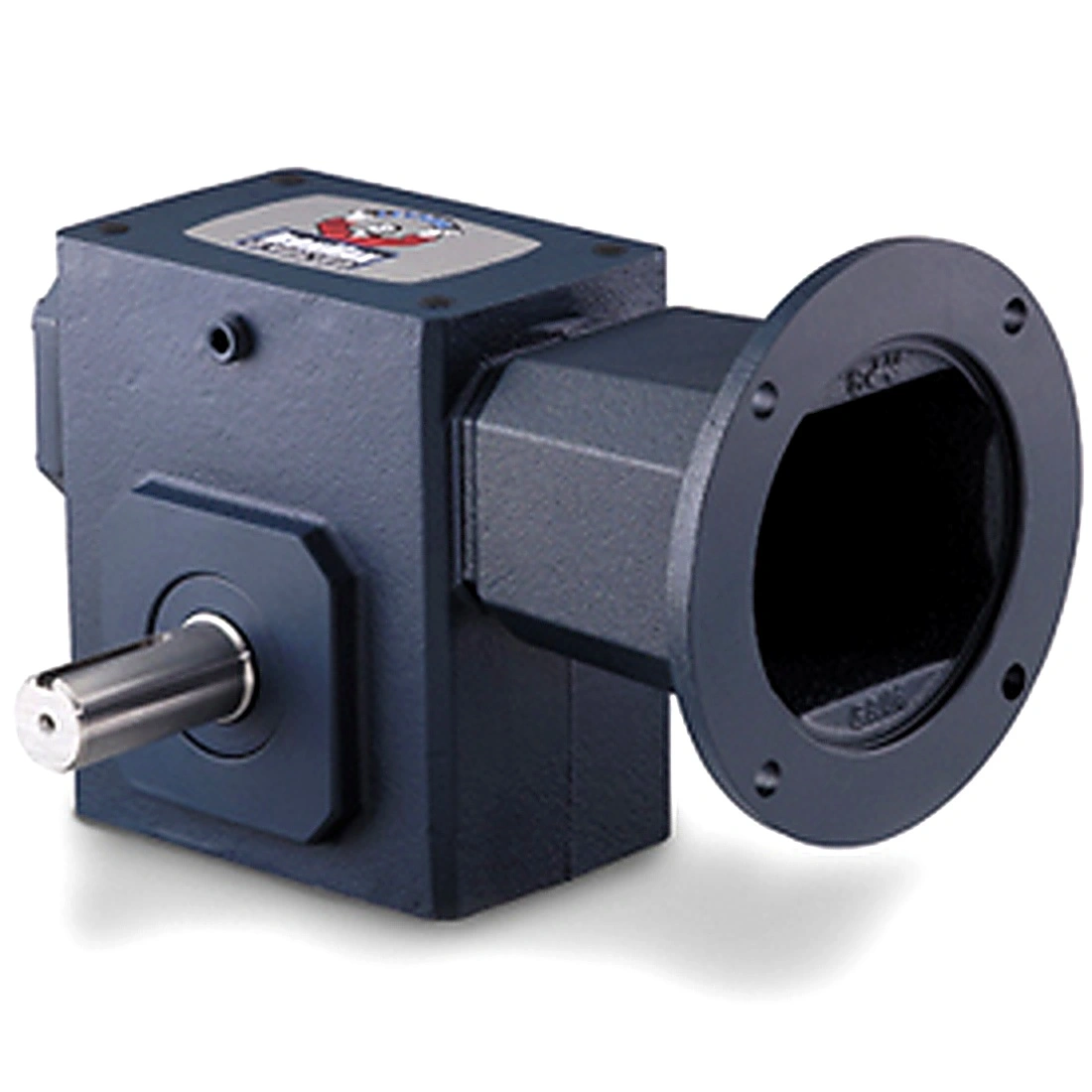

GROVE GEAR GR8130114.00 GR-BM813-25-L-48 Right Angle Gear Reducer, 25 to 1 Ratio, 0.625 Inch Left Output Shaft, 48C NEMA Input, 70 RPM Output
Get it by Tuesday, Aug 18
€562.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| A | 2.82 |
| Aj | 3.75 |
| Ak | 3 |
| Application | General Purpose |
| Assembly | BM-L |
| B | 3.8 |
| Bd | 4.36 |
| Be | 0.38" |
| Bf | 0.28 |
| C | 4.66" |
| Center Distance | 1.33" |
| D | 1.72 |
| F | 2 |
| Frame | 48 |
| G | 1 |
| Gear Type | Worm |
| H-tap Size | 5/16"-18 |
| H-tap Type | UNC |
| Housing Material | Cast Iron |
| I | 2.61" |
| Input Dia. | 1/2" |
| Input Hp @ 1750 Rpm | 89/200 hp |
| Input Keyway | 1/8" x 1" |
| Input Keyway Size | 1/8" x 1" |
| Input Speed | 1750 , 1750 RPM |
| Input Style | Flexible Coupling Input |
| J | 3 1/4" |
| K | 1.63" |
| L | 3.82" |
| Lm | 5.63 |
| Max. Input Hp @ 1750 | 1/3 hp |
| Motor Frame Size | 48 |
| Mount Footprint | 2 x 3.25 |
| Mount Style | BM |
| N | 4 |
| Nema Input Mounting | 48C |
| No. Of Gear Reductions | 1 , Single |
| O | 2 4/25" |
| Output Config | H1 Left |
| Output Dia. | 5/8" |
| Output Key | 3/16 x 1.5 |
| Output Key Size | 3/16" x 1.5" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia. | 0.625 |
| Output Shaft Direction | Left |
| Output Shaft Thrust Rating | 1144 |
| Output Speed | 70 , 70 RPM |
| Output Speed @ 1750 Rpm Input | 70 |
| Output Torque | 309 lbs.-in. |
| Output Torque Rating (in-lb) | 309 lbs.-in. |
| Overhung Load Rating | 700 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Product Type | Right Angle |
| Ratio | 251 |
| Reducer | Worm - Right Angle |
| Reduction Ratio | 25 |
| Series | GR , GR Series |
| Series Code | Gr |
| Series Size | 813 |
| Service Factor | 1 |
| Shaft Center Distance | 1.33 |
| Shaft Center Height | 1.72 |
| Shaft Seal Material | Viton |
| T | 0.625 |
| Tap Depth | 1/2" |
| Tap Size | 5/16"-18 |
| Thread Type | Coarse |
| Torque (lb-in)@1750rpm | 309 lbs.-in. |
| U | 1/2" |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 15.24 |
Product Variants
| Model | Output Speed | Output Torque | Input Dia. | Output Hp | Max. Input Hp | No. Of Gear Reductions | Output Shaft Direction | Output Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GR8130075.00 | 175 RPM | 263 | 5/8" | 0.729 hp | 0.823 hp | Single | Left | - | €822.82 | |
| GR8130077.00 | 87.5 RPM | 320 | 5/8" | 0.445 hp | 0.551 hp | Single | Left | - | €745.38 | |
| GR8130005.00 | 87 RPM | 320 lbs.-in. | 1/2" | 89/200 hp | 0.551 hp | 1 | Left | Solid Shaft | - | RFQ
|
| GR8135568.00 | 116.7 RPM | 292 lbs.-in. | - | 0.541 hp | - | - | - | - | €1,155.72 | |
| GR8130089.00 | 87.5 RPM | 320 | 5/8" | 0.445 hp | 0.551 hp | Single | Right | - | €822.82 | |
| GR8130079.00 | 58.3 RPM | 314 | 5/8" | 0.29 hp | 79/200 hp | Single | Left | - | €822.82 | |
| GR8130043.00 | 58 RPM | 314 lbs.-in. | 1/2" | 29/100 hp | 79/200 hp | 1 | Left | Solid Shaft | €1,002.19 |
