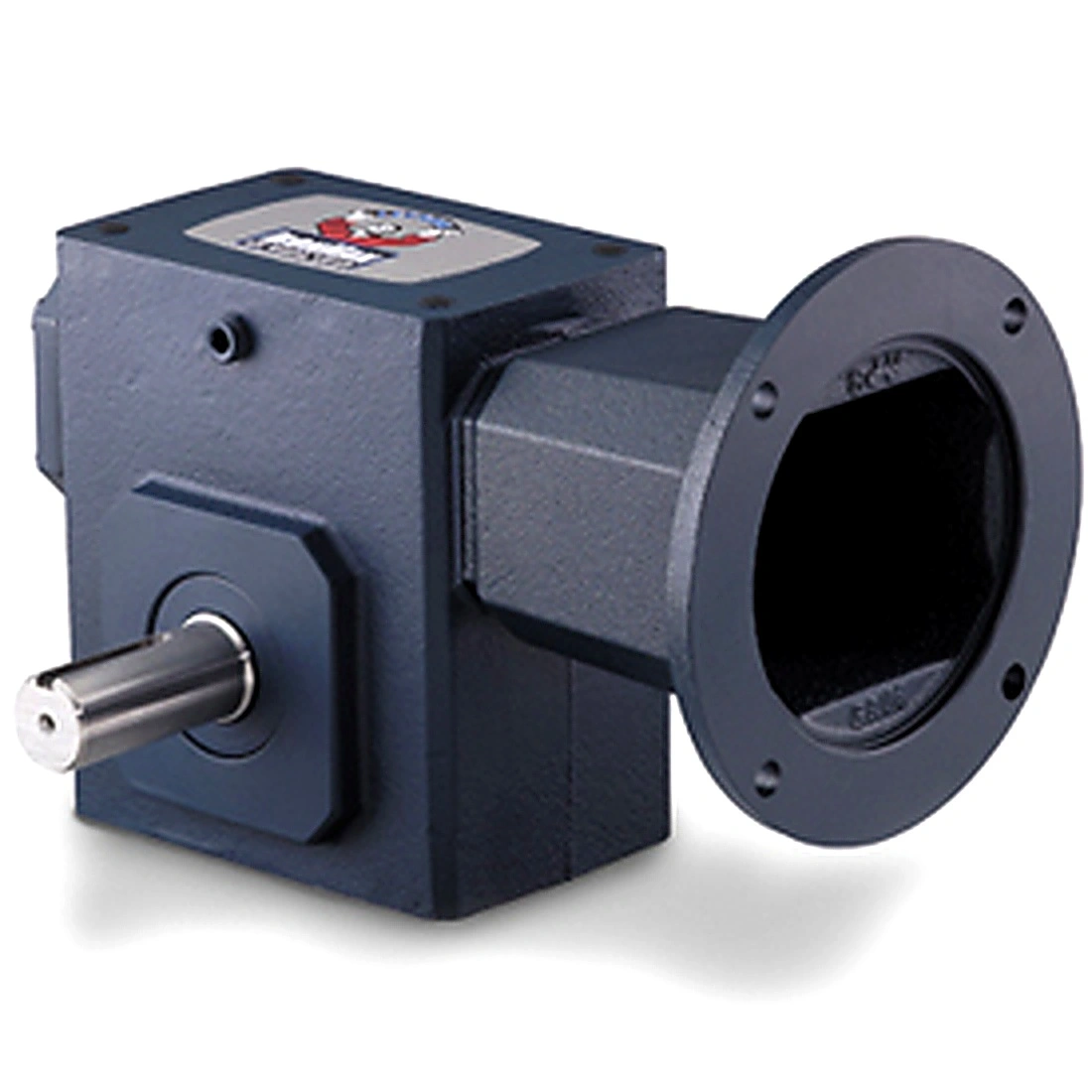

GROVE GEAR GR8130041.00 GR-BM813-20-L-56 Right Angle Gear Reducer, 20 to 1 Reduction Ratio, 87 RPM Output, 320 lb-in Torque, H1 Left Output

Item: AX6QQZModel: GR8130041.00Cross Ref: GR-BM813-20-L-56
Check Availability
In Stock
Reduction Ratio

Get it by Tuesday, Jul 14

€1,002.19 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
Application General Purpose
Assembly BM-L
Center Distance 1.33"
Frame 56C
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Housing Material Cast Iron
Input Bore (c Face) 5/8"
Input Bore Size 5/8"
Input Dia. 1/2"
Input Flange 56C
Input Hp 0.551 hp
Input Hp @ 1750 Rpm 0.551 hp
Input Keyway Size 1/8" x 1"
Input Keyway Size (c Face) 3/16" x 3/32"
Input Quill Dia. 5/8"
Input Speed 1750 RPM
Input Style Flexible Coupling Input
Input Type C-Face Coupled
Key Way Size 3/16" x 3/32"
Length 10.69
Material Cast Iron
Max. Input Hp 0.551 hp , 551/1000 hp
Max. Ohl (output Shaft) 700
Max. Thrust Load (output Shaft) 1144
Motor Hp 1/2 hp
Mounting Type Base
No. Of Gear Reductions 1
Output Left
Output Dia. 5/8"
Output Hp 89/200 hp
Output Key Size 3/16" x 1.5"
Output Shaft Solid Shaft
Output Shaft Dia 0.625
Output Shaft Dia. 5/8"
Output Shaft Direction Left
Output Shaft Orientation L
Output Shaft Thrust Rating 1144
Output Shaft Type Left Handed Shaft
Output Speed 87 RPM
Output Style L
Output Torque 320 lbs.-in.
Output Type Solid Shaft
Overhung Load 700 lbs.
Paint/coating Blue
Product Line GR Series - Ironman Worm Gear Reducers
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Type Single
Series GR Series
Series Style GR-BM-L
Series Type Cast Iron 800 Worm Gear Reducers
Service Factor 1
Shaft Seal Material Viton
Speed 87 RPM
Tap Depth 1/2"
Tap Size 5/16"-18
Thread Type Coarse
Torque (lb-in)@1750rpm 320
Width 9.06

Shipping Info:

Ship weight (kg) 9.9
Ship height (cm)26.67
Ship length (cm)27.15
Ship width (cm)23.01

Product Variants

ProductModelmax. input hpmounting typeoutput torqueinput styleseriesgear typegear ratiocenter distancePrice
GROVE GEAR GR8130042.00 Worm Reducer, 25:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AX8BJM GR-BM813-25-L-56 GR8130042.0089/200 hpBase309 lbs.-in.Flexible Coupling InputGR SeriesWorm-1.33"€1,002.19
GROVE GEAR GR8130120.00 Worm Reducer, 100:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AY3EXR GR-BM813-100-L-48 GR8130120.0021/250 hpBase143 lbs.-in.Flexible Coupling InputGR SeriesWorm-1.33"€1,002.19
GROVE GEAR GR8130040.00 Worm Reducer, 15:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AY3LEV GR-BM813-15-L-56 GR8130040.000.642 hpNo Base-C Face Coupled--15:11.33"€1,002.19
GROVE GEAR GR8130113.00 Worm Reducer, 20:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AY3UFG GR-BM813-20-L-48 GR8130113.000.551 hpBase320 lbs.-in.Flexible Coupling InputGR SeriesWorm-1.33"€1,002.19
GROVE GEAR GR8130037.00 Worm Reducer, 5:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AY7MFC GR-BM813-5-L-56 GR8130037.001 31/125 hpBase209 lbs.-in.Flexible Coupling InputGR SeriesWorm-1.33"€1,002.19
GROVE GEAR GR8130038.00 Worm Reducer, 7.5:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AY7NWL GR-BM813-7.5-L-56 GR8130038.001 1/40 hpBase252 lbs.-in.Flexible Coupling InputGR SeriesWorm-1.33"€1,002.19
GROVE GEAR GR8130117.00 Worm Reducer, 50:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Cast Iron | AY7NWP GR-BM813-50-L-48 GR8130117.0057/200 hpNo Base327 lbs.-in.Flexible Coupling InputGR SeriesWorm-1.33"€1,002.19
