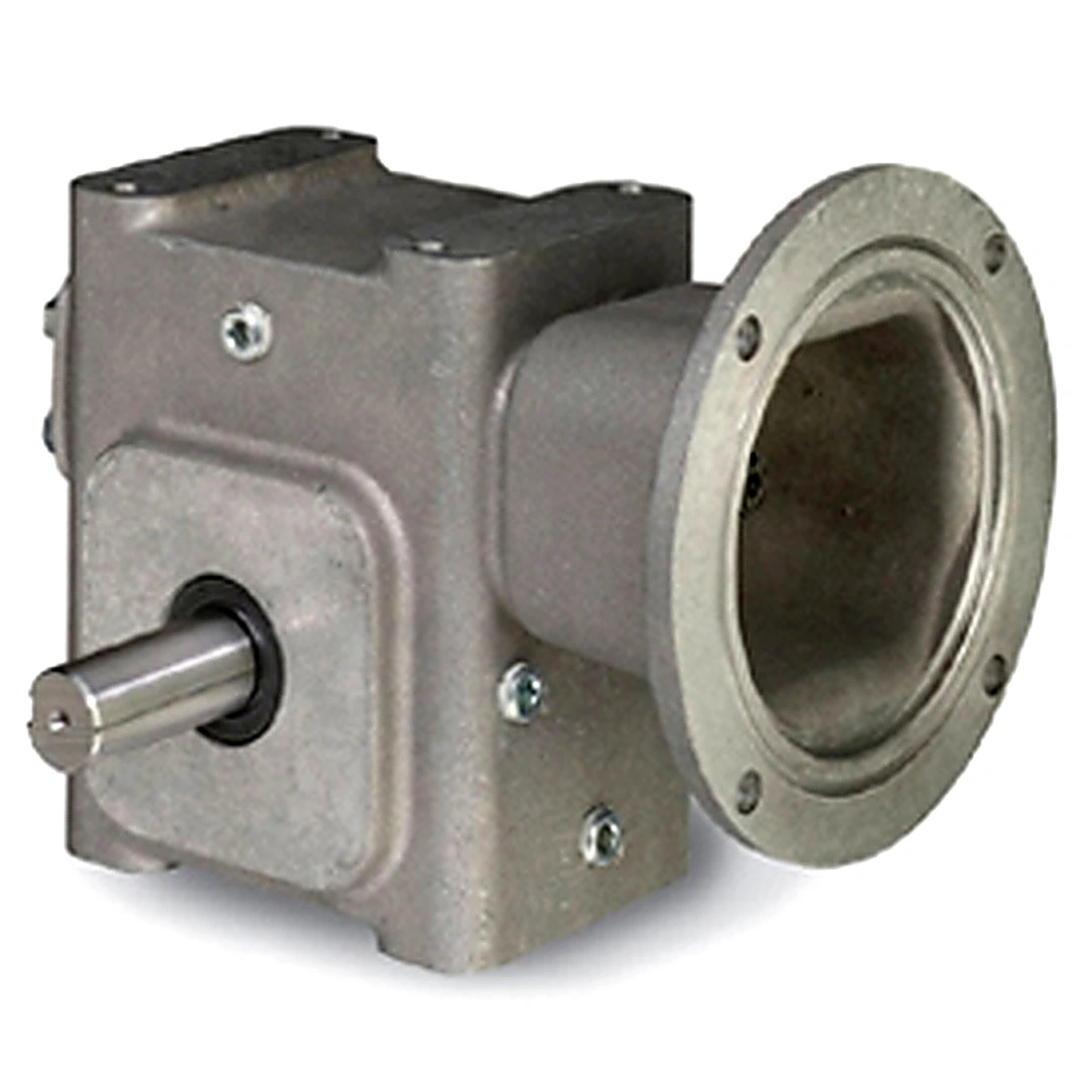

GROVE GEAR EL8520175.00 EL-BM852-80-L-180 Right Angle Gear Reducer, 80 to 1 Reduction Ratio, 21 RPM Output, 5478 lb-in Torque, Aluminum
Get it by Tuesday, Jul 7
€10,463.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | Aluminum |
| Assembly | BM-L |
| Center Distance | 5 1/4" |
| Frame | 180TC |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Aluminum |
| Input Bore (c Face) | 1 1/8" |
| Input Bore Size | 1 1/8" |
| Input Dia. | 1 1/4" |
| Input Hp | 2.906 hp |
| Input Hp @ 1750 Rpm | 2.906 hp |
| Input Keyway Size | 1/4" x 3" |
| Input Keyway Size (c Face) | 1/4" x 1/8" |
| Input Speed | 1750 RPM |
| Input Style | Flexible Coupling Input |
| Input Type | C-Face Coupled |
| Material | Aluminum |
| Max. Input Hp | 2 453/500 hp , 2.906 hp |
| Max. Ohl (output Shaft) | 3590 |
| Max. Thrust Load (output Shaft) | 3412 |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output | Left |
| Output Dia. | 2" |
| Output Hp | 1.902 hp |
| Output Key Size | 1/2" x 2.5" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia. | 2" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Thrust Rating | 3412 |
| Output Shaft Type | Left Handed Shaft |
| Output Speed | 21 RPM |
| Output Style | L |
| Output Torque | 5478 lbs.-in. |
| Output Type | Solid Shaft |
| Overhung Load | 3590 lbs. |
| Paint/coating | Aluminum |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-BM-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 21.9 RPM |
| Tap Depth | 1 11/25" |
| Tap Size | 3/4"-10 |
| Torque (lb-in)@1750rpm | 5478 |
Shipping Info:
| Ship weight (kg) | 75.6 |
| Ship height (cm) | 50.8 |
| Ship length (cm) | 101.6 |
| Ship width (cm) | 93.98 |
Product Variants
| Model | max. input hp | output torque | mounting type | center distance | output | output style | output shaft | assembly | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EL8520029.00 | 23 3/20 hp | 7827 lbs.-in. | Base | 5 1/4" | - | R | Solid Shaft | BM-R | €10,463.37 | |
| EL8520581.48 | - | - | - | 5.2" | Hollow | - | - | - | €5,234.27 | RFQ
|
| EL8520519.48 | - | - | - | 5.2" | Hollow | - | - | - | €5,234.27 | RFQ
|
| EL8520545.35 | - | - | - | 5.2" | Hollow | - | - | - | €5,234.27 | RFQ
|
| EL8520538.51 | - | - | - | 5.2" | Hollow | - | - | - | €5,234.27 | RFQ
|
| EL8520539.51 | - | - | - | 5.2" | Hollow | - | - | - | €5,234.27 | RFQ
|
| EL8520524.39 | - | - | - | 5.2" | Hollow | - | - | - | €5,234.27 | RFQ
|
