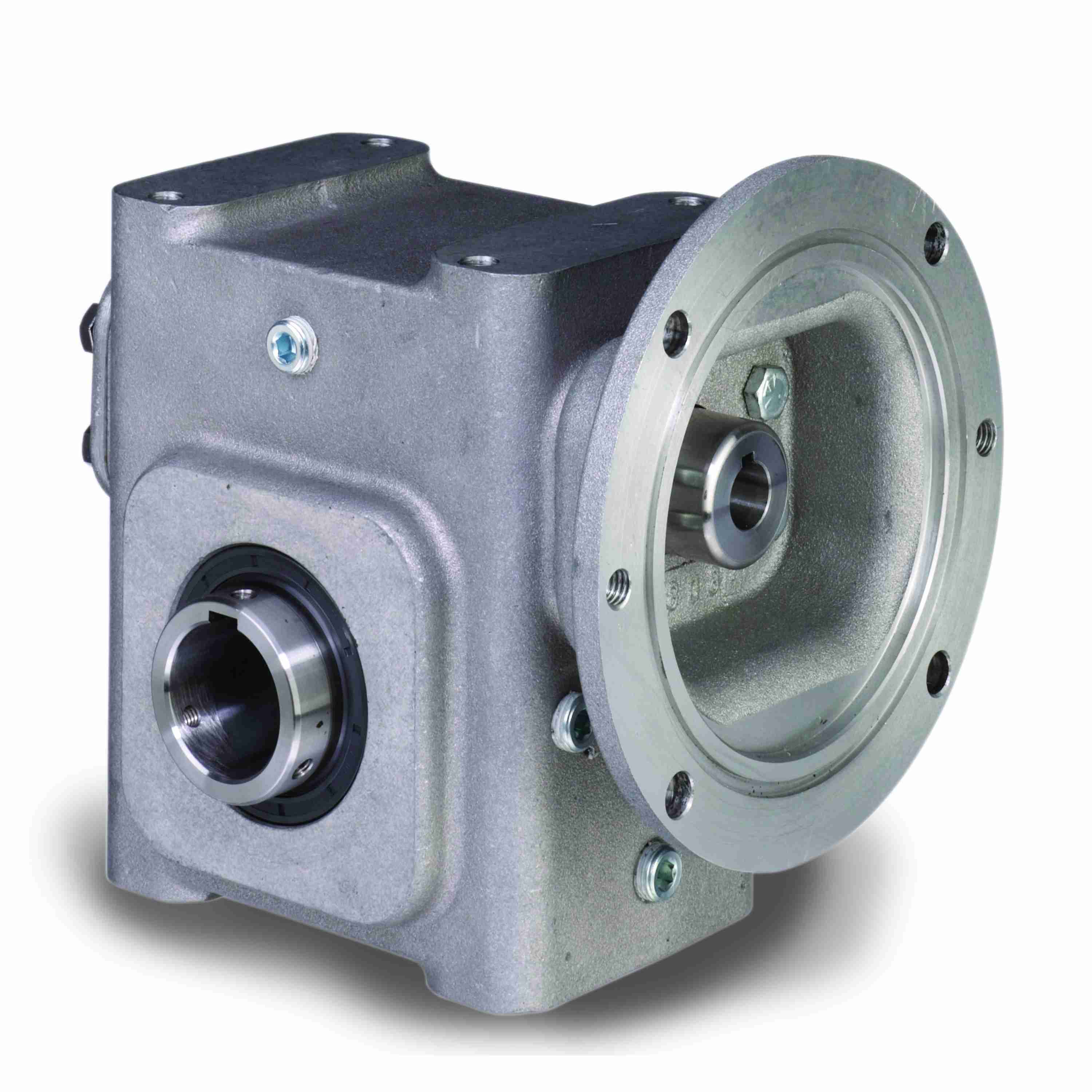

GROVE GEAR EL8420592.24 EL-HMQ842-40-H1-140-24 Worm Reducer, 40:1 Ratio, 0.875 Inch I.D, 1.5 Inch O.D, Aluminum
Get it by Friday, Aug 28
€3,248.11 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Aa | 14.69 |
| Ac | 1.19 |
| Ae1 | 0.63 |
| Af | 0.69 |
| Ag | 8.5 |
| Aj | 5.88 |
| Assembly | HMQ-H1 |
| B | 9.63 |
| Be | 0.38" |
| Bf | 0.41 |
| Bore Code | 24 |
| C | 11.69" |
| Center Distance | 4 1/4" |
| F | 3.75 |
| Frame | 140TC |
| G | 1.88 |
| Gear Type | Worm |
| Housing Material | Aluminum |
| I | 6.15" |
| Input Bore (c Face) | 7/8" |
| Input Dia. | 7/8" |
| Input Hp | 5.262 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 7/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Key Way Size | 3/16" x 3/32" |
| Lq | 6.45" |
| Material | Aluminum |
| Max. Input Hp | 5.262 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output Dia. | 1 1/2" |
| Output Hp | 4.274 hp |
| Output Key Size | 3/8" x 3" |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Speed | 43 RPM |
| Output Style | H1 |
| Output Torque | 6156 lbs.-in. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 6 1/25" |
| Series | EL Series |
| Series Style | EL-HMQ-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
Shipping Info:
| Ship weight (kg) | 44.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Output Dia. | Input Dia. | Output Hp | Output Speed | Max. Input Hp | Output Torque | Output Key Size | Input Keyway Size (c Face) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EL8420611.35 | 2.188" | 1 3/8" | 14 hp | 175 RPM | 14 93/100 hp | 5042 lbs.-in. | 1/2" x 3.38" | 5/16" x 5/32" | €3,711.21 | |
| EL8420584.35 | 2.188" | 5/8" | 99/125 hp | 17 RPM | 1.201 hp | 2852 lbs.-in. | 1/2" x 3.38" | 3/16" x 3/32" | €3,711.21 | |
| EL8420615.35 | 2.188" | 1 3/8" | 5.517 hp | 58 RPM | 6.481 hp | 5960 lbs.-in. | 1/2" x 3.38" | 5/16" x 5/32" | €3,711.21 | |
| EL8420586.35 | 2.188" | 7/8" | 15 9/25 hp | 233 RPM | 16 27/100 hp | 4148 lbs.-in. | 1/2" x 3.38" | 3/16" x 3/32" | €3,711.21 | |
| EL8420625.35 | 2.188" | 1 5/8" | 8.458 hp | 87 RPM | 9.462 hp | 6092 lbs.-in. | 1/2" x 3.38" | 3/8" x 3/16" | €3,711.21 | |
| EL8420632.35 | 2.188" | 1 5/8" | 99/125 hp | 17 RPM | 1.201 hp | 2852 lbs.-in. | 1/2" x 3.38" | 3/8" x 3/16" | €3,711.21 | |
| EL8420609.35 | 2.188" | 1 3/8" | 17 1/4 hp | 350 RPM | 18 2/25 hp | 3209 lbs.-in. | 1/2" x 3.38" | 5/16" x 5/32" | €3,711.21 |
