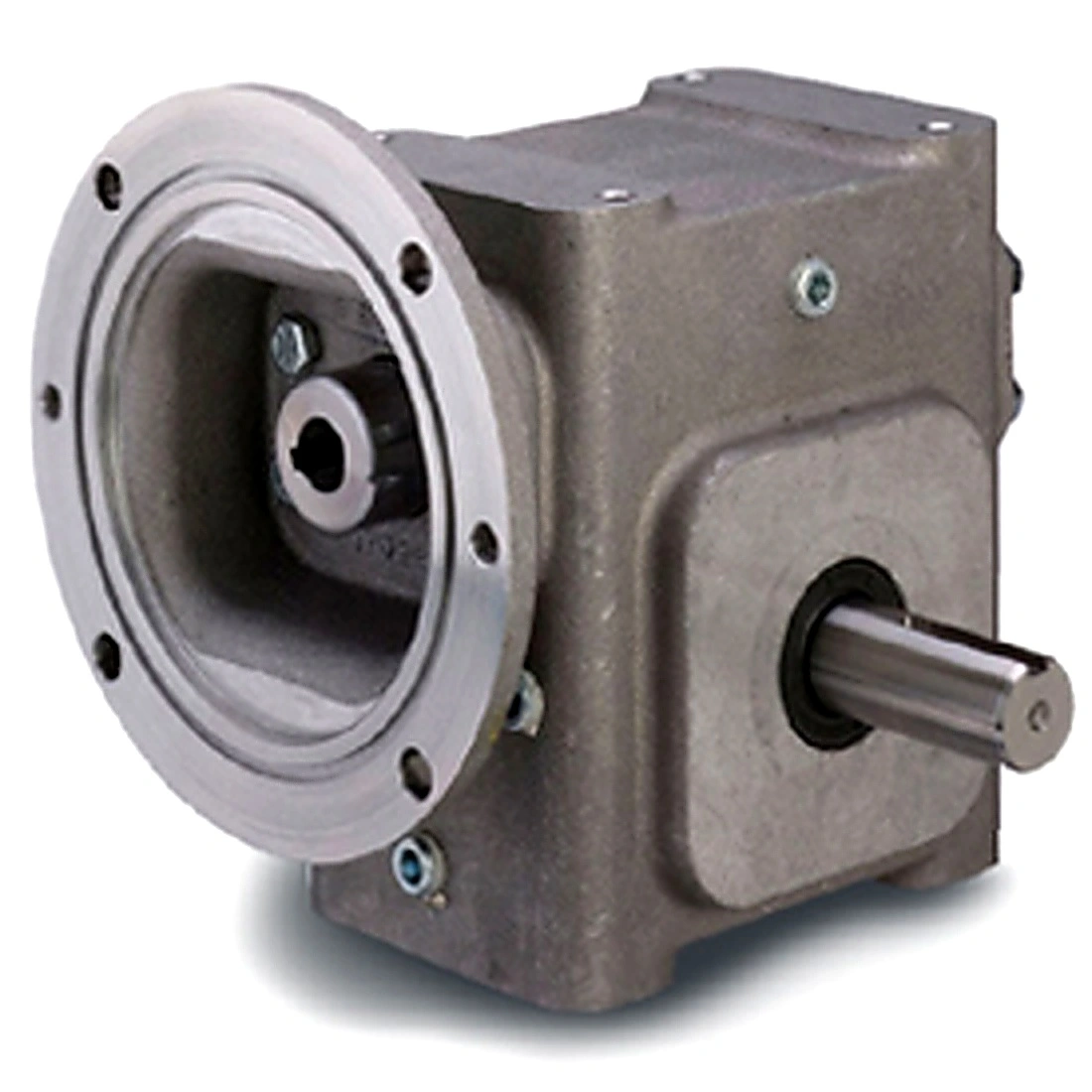

GROVE GEAR EL8420352.00 EL-BMQ842-15-D-210 Right Angle Gear Reducer, 15 to 1 Reduction Ratio, 116 RPM Output, 5508 lb-in Torque, Aluminum
Get it by Tuesday, Jul 14
€5,284.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 6.13 |
| Aj | 7.25 |
| Ak | 8.5 |
| Application | Aluminum |
| Assembly | BMQ-D |
| B | 9.63 |
| Be1 | 1/2" |
| Bf | 0.53 |
| C | 11.69" |
| Center Distance | 4 1/4" |
| F | 3.75 |
| Family Name | Aluminum Housing Material Worm Gear Reducers |
| Frame | 210TC |
| G | 1.88 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Aluminum |
| I | 6.15" |
| Input Bore (c Face) | 1 3/8" |
| Input Bore Size | 1 3/8" |
| Input Dia. | 1 3/8" |
| Input Hp | 11 13/100 hp |
| Input Hp @ 1750 Rpm | 11 13/100 hp |
| Input Keyway Size (c Face) | 5/16" x 5/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| J | 7" |
| K | 3 1/2" |
| Lq1 | 6.45" |
| Material | Aluminum |
| Max. Input Hp | 11 13/100 hp |
| Max. Ohl (output Shaft) | 3190 |
| Max. Thrust Load (output Shaft) | 2319 |
| Mounting Type | Base |
| N | 8.12 |
| No. Of Gear Reductions | 1 |
| O | 4 1/2" |
| Output Dia. | 1 3/4" |
| Output Hp | 10 1/5 hp |
| Output Key Size | 3/8" x 3" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | D |
| Output Shaft Dia | 1.75 |
| Output Shaft Dia. | 1 7/8" |
| Output Shaft Direction | Double |
| Output Shaft Orientation | LR |
| Output Shaft Thrust Rating | 2319 |
| Output Shaft Type | Double Shaft |
| Output Speed | 116 RPM |
| Output Style | D |
| Output Torque | 5508 lbs.-in. |
| Output Type | Solid Shaft |
| Overhung Load | 3190 lbs. |
| Overhung Load Rating | 3190 lbs. |
| Paint/coating | Aluminum |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 6 1/25" |
| Series | EL Series |
| Series Style | EL-BMQ-D |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 116 RPM |
| T | 1.75 |
| Tap Depth | 1.19" |
| Tap Size | 5/8"-11 |
| Torque (lb-in)@1750rpm | 5508 |
Shipping Info:
| Ship weight (kg) | 43.2 |
| Ship height (cm) | 44.45 |
| Ship length (cm) | 101.6 |
| Ship width (cm) | 93.98 |
Product Variants
| Model | output torque | max. input hp | mounting type | center distance | output | output shaft assembly code | output shaft | assembly | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EL8420181.00 | 3209 lbs.-in. | 18 2/25 hp | Base | 4 1/4" | - | L | Shaft | BM-L | €5,106.13 | |
| EL8425063.00 | 5989 lbs.-in. | - | - | 4.2" | Right | - | - | - | €2,137.81 | RFQ
|
| EL8420599.31 | - | - | - | 4.2" | Hollow | - | - | - | €2,576.19 | RFQ
|
| EL8420523.30 | - | - | - | 4.2" | Hollow | - | - | - | €2,576.19 | RFQ
|
| EL8420516.27 | - | - | - | 4.2" | Hollow | - | - | - | €2,576.19 | RFQ
|
| EL8420517.24 | - | - | - | 4.2" | Hollow | - | - | - | €2,576.19 | RFQ
|
| EL8420543.26 | - | - | - | 4.2" | Hollow | - | - | - | €2,576.19 | RFQ
|
