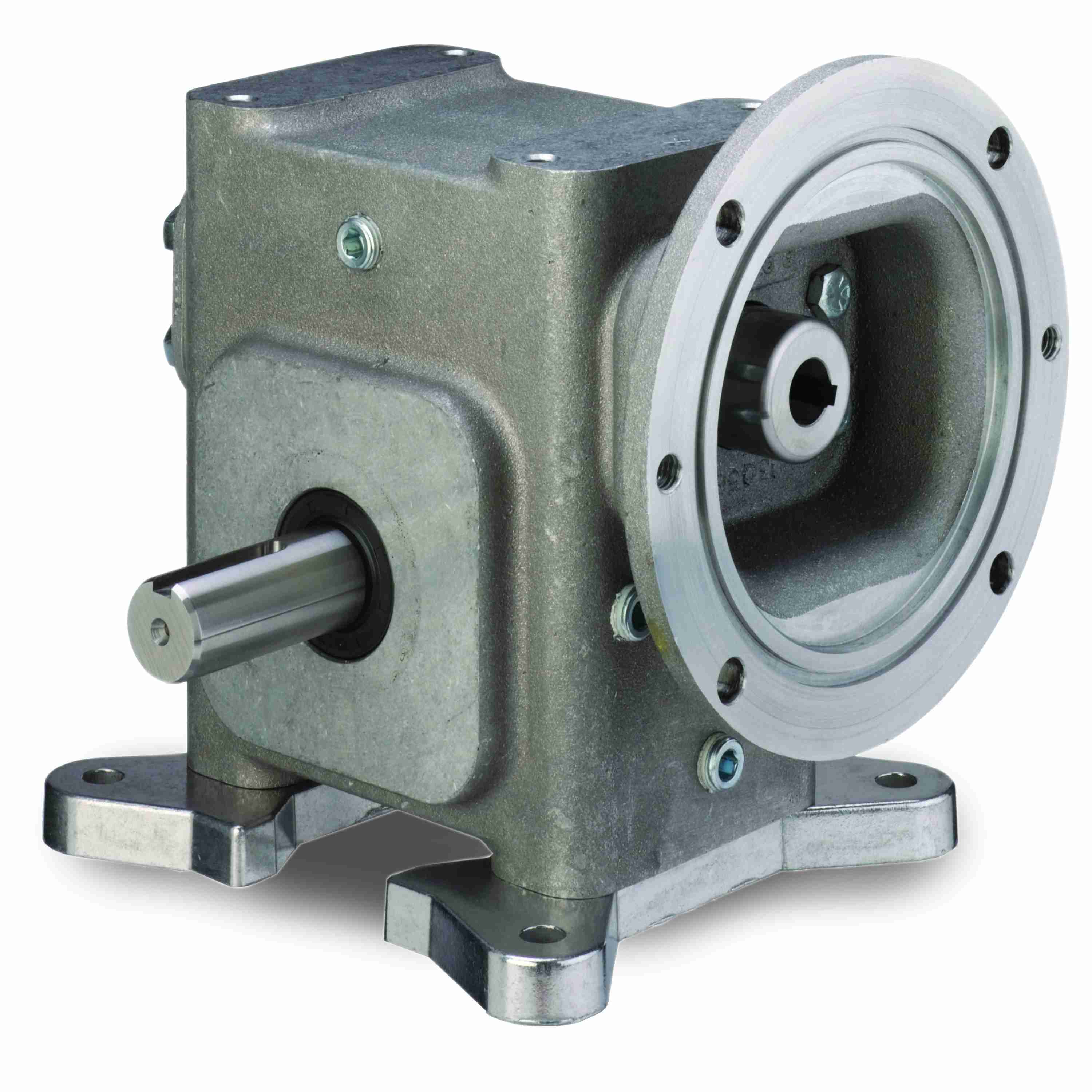

GROVE GEAR EL8420348.00 EL-BMQ842-100-R-210 Worm Reducer, 100:1 Ratio, 1.375 Inch I.D, 1.75 Inch O.D, Aluminum
Get it by Tuesday, Aug 18
€5,106.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 6.13 |
| Aj | 7.25 |
| Ak | 8.5 |
| Assembly | BMQ-R |
| B | 9.63 |
| Be1 | 1/2" |
| Bf | 0.53 |
| C | 11.69" |
| Center Distance | 4 1/4" |
| F | 3.75 |
| Frame | 210TC |
| G | 1.88 |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Aluminum |
| I | 6.15" |
| Input Bore (c Face) | 1 3/8" |
| Input Bore Size | 1 3/8" |
| Input Dia. | 1 3/8" |
| Input Hp | 1.201 hp |
| Input Hp @ 1750 Rpm | 1.201 hp |
| Input Keyway Size (c Face) | 5/16" x 5/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| J | 7" |
| K | 3 1/2" |
| Lq1 | 6.45" |
| Material | Aluminum |
| Max. Input Hp | 1 201/1000 hp , 1.201 hp |
| Max. Ohl (output Shaft) | 3750 |
| Max. Thrust Load (output Shaft) | 2533 |
| Mounting Type | Base |
| N | 8.12 |
| No. Of Gear Reductions | 1 |
| O | 4 1/2" |
| Output | Right |
| Output Dia. | 1 3/4" |
| Output Hp | 99/125 hp |
| Output Key Size | 3/8" x 3" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia. | 1 7/8" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Thrust Rating | 2533 |
| Output Shaft Type | Right Handed Shaft |
| Output Speed | 17 RPM |
| Output Style | R |
| Output Torque | 2852 lbs.-in. |
| Output Type | Solid Shaft |
| Overhung Load Rating | 3750 lbs. |
| Paint/coating | Aluminum |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 6 1/25" |
| Series | EL Series |
| Series Style | EL-BMQ-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 17 RPM |
| T | 1.75 |
| Tap Depth | 1.19" |
| Tap Size | 5/8"-11 |
Shipping Info:
| Ship weight (kg) | 43.2 |
| Ship height (cm) | 44.45 |
| Ship length (cm) | 101.6 |
| Ship width (cm) | 93.98 |
Product Variants
| Model | Input Dia. | Output Hp | Output Speed | Output Torque | Max. Input Hp | Output Key Size | Input Bore Size | Input Keyway Size (c Face) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EL8420339.00 | 1 3/8" | 14 hp | 175 RPM | 5042 lbs.-in. | 14 93/100 hp | 3/8" x 3" | 1 3/8" | 5/16" x 5/32" | €5,106.13 | |
| EL8420271.00 | 7/8" | 5.517 hp | 58 RPM | 5960 lbs.-in. | 6.481 hp | 3/8" x 3" | 7/8" | 3/16" x 3/32" | €5,106.13 | |
| EL8420230.00 | 5/8" | 15 9/25 hp | 233 RPM | 4148 lbs.-in. | 16 27/100 hp | 3/8" x 3" | 5/8" | 3/16" x 3/32" | €5,106.13 | |
| EL8420273.00 | 7/8" | 3.426 hp | 35 RPM | 6170 lbs.-in. | 4.389 hp | 3/8" x 3" | 7/8" | 3/16" x 3/32" | €5,106.13 | |
| EL8420275.00 | 7/8" | 1.257 hp | 21 RPM | 3620 lbs.-in. | 1 19/25 hp | 3/8" x 3" | 7/8" | 3/16" x 3/32" | €5,106.13 | |
| EL8420235.00 | 5/8" | 5.517 hp | 58 RPM | 5960 lbs.-in. | 6.481 hp | 3/8" x 3" | 5/8" | 3/16" x 3/32" | €5,106.13 | |
| EL8420239.00 | 5/8" | 1.257 hp | 21 RPM | 3620 lbs.-in. | 1 19/25 hp | 3/8" x 3" | 5/8" | 3/16" x 3/32" | €5,106.13 |
