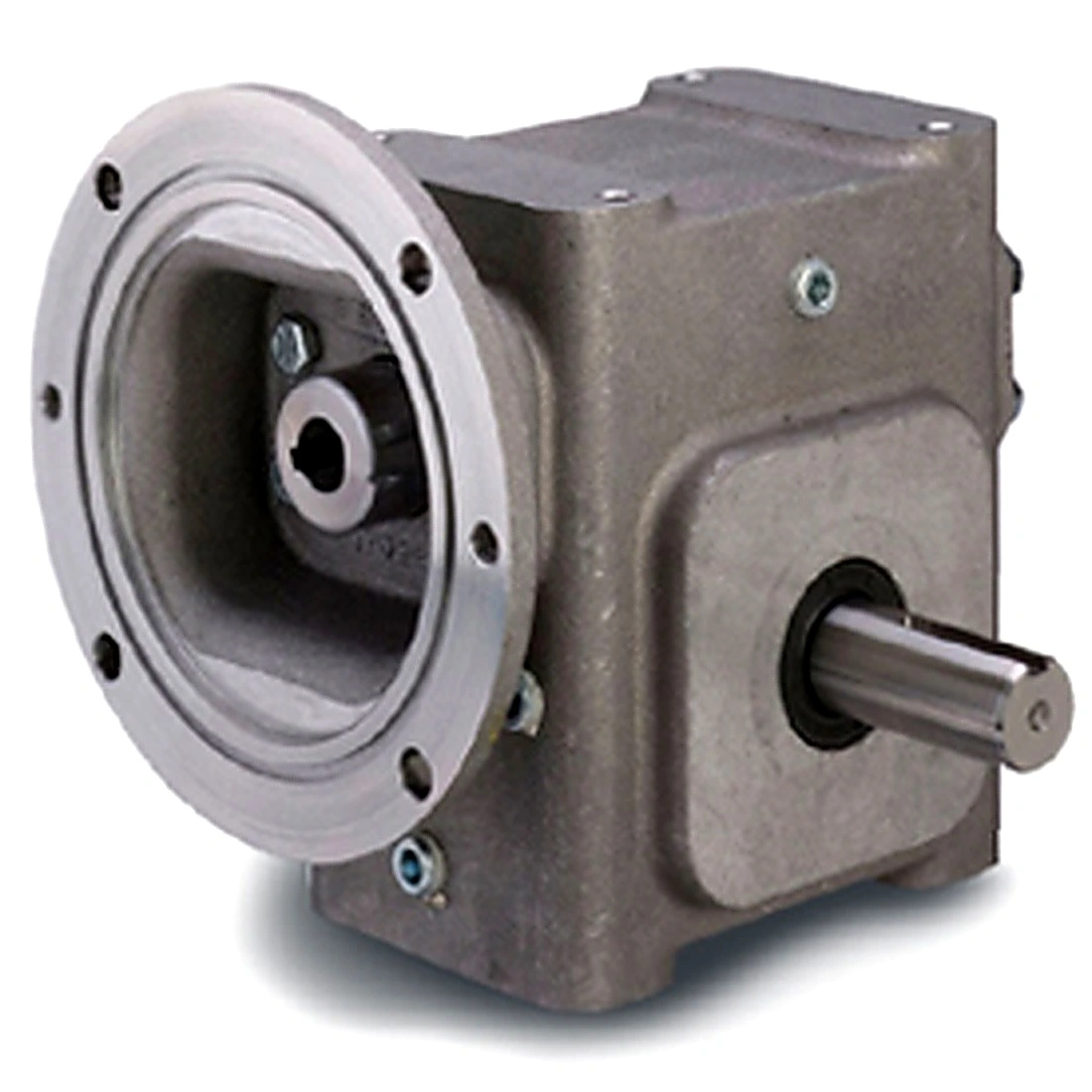

GROVE GEAR EL8320183.00 EL-BMQ832-50-R-180 Right Angle Gear Reducer, 50 to 1 Ratio, 1.625 Inch Right Output Shaft, 182-4TC NEMA Input, 23 RPM Output
Get it by Monday, Aug 17
€1,783.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gear Reducer |
| A | 5.25 |
| Aj | 7.25 |
| Ak | 8.5 |
| Application | Aluminum |
| Assembly | BMQ-R |
| B | 8.11 |
| Bd | 9 |
| Be1 | 1/2" |
| Bf | 0.53 |
| C | 10 1/2" |
| Center Distance | 3 1/4" |
| D | 4 |
| F | 4.13 |
| Frame | 180 |
| G | 2.06 |
| Gear Type | Worm |
| H-tap Size | 13" |
| H-tap Size | 1/2"-13 |
| Housing Material | Aluminum |
| I | 5" |
| Input Bore (c Face) | 1 1/8" , 1.125 |
| Input Hp @ 1750 Rpm | 2.462 hp |
| Input Keyway (c Face) | 1/4 x 1/8 |
| Input Keyway Size (c Face) | 1/4" x 1/8" |
| Input Speed | 1750 , 1750 RPM |
| Input Style | C Face Quill |
| J | 6.63" |
| K | 3.31" |
| Lq1 | 6 4/25" |
| Max. Input Hp @ 1750 | 2 hp |
| Motor Frame Size | 180 |
| Mount Footprint | 4.13 x 6.63 |
| Mount Style | BMQ |
| N | 6.62 |
| Nema Input Mounting | 182-4TC |
| No. Of Gear Reductions | 1 , Single |
| O | 3 3/5" |
| Output Config | H1 Right |
| Output Dia. | 1 5/8" |
| Output Key | 3/8 x 2.25 |
| Output Key Size | 3/8" x 2 1/4" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia. | 1.625 |
| Output Shaft Direction | Right |
| Output Shaft Thrust Rating | 2574 |
| Output Speed | 35 , 35 RPM |
| Output Speed @ 1750 Rpm Input | 23 |
| Output Torque | 3315 lbs.-in. |
| Output Torque Rating (in-lb) | 3315 lbs.-in. |
| Overhung Load Rating | 2170 lbs. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Product Type | Right Angle |
| Ratio | 501 |
| Reducer | Worm - Right Angle |
| Reduction Ratio | 50 |
| Rq | 5.51" |
| Series | EL Series , ZX |
| Series Code | El |
| Series Size | 832 |
| Service Factor | 1 |
| Shaft Center Distance | 3.25 |
| Shaft Center Height | 4 |
| Shaft Seal Material | Viton |
| T | 1.625 |
| Tap Depth | 1" |
| Tap Size | 1/2"-13 |
| Torque (lb-in)@1750rpm | 3315 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 26.04 |
Product Variants
| Product | Model | Output Hp | Output Speed | Output Torque | Output Dia. | Input Dia. | Max. Input Hp | Input Speed | No. Of Gear Reductions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EL8320543.24 | 4 67/125 hp | 87 RPM | 3267 lbs.-in. | 1 1/2" | 7/8" | 5 9/50 hp | 1750 RPM | 1 | €2,512.30 | |
 |
EL8320241.00 | 11 29/100 hp | 350 RPM | 2033 lbs.-in. | 1 5/8" | 7/8" | 11 23/25 hp | 1750 RPM | 1 | €3,482.88 | |
 |
EL8320518.23 | 5.516 hp | 116 RPM | 2980 lbs.-in. | 1.438" | 7/8" | 6.127 hp | 1750 RPM | 1 | €4,204.29 | |
|
EL8320583.23 | 0.695 hp | 21.9 RPM | - | 1.438" | 1 3/8" | 1 3/100 hp | 1750 RPM | 1 | €2,512.30 | |
|
EL8320580.27 | 2.293 hp | 43 RPM | 3303 lbs.-in. | 1.688" | 1 3/8" | 2.926 hp | 1750 RPM | 1 | €2,512.30 | |
|
EL8320602.23 | 3.732 hp | - | 3360 lbs.-in. | - | 1 3/8" | 4 373/1000 hp | - | 1 | €4,262.95 | |
 |
EL8320557.28 | - | - | - | - | - | - | - | - | €1,694.91 | RFQ
|
