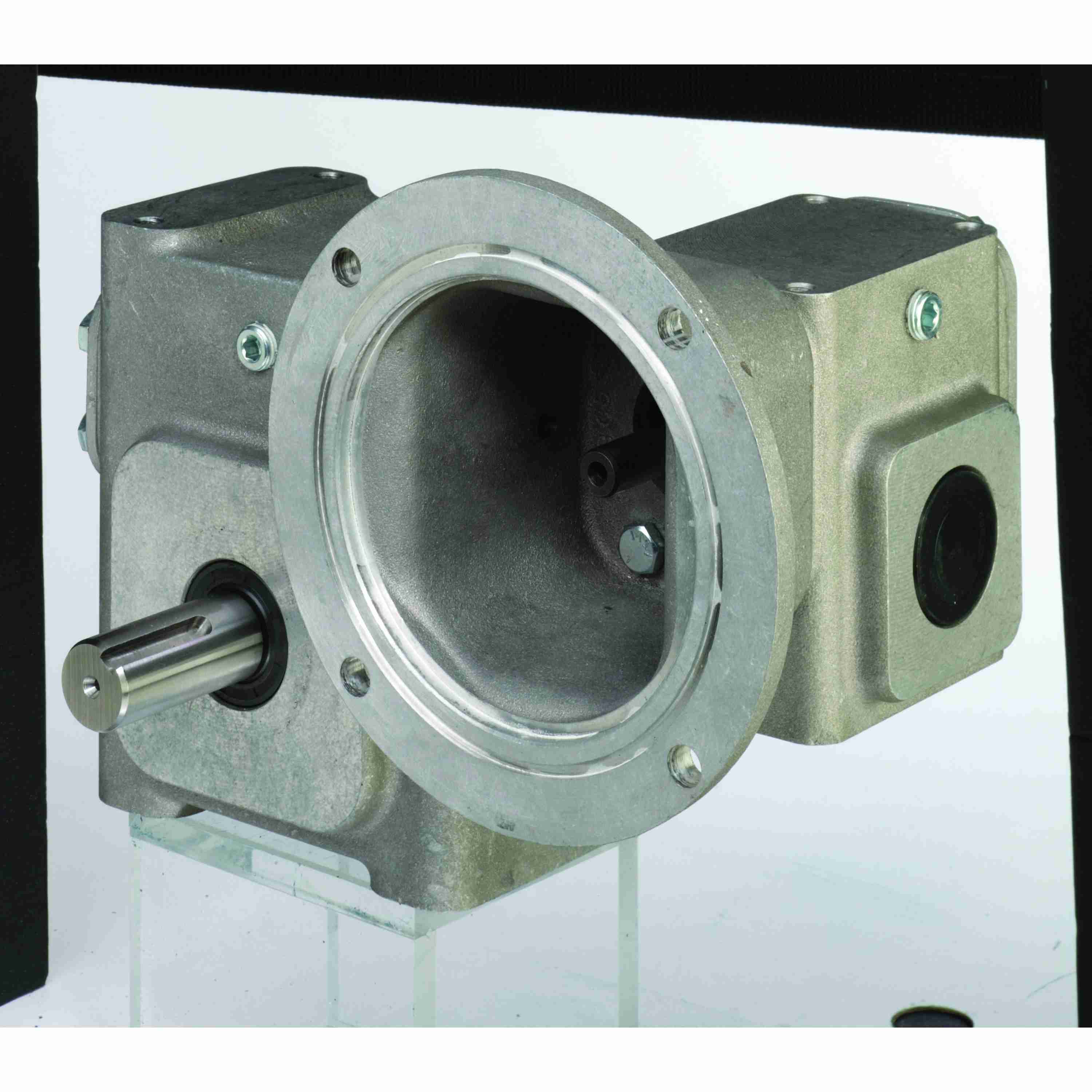

GROVE GEAR EL8262158.00 EL-DM826-750-R5-56 Worm Reducer, 750:1 Ratio, 1.25 Inch O.D, Right Angle Aluminum
Get it by Friday, Jul 17
€1,816.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| A | 4.84 |
| Aj | 5.88 |
| Assembly | DM |
| B | 7.17 |
| Bc | 6.99 |
| Be | 0.38" |
| Bf | 0.41 |
| Bj | 12.39 |
| C | 8.81" |
| C1 | 4.66 |
| Ce | 1.33 |
| Center Distance | 2.63" |
| D1 | 1.72 |
| D2 | 3.25 |
| F | 3.38 |
| Frame | 56C |
| Frame Size | 56C |
| G | 1.69 |
| Gear Type | Double Worm |
| Housing Material | Aluminum |
| I | 4.17" |
| Input Hp | 0.219 hp |
| Input Keyway Size | 1/8" x 1" |
| Input Speed | 1750 RPM |
| Input Style | C Face Coupled |
| J | 5" |
| K | 2 1/2" |
| L1 | 3.82" |
| Lm | 6.07 |
| Material | Aluminum |
| Max. Input Hp | 0.219 hp |
| N | 5.63 |
| No. Of Gear Reductions | 2 |
| O | 2.73" |
| Output Dia. | 1 1/4" |
| Output Hp | 21/200 hp |
| Output Key Size | 1/4" x 1.62" |
| Output Shaft | Shaft |
| Output Shaft Orientation | R5 |
| Output Speed | 2.33 RPM |
| Output Torque | 2871 lbs.-in. |
| Overhung Load | 1625 lbs. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| R | 2.13" |
| Reducer | Worm - Right Angle |
| Reducer Style | DM |
| Reduction | Double |
| Series | EL Series |
| Tap Depth | 0.69" |
| Tap Size | 3/8"-16 |
| U | 1/2" |
Shipping Info:
| Ship weight (kg) | 22.95 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | output torque | max. input hp | gear type | mounting type | gear ratio | center distance | assembly | output shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EL8260519.16 | 1883 lbs.-in. | 2 29/200 hp | Worm | Shaft Mount | - | 2.63" | HM-H1 | Hollow Bore | €2,853.17 | |
 |
EL8260111.00 | 1475 lbs.-in. | 4.492 hp | Worm | Base | - | 2.63" | BM-L | Solid Shaft | €2,188.53 | |
|
EL8260593.20 | 1843 lbs.-in. | 1 21/50 hp | Worm | Shaft Mount | - | 2.63" | HM-H1 | Hollow Bore | €2,853.17 | |
|
EL8260522.20 | 1805 lbs.-in. | 1 27/125 hp | Worm | Shaft Mount | - | 2.63" | HM-H1 | Hollow Bore | €2,853.17 | |
 |
EL8260212.00 | 1854 lbs.-in. | 1.695 hp | Worm | Base | - | 2.63" | BMQ-D | Solid Shaft | €2,302.65 | |
|
EL8260530.24 | - | - | - | - | - | - | - | - | €1,523.25 | |
|
EL8265287.00 | - | - | - | - | - | 2.6" | - | - | €2,312.30 | RFQ
|
