GROVE GEAR EL8260567.18 EL-HMQ826-30-H_-140-18 Worm Reducer, 30:1 Ratio, 0.875 Inch I.D, 1.125 Inch O.D, Aluminum
Get it by Friday, Dec 19
€2,853.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | HMQ-H1 |
| Bore Code | 18 |
| Center Distance | 2.63" |
| Frame | 140TC |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Aluminum |
| Input Bore (c Face) | 7/8" |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Material | Aluminum |
| Max Input Hp | 2 29/200 hp |
| Max. Input Hp | 2 29/200 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 1/8" |
| Output Hp | 1.743 hp |
| Output Key Size | 1/4" x 3" |
| Output Rpm | 58 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Type | Hollow Shaft |
| Output Style | H1 |
| Output Torque | 1883 lbs.-in. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-HMQ-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
Shipping Info:
| Ship weight (kg) | 16.2 |
| Ship height (cm) | 29.85 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 31.12 |
Product Variants
| Product | Model | Max. Input Hp | Gear Type | Output Shaft Type | Overhung Load | Gear Ratio | Output Torque | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EL8260519.16 | 2 29/200 hp | Worm | Hollow Shaft | - | - | 1883 lbs.-in. | Shaft Mount | 56C | €2,853.17 | |
 |

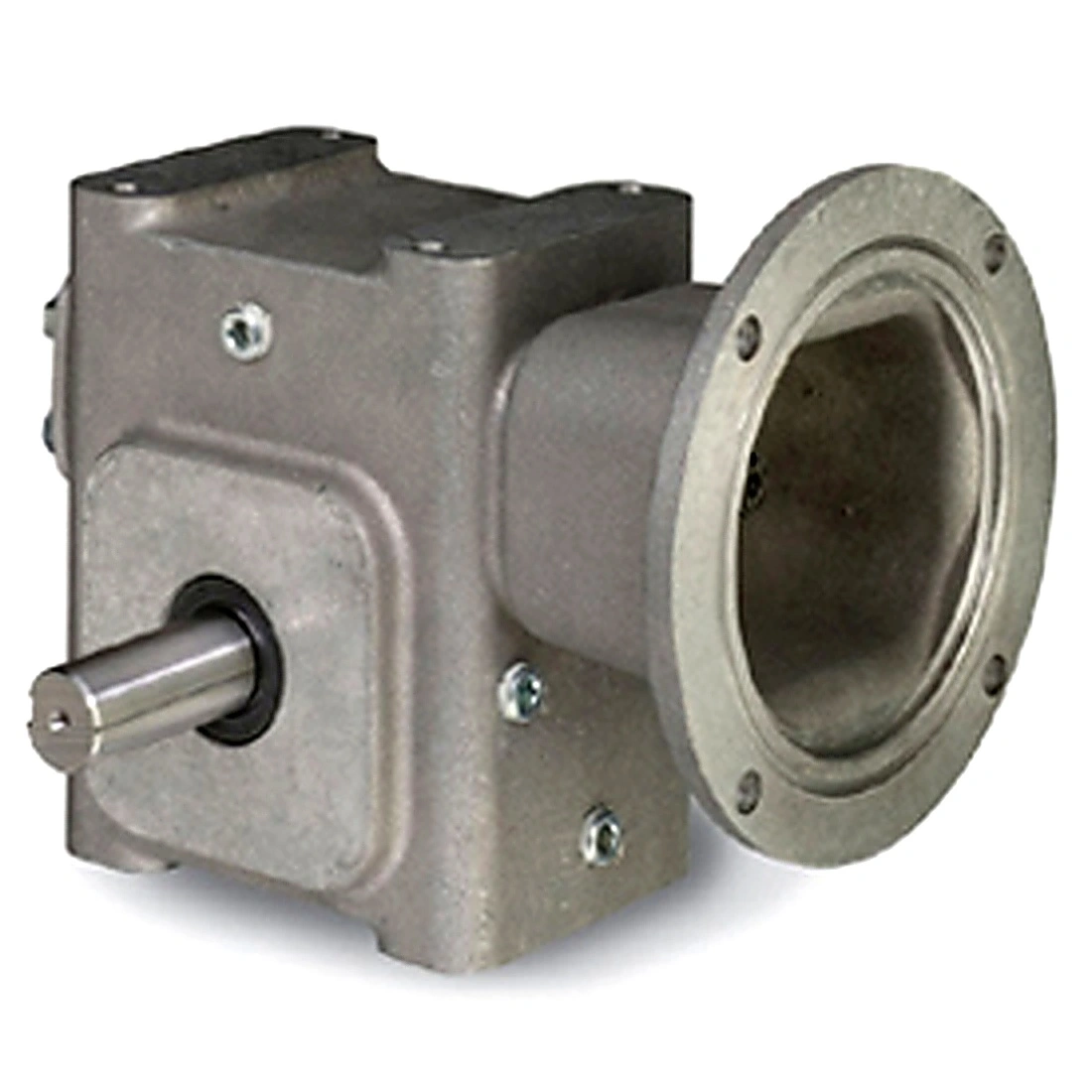

EL8260111.00 | 4.492 hp | Worm | Left Handed Shaft | 1625 lbs. | - | 1475 lbs.-in. | Base | 180TC | €2,188.53 | |
|
EL8260593.20 | 1 21/50 hp | Worm | Hollow Shaft | - | - | 1843 lbs.-in. | Shaft Mount | 210TC | €2,853.17 | |
|
EL8260522.20 | 1 27/125 hp | Worm | Hollow Shaft | - | - | 1805 lbs.-in. | Shaft Mount | 56C | €2,853.17 | |
 |
EL8260212.00 | 1.695 hp | Worm | Double Shaft | 1625 lbs. | - | 1854 lbs.-in. | Base | 140TC | €2,302.65 | |
|
EL8260530.24 | - | - | - | - | - | - | - | - | €1,523.25 | |
|
EL8265287.00 | - | - | - | - | - | - | - | - | €2,312.30 | RFQ
|
