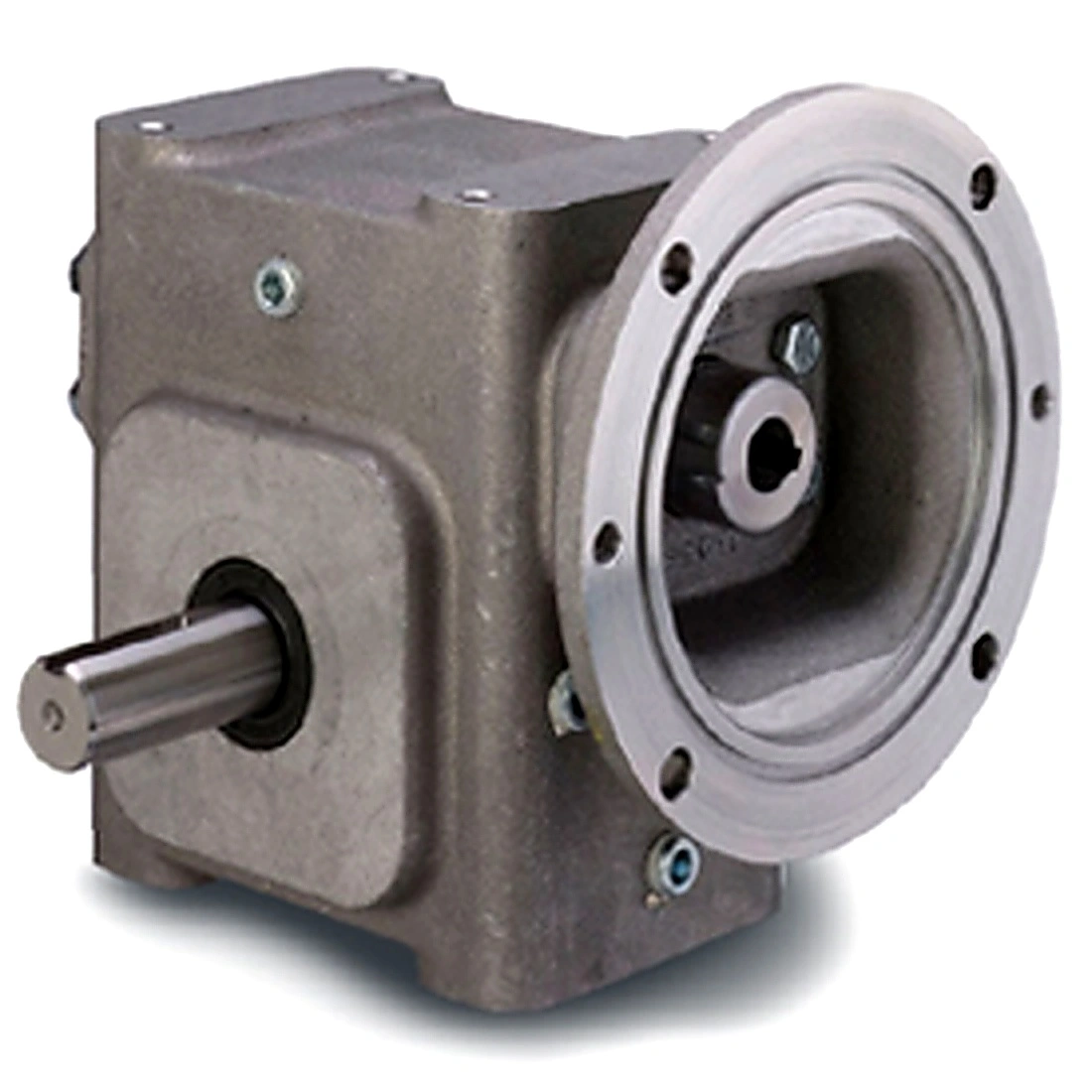

GROVE GEAR EL8260187.00 EL-BMQ826-30-L-140 Worm Reducer, 30:1 Ratio, 0.875 Inch I.D, 1.25 Inch O.D, Aluminum
Get it by Tuesday, Dec 23
€2,188.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Assembly | BMQ-L |
| Center Distance | 2.63" |
| Frame | 140TC |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Aluminum |
| Input Bore (c Face) | 7/8" |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp @ 1750 Rpm | 2 29/200 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Quill Dia. | 7/8" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Material | Aluminum |
| Max Input Hp | 2 29/200 hp |
| Max. Input Hp | 2 29/200 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 1/4" |
| Output Hp | 1.743 hp |
| Output Key Size | 1/4" x 1.62" |
| Output Rpm | 58 RPM |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia. | 1 1/4" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Thrust Rating | 2091 |
| Output Shaft Type | Left Handed Shaft |
| Output Style | L |
| Output Torque | 1883 lbs.-in. |
| Overhung Load | 1625 lbs. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-BMQ-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Tap Depth | 0.69" |
| Tap Size | 3/8"-16 |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 29.85 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 31.12 |
Product Variants
| Model | Max. Input Hp | Mounting Type | Frame | Output Torque | Output Shaft Type | Gear Type | Overhung Load | Gear Ratio | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EL8260221.00 | 2.965 hp | Base | 180TC | 1836 lbs.-in. | Left Handed Shaft | Worm | 1625 lbs. | - | €2,188.53 | |
| EL8260146.00 | 4.956 hp | Base | 56C | 1235 lbs.-in. | Left Handed Shaft | Worm | 1625 lbs. | - | €2,188.53 | |
| EL8260217.00 | 6.693 hp | Base | 180TC | 1130 lbs.-in. | Left Handed Shaft | Worm | 1625 lbs. | - | €2,188.53 | |
| EL8260181.00 | 6.693 hp | Base | 140TC | 1130 lbs.-in. | Left Handed Shaft | Worm | 1625 lbs. | - | €2,188.53 | |
| EL8260225.00 | 1 21/50 hp | Base | 180TC | 1843 lbs.-in. | Left Handed Shaft | Worm | 1625 lbs. | - | €2,188.53 | |
| EL8260224.00 | 1.695 hp | Base | 180TC | 1854 lbs.-in. | Left Handed Shaft | Worm | 1625 lbs. | - | €2,188.53 | |
| EL8260152.00 | 1.695 hp | Base | 56C | 1854 lbs.-in. | Left Handed Shaft | Worm | 1625 lbs. | - | €2,188.53 |
