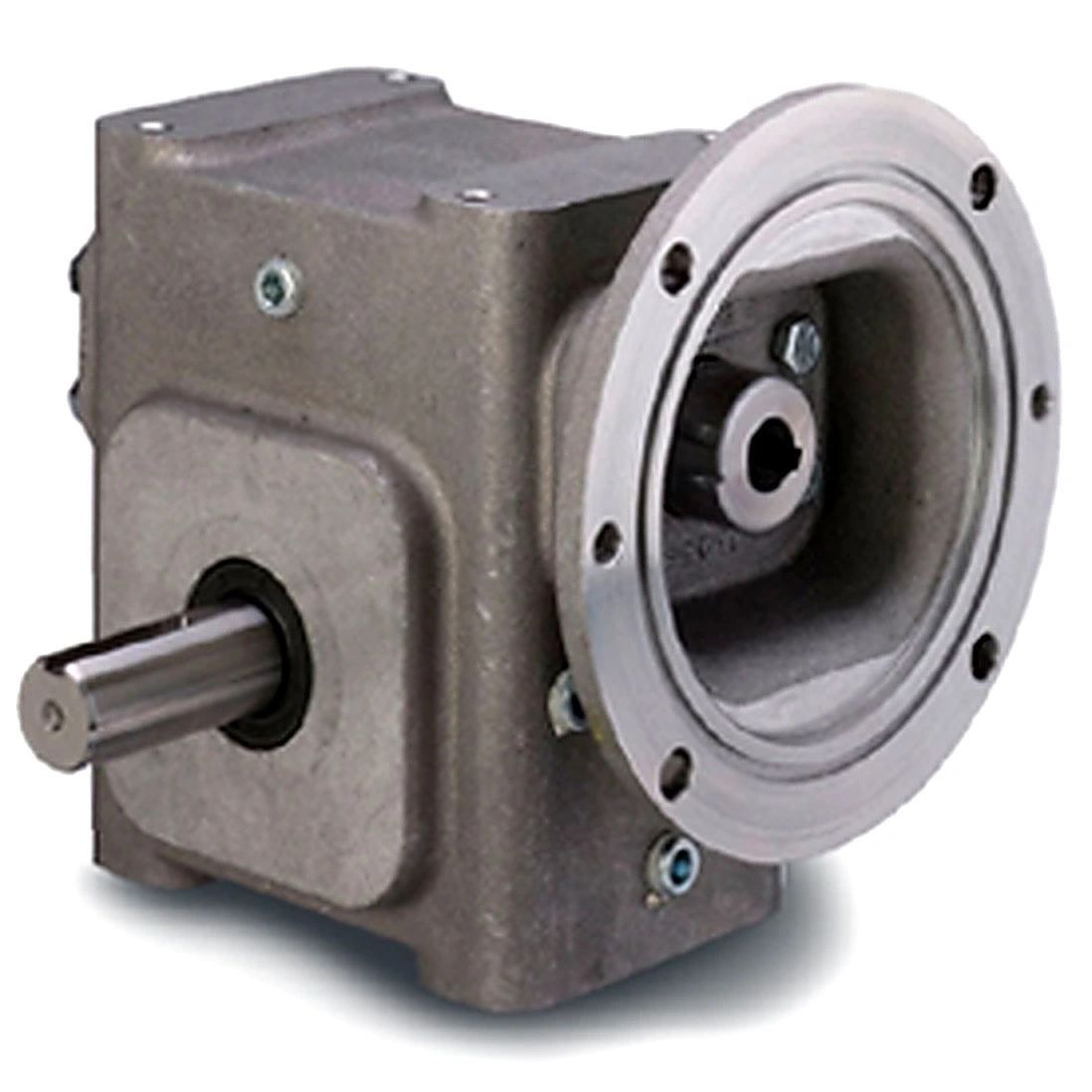

GROVE GEAR EL8240219.00 EL-BMQ824-10-L-180 Right Angle Gear Reducer, 175 RPM Output, 1172 lb-in Torque, Aluminum, H1 Left Output
Get it by Monday, Aug 31
€1,913.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | Aluminum |
| Assembly | BMQ-L |
| Center Distance | 2.38" |
| Family Name | Aluminum Housing Material Worm Gear Reducers |
| Frame | 180TC |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Aluminum |
| Input Bore (c Face) | 1 1/8" |
| Input Bore Size | 1 1/8" |
| Input Dia. | 1 1/8" |
| Input Hp | 3.564 hp |
| Input Keyway Size (c Face) | 1/4" x 1/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| Material | Aluminum |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output | Left |
| Output Dia. | 1 1/8" |
| Output Hp | 3.253 hp |
| Output Key Size | 1/4" x 1.62" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia | 1.125 |
| Output Shaft Dia. | 1 1/8" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Type | Left Handed Shaft |
| Output Speed | 175 RPM |
| Output Style | L |
| Output Torque | 1172 lbs.-in. |
| Output Type | Shaft |
| Overhung Load | 1770 lbs. |
| Paint/coating | Aluminum |
| Product Datasheet | grove-gear-el8420339-00.pdf |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-BMQ-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 175 RPM |
| Torque (lb-in)@1750rpm | 1172 |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Documentation:
Product Variants
| Model | Input Dia. | Output Hp | Output Speed | Output Torque | Max. Input Hp | Input Bore Size | Input Keyway Size (c Face) | Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EL8240152.00 | 5/8" | 0.994 hp | 43 RPM | 1433 lbs.-in. | 1.342 hp | 5/8" | 3/16" x 3/32" | 43 RPM | €1,913.30 | |
| EL8240183.00 | 7/8" | 3.253 hp | 175 RPM | 1172 lbs.-in. | 3.564 hp | 7/8" | 3/16" x 3/32" | 175 RPM | €1,913.30 | |
| EL8240149.00 | 5/8" | 1.972 hp | 87 RPM | 1421 lbs.-in. | 2.326 hp | 5/8" | 3/16" x 3/32" | 87 RPM | €1,913.30 | |
| EL8240154.00 | 5/8" | 82/125 hp | 29 RPM | 1418 lbs.-in. | 0.967 hp | 5/8" | 3/16" x 3/32" | 29 RPM | €1,723.59 | |
| EL8240150.00 | 5/8" | 1.615 hp | 70 RPM | 1454 lbs.-in. | 1.967 hp | 5/8" | 3/16" x 3/32" | 70 RPM | €1,913.30 | |
| EL8240148.00 | 5/8" | 2.439 hp | 116 RPM | 1318 lbs.-in. | 2.765 hp | 5/8" | 3/16" x 3/32" | 116 RPM | €1,913.30 | |
| EL8240226.00 | 1 1/8" | 82/125 hp | 29 RPM | 1418 lbs.-in. | 0.967 hp | 1 1/8" | 1/4" x 1/8" | 29 RPM | €1,913.30 |
