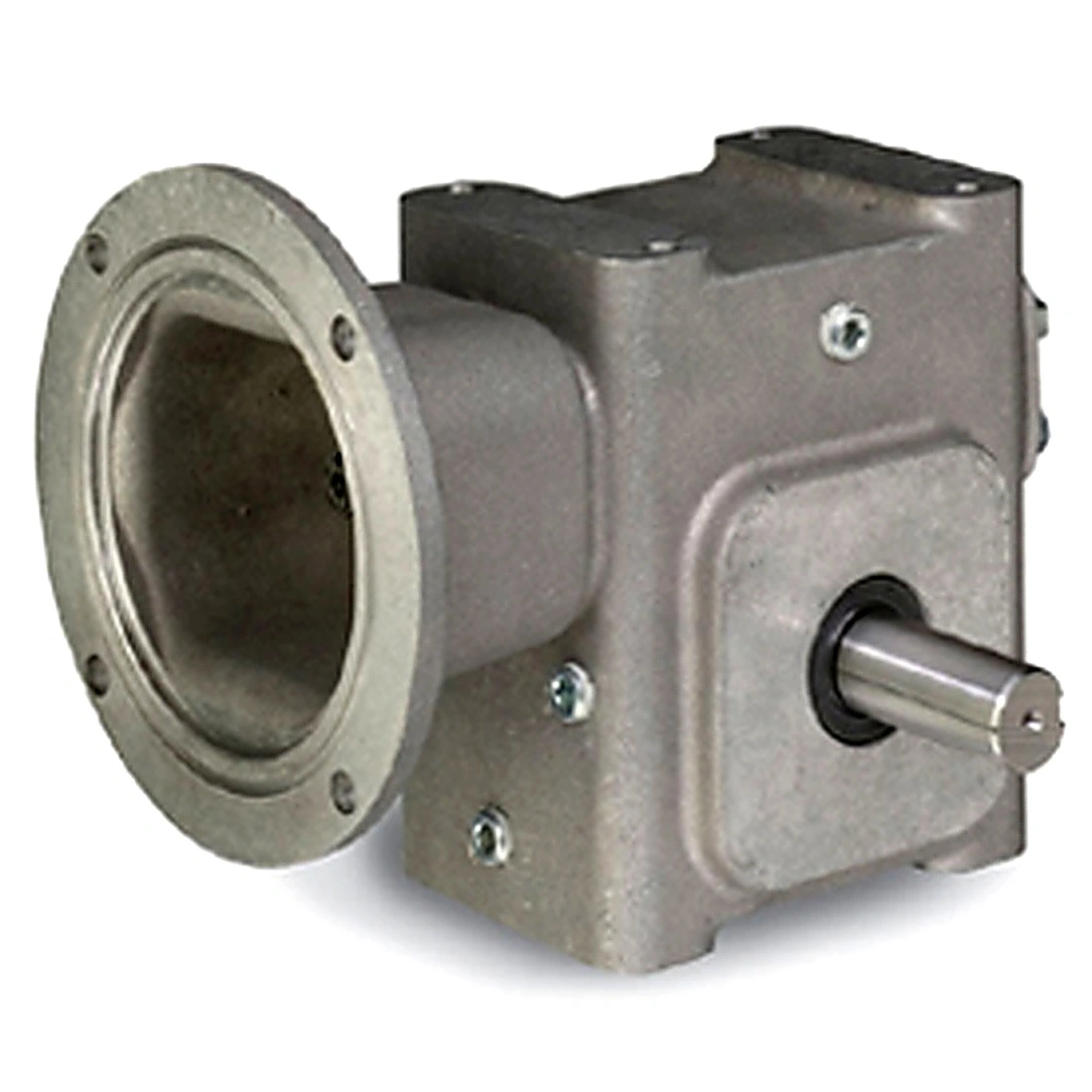

GROVE GEAR EL8240123.00 EL-BM824-10-R-180 Right Angle Gear Reducer, 10 to 1 Reduction Ratio, 175 RPM Output, 1172 lb-in Torque, Aluminum
Get it by Friday, Aug 28
€1,913.30 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Reducer |
| Application | Aluminum |
| Assembly | BM-R |
| Center Distance | 2.38" |
| Frame | 180TC |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Aluminum |
| Input Bore (c Face) | 1 1/8" |
| Input Bore Size | 1 1/8" |
| Input Dia. | 1 1/8" |
| Input Hp | 3.564 hp |
| Input Keyway Size (c Face) | 1/4" x 1/8" |
| Input Speed | 1750 RPM |
| Input Style | C Face Coupled |
| Input Type | C-Face Coupled |
| Material | Aluminum |
| Max. Input Hp | 3.564 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output | Right |
| Output Dia. | 1 1/8" |
| Output Hp | 3.253 hp |
| Output Key Size | 1/4" x 1.62" |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia | 1.125 |
| Output Shaft Dia. | 1 1/8" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Type | Right Handed Shaft |
| Output Speed | 175 RPM |
| Output Style | R |
| Output Torque | 1172 lbs.-in. |
| Output Type | Shaft |
| Overhung Load | 1770 lbs. |
| Paint/coating | Aluminum |
| Product Datasheet | grove-gear-el8420339-00.pdf |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-BM-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 175 RPM |
| Torque (lb-in)@1750rpm | 1172 |
Shipping Info:
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Documentation:
Product Variants
| Model | Max. Input Hp | Output Speed | Input Dia. | Output Dia. | Output Hp | Output Torque | Paint/coating | Input Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EL8240593.18 | 1.137 hp | 35 RPM | 1 3/8" | 1 1/8" | 0.795 hp | 1432 lbs.-in. | Aluminum | C Face Coupled | €2,497.36 | |
| EL8240586.20 | 3.992 hp | 233.3 RPM | 1 3/8" | 1 1/4" | 3.685 hp | 995 lbs.-in. | Aluminum | C Face Coupled | €2,497.36 | |
| EL8240588.19 | 2.765 hp | 116 RPM | 1 3/8" | 1.188" | 2.439 hp | 1318 lbs.-in. | Aluminum | C Face Coupled | €2,497.36 | |
| EL8240521.18 | 1.137 hp | 35 RPM | 5/8" | 1 1/8" | 0.795 hp | 1432 lbs.-in. | Aluminum | C Face Coupled | €2,497.36 | |
| EL8240539.16 | 3.564 hp | 175 RPM | 1 1/8" | 1" | 3.253 hp | 1172 lbs.-in. | Aluminum | C Face Coupled | €2,497.36 | |
| EL8240556.19 | 1.342 hp | 43 RPM | 5/8" | 1.188" | 0.994 hp | 1433 lbs.-in. | Aluminum | C Face Quill | €2,497.36 | |
| EL8240574.18 | 3.992 hp | 233.3 RPM | 1 1/8" | 1 1/8" | 3.685 hp | 995 lbs.-in. | Aluminum | C Face Quill | €2,497.36 |
