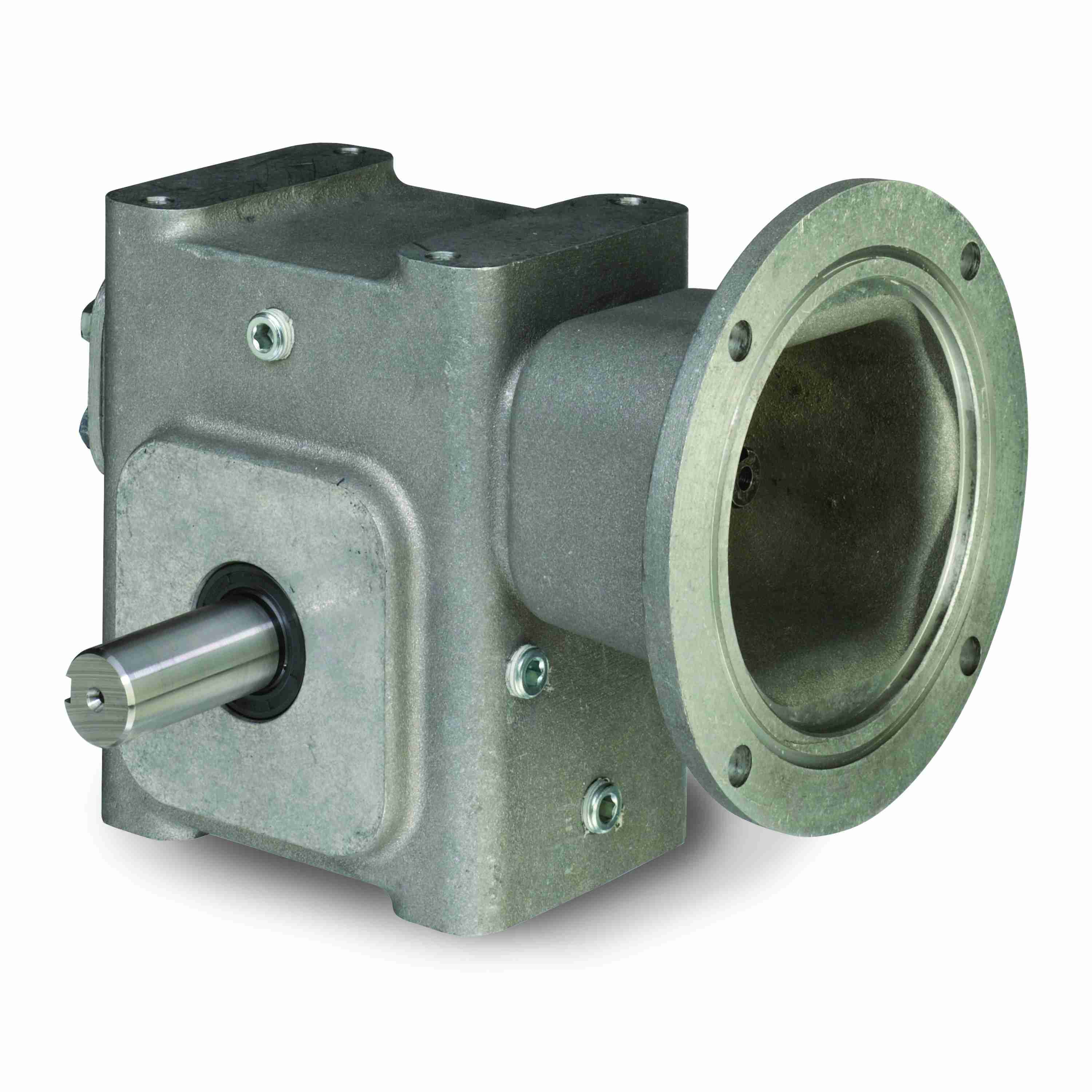

GROVE GEAR EL8210046.00 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Aluminum | AY7KNA EL-BM821-60-L-56

GROVE GEAR EL8210046.00 EL-BM821-60-L-56 Right Angle Gear Reducer, 60 to 1 Reduction Ratio, 29 RPM Output, 940 lb-in Torque, Aluminum

Item: AY7KNAModel: EL8210046.00Cross Ref: EL-BM821-60-L-56
Check Availability
In Stock
Ratio

Get it by Tuesday, Aug 18

€1,603.17 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Reducer
A 3.91
Aj 5.88
Application Aluminum
Assembly BM-L
B 5.75
Be 0.38"
Bf 0.41
C 6 22/25"
Center Distance 2.06"
D 2.63
F 3.25
Frame 56C
Frame Size 56C
G 1.63
Gear Drive Reductions Single
Gear Type Worm
Gearbox Type Worm
Gross Weight 0 lbs.
Housing Material Aluminum
I 3 2/5"
Input Bore (c Face) 5/8"
Input Bore Size 5/8"
Input Dia. 5/8"
Input Flange 56C
Input Hp 0.674 hp
Input Hp @ 1750 Rpm 0.674 hp
Input Keyway Size 3/16" x 1/2"
Input Keyway Size (c Face) 3/16" x 3/32"
Input Speed 1750 RPM
Input Style Flexible Coupling Input
Input Type C-Face Coupled
J 4.13"
K 2.06"
L1 4"
Lm 6.26
Material Aluminum
Max. Input Hp 0.674 hp , 337/500 hp
Max. Ohl (output Shaft) 1415
Max. Thrust Load (output Shaft) 1144
Mounting Type Base
N 4.68
No. Of Gear Reductions 1
O 2.29"
Output Left
Output Dia. 1"
Output Hp 87/200 hp
Output Key Size 1/4" x 1.44"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia. 1"
Output Shaft Direction Left
Output Shaft Orientation L
Output Shaft Thrust Rating 1144
Output Shaft Type Left Handed Shaft
Output Speed 29 RPM
Output Style L
Output Torque 940 lbs.-in.
Output Type Solid Shaft
Overhung Load 1415 lbs.
Overhung Load Rating 1415 lbs.
Paint/coating Aluminum
Product Line EL Series - Aluminum Worm Gear Reducers
Reducer Worm - Right Angle
Reducer Style Worm - Right Angle
Reducer Type Single
Reduction Single
Reduction Type Single
Series EL Series
Series Style EL-BM-L
Service Factor 1
Shaft Seal Material Viton
Speed 29 RPM
Tap Depth 0.87"
Tap Size 3/8"-16
Torque (lb-in)@1750rpm 940
U 5/8"

Shipping Info:

Ship weight (kg) 9
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelOutput HpMax. Input HpOutput SpeedOutput TorqueMounting TypeInput Bore SizeInput Keyway SizeSpeedPrice
GROVE GEAR EL8210042.00 Worm Reducer, 25:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Aluminum | AX8FYQ EL-BM821-25-L-56 EL8210042.001 47/500 hp1.333 hp70 RPM985 lbs.-in.Base5/8"3/16" x 1/2"70 RPM€1,603.17
GROVE GEAR EL8210076.00 Worm Reducer, 15:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Aluminum | AX8LRU EL-BM821-15-L-140 EL8210076.001.661 hp1.887 hp116 RPM897 lbs.-in.Base7/8"3/16" x 1/2"116 RPM€1,603.17
GROVE GEAR EL8210047.00 Worm Reducer, 80:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Aluminum | AX9MNU EL-BM821-80-L-56 EL8210047.0019/100 hp38/125 hp21 RPM547 lbs.-in.Base5/8"3/16" x 1/2"21.9 RPM€1,603.17
GROVE GEAR EL8210039.00 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Aluminum | AY3HRM EL-BM821-10-L-56 EL8210039.002.235 hp2 58/125 hp--Base5/8"3/16" x 3/32"175 RPM€1,581.10
GROVE GEAR EL8210084.00 Worm Reducer, 100:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Aluminum | AY3UBB EL-BM821-100-L-140 EL8210084.0061/500 hp0.217 hp17 RPM439 lbs.-in.Base7/8"3/16" x 1/2"17 RPM€1,603.17
GROVE GEAR EL8210074.00 Worm Reducer, 7.5:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Aluminum | AY4NAG EL-BM821-7.5-L-140 EL8210074.002.562 hp2.793 hp233 RPM692 lbs.-in.Base7/8"3/16" x 1/2"233 RPM€1,603.17
GROVE GEAR EL8210040.00 Worm Reducer, 15:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Aluminum | AY4YXU EL-BM821-15-L-56 EL8210040.001.661 hp1.887 hp116 RPM897 lbs.-in.Base5/8"3/16" x 1/2"116 RPM€1,603.17
