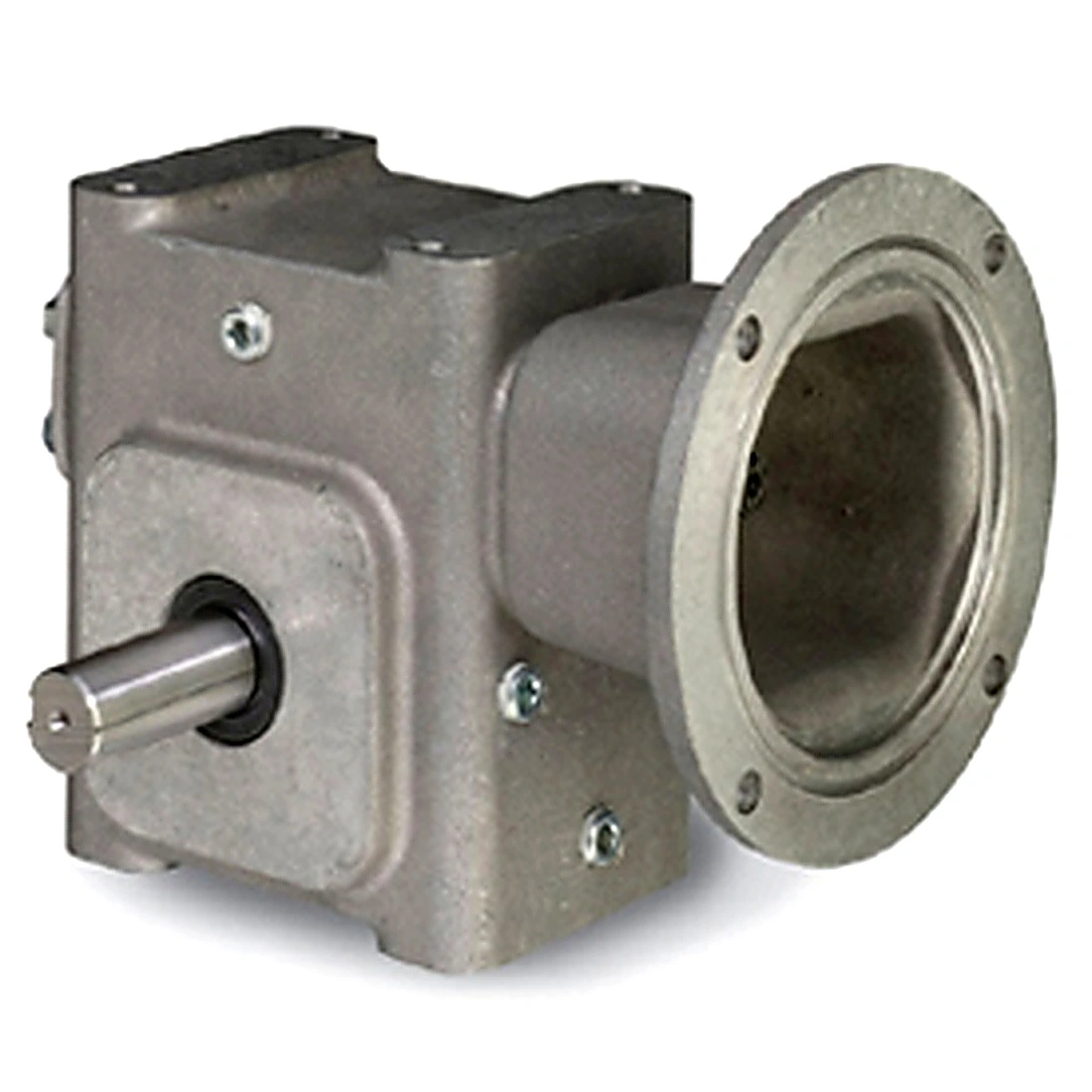

GROVE GEAR EL8180040.00 Reducer, 3-Piece Coupled Input Output Shaft Left Worm Gear | AX8LRN EL-BM818-15-L-56

GROVE GEAR EL8180040.00 EL-BM818-15-L-56 Right Angle Gear Reducer, 15 to 1 Ratio, 0.75 Inch Left Output Shaft, 56C NEMA Input, 116 RPM Output

Item: AX8LRNModel: EL8180040.00Cross Ref: EL-BM818-15-L-56
Check Availability
In Stock

Get it by Monday, Aug 31

€761.65 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 3.5
Aj 5.88
Ak 4.5
Application Aluminum
Assembly BM-L
B 4.83
Bd 6.5
Be 0.38"
Bf 0.41
C 5.86"
Center Distance 1 3/4"
D 2.31
F 2.94
Frame 56
G 1.47
Gear Type Worm
H-tap Size 5/16"-18
H-tap Size 18"
Housing Material Aluminum
I 3.03"
Input Dia. 5/8"
Input Hp @ 1750 Rpm 1 28/125 hp
Input Keyway 3/16" x 0.5"
Input Keyway Size 3/16" x 1/2"
Input Speed 1750 , 1750 RPM
Input Style Flexible Coupling Input
J 3.69"
K 1 21/25"
L1 3 16/25"
Lm 5.89
Max. Input Hp @ 1750 1 hp
Motor Frame Size 56
Mount Footprint 2.94" x 3.69"
Mount Style BM
N 4.39
Nema Input Mounting 56C
No. Of Gear Reductions 1 , Single
O 2.05"
Output Config H1 Left
Output Dia. 3/4"
Output Key 3/16 x 1.38
Output Key Size 3/16" x 1.38"
Output Shaft Solid Shaft
Output Shaft Assembly Code L
Output Shaft Dia. 0.75
Output Shaft Direction Left
Output Shaft Thrust Rating 1144
Output Speed 116 , 116 RPM
Output Speed @ 1750 Rpm Input 116
Output Torque 571 lbs.-in.
Output Torque Rating (in-lb) 571 lbs.-in.
Overhung Load Rating 920 lbs.
Product Datasheet grove-gear-el8420339-00.pdf
Product Line EL Series - Aluminum Worm Gear Reducers
Product Type Right Angle
Ratio 151
Reducer Worm - Right Angle
Reduction Ratio 15
Series EL Series , ZX
Series Code El
Series Size 818
Service Factor 1
Shaft Center Distance 1.75
Shaft Center Height 2.31
Shaft Seal Material Viton
T 0.75
Tap Depth 0.63"
Tap Size 5/16"-18
Torque (lb-in)@1750rpm 571 lbs.-in.
U 5/8"

Shipping Info:

Ship weight (kg) 7.65
Ship height (cm)14.61
Ship length (cm)20.32
Ship width (cm)15.24

Documentation:

Datasheet

Product Variants

ProductModelInput Dia.Output HpMax. Input HpOutput Dia.Output SpeedOutput TorqueInput StylePaint/coatingPrice
GROVE GEAR EL8180501.16 Worm Reducer, 5:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Aluminum | AX4BPP EL8180501.165/8"2.422 hp2 3/5 hp1"350 RPM436 lbs.-in.ShaftAluminum€1,558.84
GROVE GEAR EL8180510.10 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Aluminum | AX6EBR EL8180510.105/8"36/125 hp0.449 hp5/8"29 RPM623 lbs.-in.ShaftAluminum€1,558.84
GROVE GEAR EL8185151.00 Quill Input Worm Gear Reducer | AX6VHF EL8185151.00------QuillAluminum€679.51
RFQ
GROVE GEAR EL8180543.16-H1 Quill Input Hollow Bore Output Worm Gear Reducer | AX7YWV EL8180543.16-H1------QuillAluminum€961.20
RFQ
GROVE GEAR EL8180057.00 Worm Reducer, 50:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Aluminum | AX8PPH EL8180057.005/8"44/125 hp0.515 hp3/4"35 RPM634 lbs.-in.Flexible Coupling InputAluminum€1,427.25
GROVE GEAR EL8180131.00 Worm Reducer, 80:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Aluminum | AX8PPJ EL8180131.005/8"31/250 hp26/125 hp3/4"21 RPM356 lbs.-in.C Face QuillAluminum€1,427.25
GROVE GEAR EL8180122.00 Worm Reducer, 7.5:1 Ratio, 0.625 Inch I.D, 0.75 Inch O.D, Aluminum | AX8QPC EL8180122.005/8"1.745 hp1.909 hp3/4"233 RPM471 lbs.-in.C Face QuillAluminum€1,285.72
