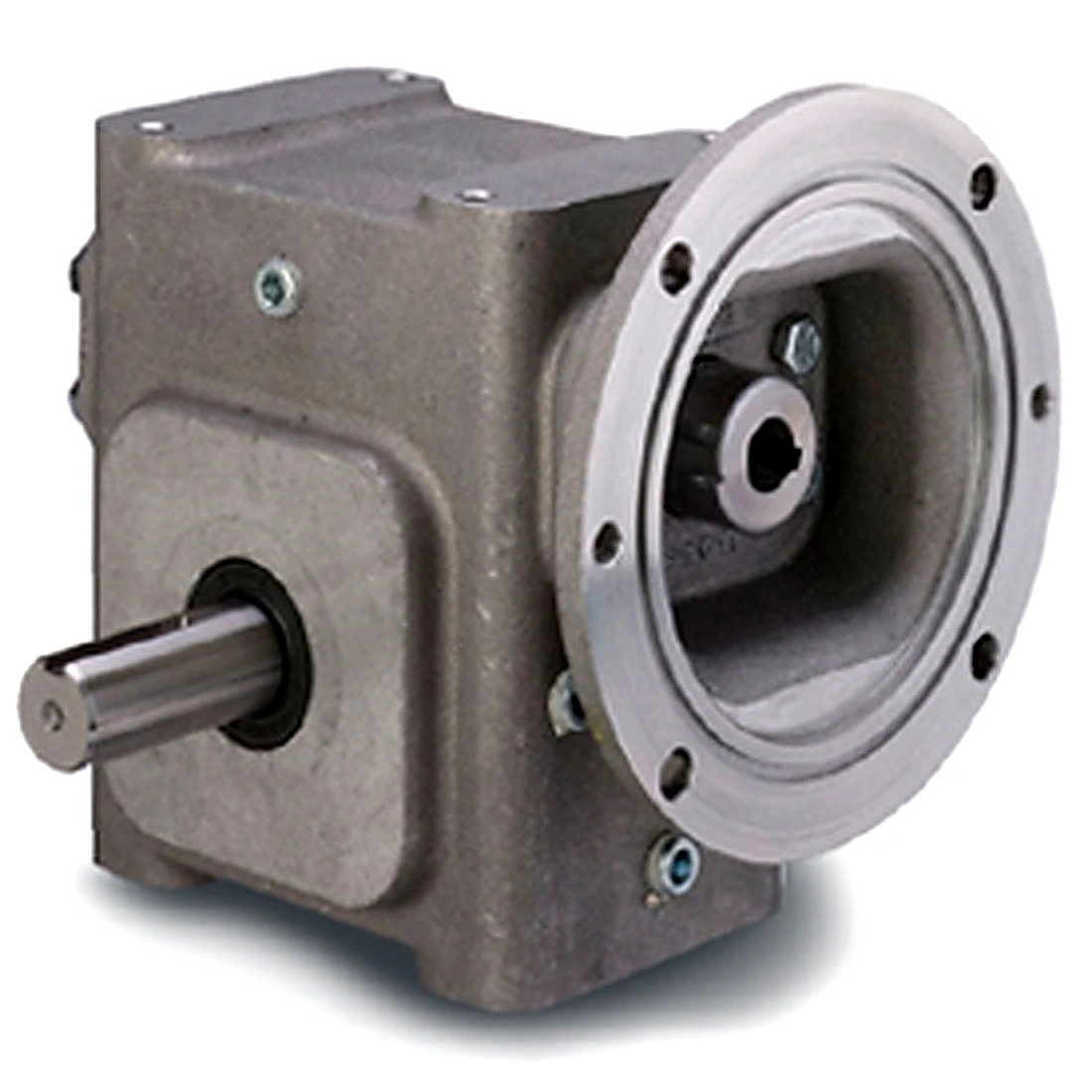

GROVE GEAR EL8130084.00 EL-BMQ813-100-L-56 Right Angle Gear Reducer, 100 to 1 Reduction Ratio, 17 RPM Output, 143 lb-in Torque, Aluminum
Item: AY9KHZModel: EL8130084.00Cross Ref: EL-BMQ813-100-L-56
7 In Stock
Ships within 2 days via
€1,364.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Reducer |
| A | 2.82 |
| Aj | 5.88 |
| Application | Aluminum |
| Assembly | BMQ-L |
| B | 3.8 |
| Be | 0.38" |
| Bf | 0.41 |
| C | 4.66" |
| Center Distance | 1.33" |
| D | 1.72 |
| Frame | 56C |
| Frame Size | 56C |
| Gear Drive Reductions | Single |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Gross Weight | 0 lbs. |
| Housing Material | Aluminum |
| I | 2 2/5" |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Flange | 56C |
| Input Hp @ 1750 Rpm | 21/250 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input Type | C-Face Quilled |
| J | 3 1/4" |
| K | 1.63" |
| Lq | 3.79" |
| Material | Aluminum |
| Max. Input Hp | 21/250 hp |
| Max. Ohl (output Shaft) | 700 |
| Max. Thrust Load (output Shaft) | 1144 |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| O | 2 4/25" |
| Output | Left |
| Output Dia. | 5/8" |
| Output Hp | 1/25 hp |
| Output Key Size | 3/16" x 1.38" |
| Output Shaft | Solid Shaft |
| Output Shaft Assembly Code | L |
| Output Shaft Dia | 0.625 |
| Output Shaft Dia. | 5/8" |
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Shaft Thrust Rating | 1144 |
| Output Shaft Type | Left Handed Shaft |
| Output Speed | 17 RPM |
| Output Style | L |
| Output Torque | 143 lbs.-in. |
| Output Type | Solid Shaft |
| Overhung Load | 700 lbs. |
| Overhung Load Rating | 700 lbs. |
| Paint/coating | Aluminum |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | Worm - Right Angle |
| Reducer Type | Single |
| Reduction | Single |
| Reduction Type | Single |
| Rq | 3.09" |
| Series | EL Series |
| Series Style | EL-BMQ-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Speed | 17 RPM |
| T | 0.625 |
| Tap Depth | 1/2" |
| Tap Size | 5/16"-18 |
| Torque (lb-in)@1750rpm | 143 |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Product Variants
| Product | Model | output torque | max. input hp | mounting type | center distance | input style | output shaft assembly code | output shaft | assembly | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EL8130217.00 | 209 lbs.-in. | 1 31/125 hp | Base | 1.33" | C Face Quill | L | Solid Shaft | BMQ-L | €1,364.95 | |
|
EL8130041.00 | 320 lbs.-in. | - | - | 1.33" | Flexible Coupling Input | L | Solid Shaft | BM-L | €676.29 | |
|
EL8130555.10 | - | - | - | 1.3" | 3-Piece Coupled | - | - | - | €667.91 | RFQ
|
|
EL8130077.00 | 320 lbs.-in. | 0.551 hp | Base | 1.33" | C Face Quill | L | Solid Shaft | BMQ-L | €1,364.95 | |
|
EL8130091.00 | 314 lbs.-in. | 79/200 hp | Base | 1.33" | C Face Quill | R | Solid Shaft | BMQ-R | €1,364.95 | |
|
EL8130114.00 | - | - | - | 1.3" | 3-Piece Coupled | - | - | - | €518.33 | RFQ
|
 |
EL8130507.10 | 314 lbs.-in. | 79/200 hp | Shaft Mount | 1.33" | Shaft | H1 | Hollow Bore | H-H1 | €1,470.22 |
