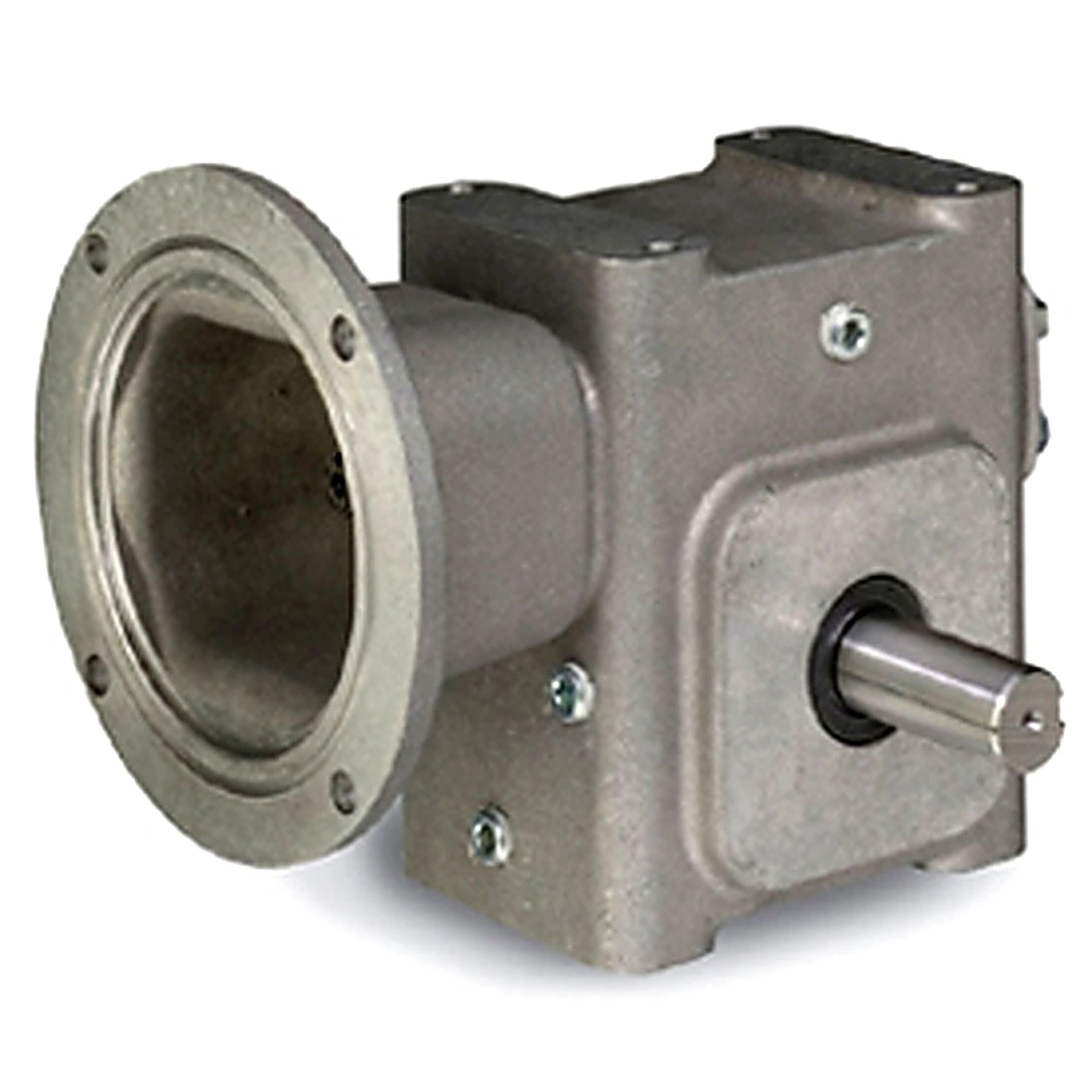

GROVE GEAR EL8130051.00 Reducer, 3-Piece Coupled Input Output Shaft Right Worm Gear | AY4BLR EL-BM813-10-R-56

GROVE GEAR EL8130051.00 EL-BM813-10-R-56 Right Angle Gear Reducer, 10 to 1 Ratio, 0.625 Inch Right Output Shaft, 56C NEMA Input, 175 RPM Output

Item: AY4BLRModel: EL8130051.00Cross Ref: EL-BM813-10-R-56
Check Availability
In Stock

Get it by Tuesday, Aug 18

€676.29 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Gear Reducer
A 2.82
Aj 5.88
Ak 4.5
Application Aluminum
Assembly BM-R
B 3.8
Bd 6.5
Be 0.38"
Bf 0.41
C 4.66"
Center Distance 1.33"
D 1.72
F 2
Frame 56
G 1
Gear Type Worm
H-tap Size 5/16"-18
H-tap Size 18"
Housing Material Aluminum
I 2 2/5"
Input Dia. 1/2"
Input Hp @ 1750 Rpm 0.823 hp
Input Keyway 1/8" x 1"
Input Keyway Size 1/8" x 1"
Input Speed 1750 , 1750 RPM
Input Style Flexible Coupling Input
J 3 1/4"
K 1.63"
L1 3.82"
Lm 6.07
Max. Input Hp @ 1750 3/4 hp
Motor Frame Size 56
Mount Footprint 2 x 3.25
Mount Style BM
N 4
Nema Input Mounting 56C
No. Of Gear Reductions 1 , Single
O 2 4/25"
Output Config H1 Right
Output Dia. 5/8"
Output Key 3/16 x 1.38
Output Key Size 3/16" x 1.38"
Output Shaft Solid Shaft
Output Shaft Assembly Code R
Output Shaft Dia. 0.625
Output Shaft Direction Right
Output Shaft Thrust Rating 1070
Output Speed 175 , 175 RPM
Output Speed @ 1750 Rpm Input 175
Output Torque 263 lbs.-in.
Output Torque Rating (in-lb) 263 lbs.-in.
Overhung Load Rating 700 lbs.
Product Line EL Series - Aluminum Worm Gear Reducers
Product Type Right Angle
Ratio 101
Reducer Worm - Right Angle
Reduction Ratio 10
Series EL Series , ZX
Series Code El
Series Size 813
Service Factor 1
Shaft Center Distance 1.33
Shaft Center Height 1.72
Shaft Seal Material Viton
T 0.625
Tap Depth 1/2"
Tap Size 5/16"-18
Torque (lb-in)@1750rpm 263 lbs.-in.
U 1/2"

Shipping Info:

Ship weight (kg) 6.75
Ship height (cm)12.7
Ship length (cm)20.32
Ship width (cm)15.24

Product Variants

ProductModelInput Dia.Output TorqueOutput SpeedOutput HpMax. Input HpInput StylePaint/coatingSeriesPrice
GROVE GEAR EL8130217.00 Worm Reducer, 5:1 Ratio, 0.875 Inch I.D, 0.625 Inch O.D, Aluminum | AX7AMJ EL8130217.007/8"209 lbs.-in.350 RPM1 79/500 hp1 31/125 hpC Face QuillAluminumEL Series€1,364.95
GROVE GEAR EL8130041.00 Reducer, 3-Piece Coupled Input Output Shaft Left Worm Gear | AX8EHK EL-BM813-20-L-56 EL8130041.001/2"320 lbs.-in.87 RPM--Flexible Coupling Input-EL Series€676.29
GROVE GEAR EL8130555.10 Output Worm Gear Reducer | AX8EHM EL8130555.10-----3-Piece CoupledAluminum-€667.91
RFQ
GROVE GEAR EL8130077.00 Worm Reducer, 20:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Aluminum | AX8PPG EL8130077.005/8"320 lbs.-in.87 RPM89/200 hp0.551 hpC Face QuillAluminumEL Series€1,364.95
GROVE GEAR EL8130091.00 Worm Reducer, 30:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Right Angle Aluminum | AX8RJQ EL8130091.005/8"314 lbs.-in.58 RPM29/100 hp79/200 hpC Face QuillAluminumEL Series€1,364.95
GROVE GEAR EL8130114.00 Reducer, 3-Piece Coupled Input Output Shaft Left Worm Gear | AX8RJR EL8130114.00-----3-Piece CoupledAluminum-€518.33
RFQ
GROVE GEAR EL8130507.10 Worm Reducer, 30:1 Ratio, 0.5 Inch I.D, 0.625 Inch O.D, Aluminum | AX8UGK EL8130507.101/2"314 lbs.-in.58 RPM29/100 hp79/200 hpShaftAluminumEL Series€1,470.22
