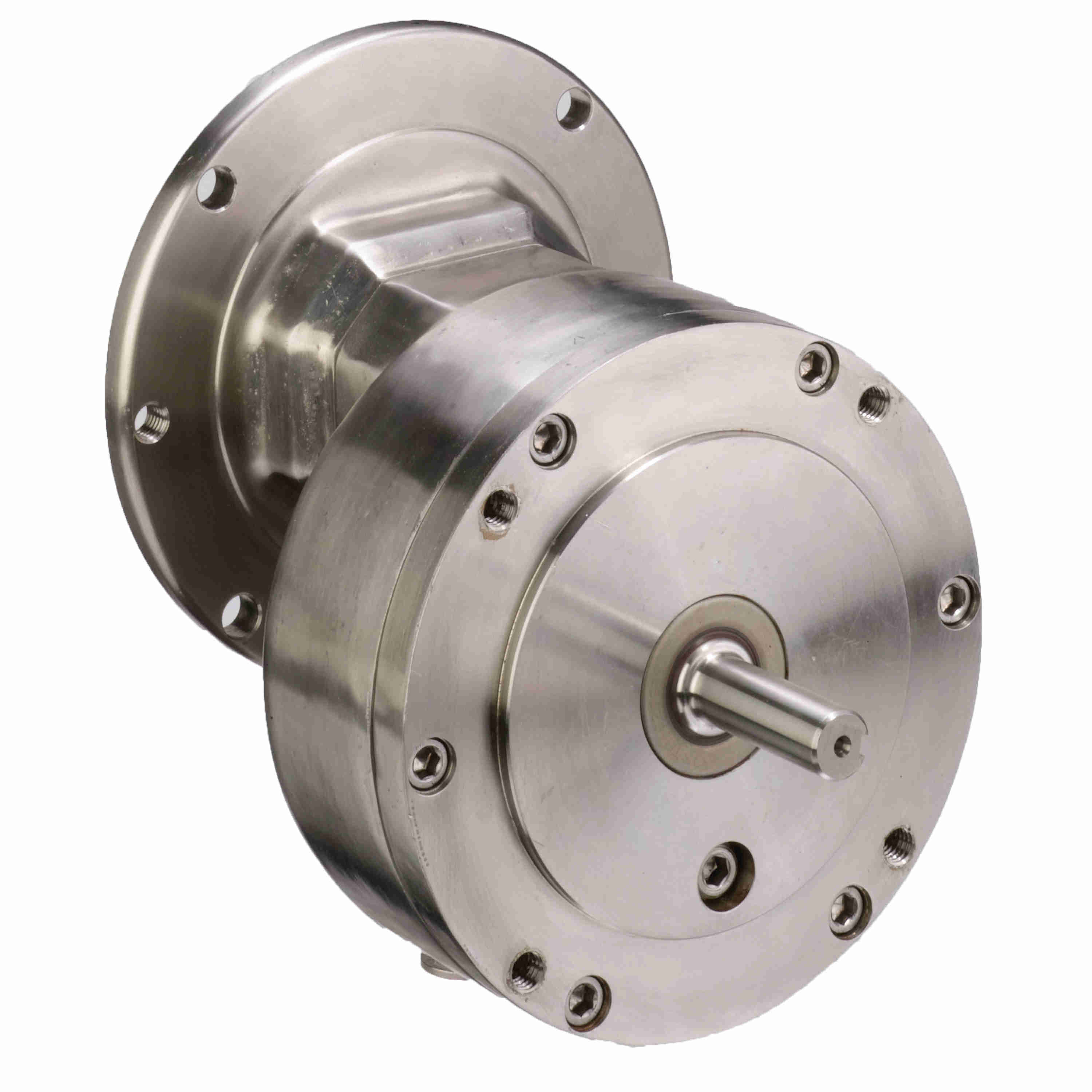

GROVE GEAR 707703L STXMQ-4.000-56C-56C Ratio Multiplier, 4:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Stainless Steel
Get it by Tuesday, Aug 25
€1,276.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ratio Multiplier |
| Exact Ratio | 4 |
| Gear Type | Helical, Worm |
| Housing Material | Stainless Steel |
| Input Dia. | 5/8" |
| Input Hp @ 1750 Rpm | 2 91/100 hp |
| Input Keyway Size | 3/16" x 3/32" |
| Input Speed | 1750 RPM |
| Input Style | C Face Quill |
| Input/output Flange | 56 |
| Material | Stainless Steel |
| Output Dia. | 5/8" |
| Output Hp | 2 41/50 hp |
| Output Shaft | Shaft |
| Output Speed | 438 RPM |
| Output Style | Solid Output Shaft |
| Output Torque | 419 lbs.-in. |
| Overhung Load | 300 lbs. |
| Overhung Load Rating | 300 lbs. |
| Product Line | Ratio Multiplier |
| Reduction | Single |
| Reduction Type | Single |
| Service Factor | 1 |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 26.67 |
| Ship length (cm) | 27.15 |
| Ship width (cm) | 23.01 |
Product Variants
| Model | Output Dia. | Output Hp | Output Torque | Output Speed | Input Dia. | Housing Material | Max. Input Hp | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 708212L | 5/8" | 4.13 hp | 433 | 601 RPM | 5/8" | - | 4.21 hp | Aluminum | €864.70 | |
| 707082L | 1 3/8" | 9 87/100 hp | 1836 lbs.-in. | 339 RPM | 1 1/8" | Cast Iron | - | Cast Iron | €912.19 | |
| 707075L | 1 1/8" | 11.13 hp | 1621 | - | 1 1/8" | - | 11 7/20 hp | Cast Iron | €1,315.61 | |
| 707064L | 1 3/8" | 19 3/5 hp | 1412 lbs.-in. | 875 RPM | - | Cast Iron | - | Cast Iron | €912.19 | |
| 707081L | 1 1/8" | 9.87 hp | 1836 | - | 1 1/8" | - | 10.07 hp | Cast Iron | €1,315.61 | |
| 707063L | 1 1/8" | 19 3/5 hp | 1412 lbs.-in. | 875 RPM | - | Cast Iron | - | Cast Iron | €912.19 | |
| 707069L | 1 1/8" | 12 18/25 hp | 1357 | - | 1 1/8" | - | 12 49/50 hp | Cast Iron | €1,315.61 |
