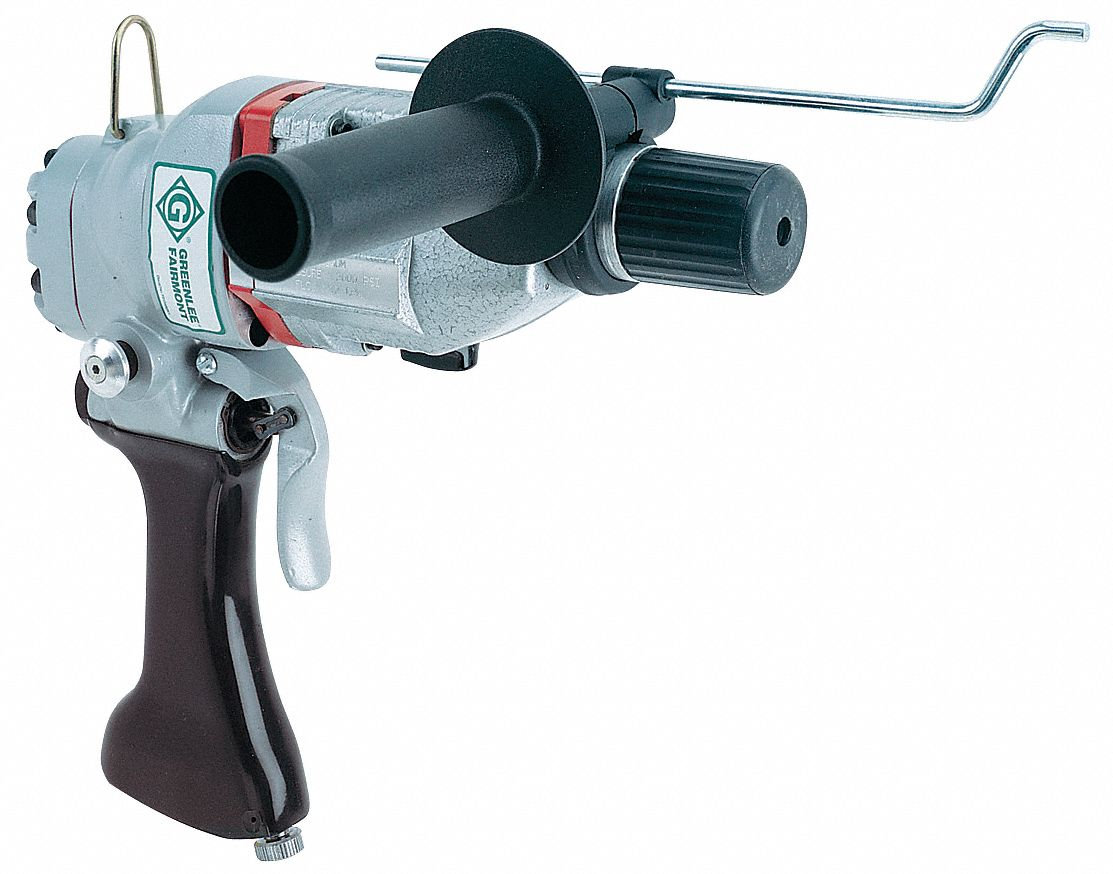

GREENLEE HID6506 Hydraulic Impact Hammer Drill, 1000 To 2000 psi Operating Pressure
Item: AE4XXKModel: HID6506Cross Ref: 5NWJ4
7 In Stock
Ships within 2 days via
10.00% off
€4,035.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Impact Hammer Drill |
| Blows Per Minute | 3400 BPM to 4800 BPM at 6.5 GPM |
| Capacity | Steel 1/2" (134 mm) Hole, Wood 1 1/16" (27 mm) Hole, Concrete 3/4" (19 mm) Hole, Core Bits 3" (76 mm) |
| Chuck | SDS Plus Bit Shanks |
| Chuck Style | SDS Plus |
| Drilling Capacity In Concrete | 3/4" |
| Drilling Capacity In Masonry | 3/4" |
| Drilling Capacity In Steel | 1/2" |
| Drilling Capacity In Wood | 1 1/16" |
| Handle Type | Pistol Grip |
| Height | 9 3/4" |
| Hydraulic Flow Range | 5-10 GPM |
| Hydraulic System Type | Closed Center And Open Center |
| Includes | Depth Rod |
| Length | 12" |
| Max. Back Pressure | 200 psi |
| Max. Flow | 10 GPM |
| Max. Flow Gpm | 10 |
| Max. Oil Temp. | 140°F |
| Max. Oil Temp. | 140 Degrees F |
| Maximum Blows Per Minute | 5400 BPM |
| Maximum Ideal Viscosity | 225 SUS |
| Maximum Operating Pressure | 2000 psi |
| Maximum Speed | 1100 RPM |
| Min. Flow (gpm) | 5 |
| Min. Flow (gpm) | 5 GPM |
| Minimum Blows Per Minute | 3400 BPM |
| Minimum Ideal Viscosity | 140 SUS |
| Minimum Operating Pressure | 1000 psi |
| Operating Pressure | 1000 psi to 2000 psi |
| Pressure Port | 3/4" SAE O-Ring |
| Pressure Port | 3/4"-16 SAE O Ring Thread |
| Pressure Port Size | 3/4"-16 |
| Pressure Port Type | O Ring Thread |
| Product Type | Impact Hammer Drill |
| Recommended Filtration (microns) | 10 |
| Recommended Filtration (microns) | 10 µm |
| Relief Valve Pressure Setting | 2000 psi |
| Return Port | 3/4"-16 SAE O-Ring |
| Return Port | 3/4" SAE O-Ring |
| Return Port Size | 3/4-16 |
| Return Port Type | O-Ring Thread |
| Reversible | Yes |
| Shank Type | SDS Plus |
| Speed | 775-1100 RPM AT 6.5 GPM |
| System | Super Spool Selector Control System |
| Tool Height | 9 3/4" |
| Tool Length | 12" |
| Tool Weight | 8.5 lbs. |
| Tool Width | 3 1/2" |
| Type | Rotary Impact |
| Width | 3 1/2" |
Shipping Info:
| Ship weight (kg) | 4.62 |
| Ship height (cm) | 18.54 |
| Ship length (cm) | 32 |
| Ship width (cm) | 32 |
| HS code | 8467895090 |
| Country of Origin | US |
Product Details:
- Impact hammer drill with a selector for drill or hammer / drill mode. Used to drill thru-holes, concrete anchor holes, piping and mechanical openings for construction and repair work (drill wood or steel with an auxiliary chuck)
- Adjustable flow control to prevent overspeeding and enable precise control on drilling speed
- Super spool selector control for both open- and closed-centre hydraulic systems
- Built-in slip clutch for protection against over-torque, eliminating any chances of damage due to overload
- Removable depth gauge and auxiliary handle for tight areas
