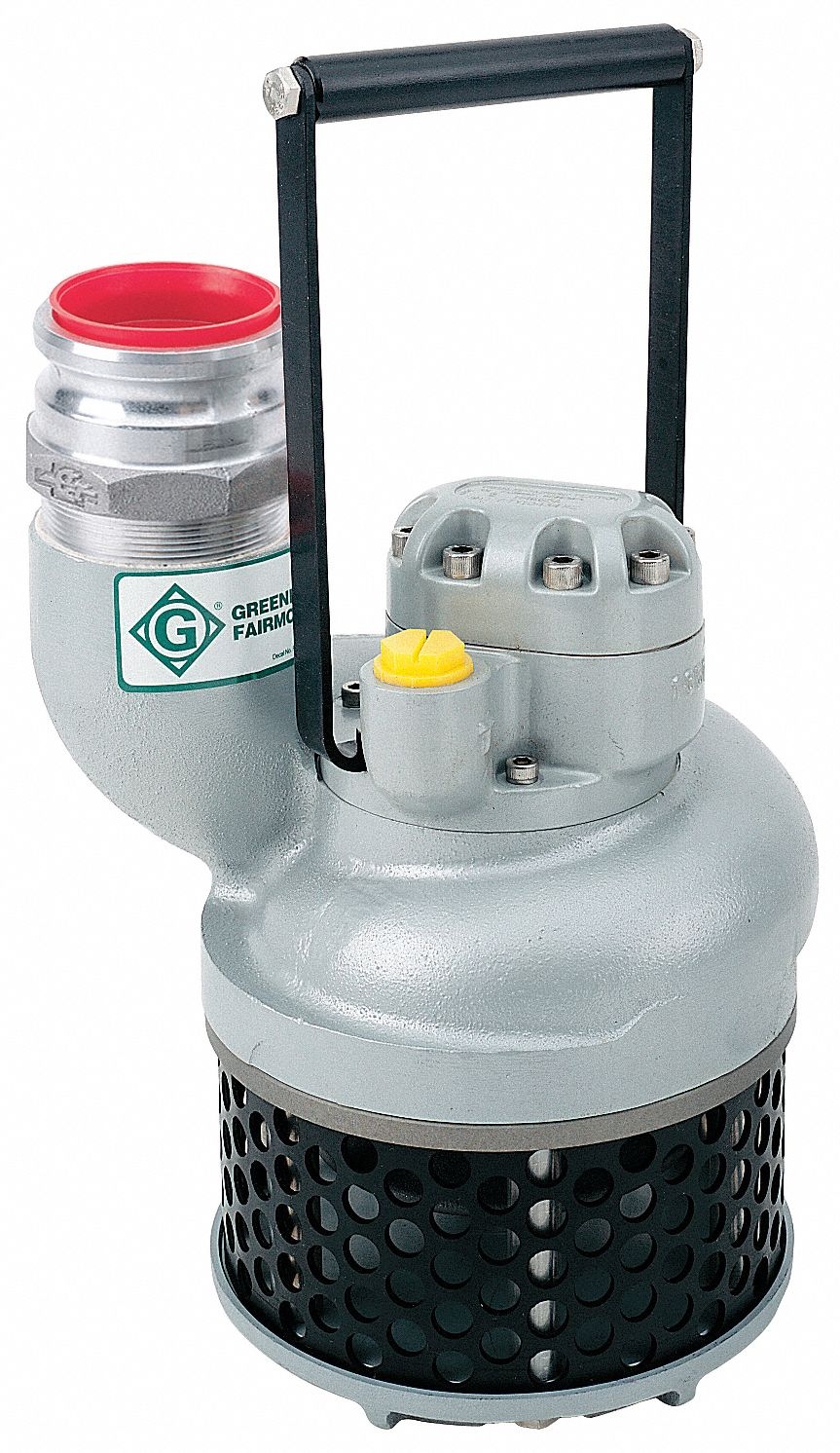

GREENLEE H4665A Compact Submersible Pump, 275 GPM Capacity, 5 To 8 GPM Flow, 2 Inch FNPT Discharge | AE4XXW 5NWK4

GREENLEE H4665A Compact Submersible Pump, 275 GPM Capacity, 5 To 8 GPM Flow, 2 Inch FNPT Discharge

Item: AE4XXWModel: H4665ACross Ref: 5NWK4
7 In Stock

Ships within 2 days via

€5,420.92
10.00% off
€4,878.83 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Submersible Water Pump
Base Material Aluminum
Capacity 0 GPM to 275 GPM
Diameter 7 1/2"
Discharge Size 2"
Discharge Type NPT Female
Flow Rate 5-8 GPM
Head Height 10 ft.
Height 12 1/2"
Housing Aluminum
Housing Material Aluminum
Hydraulic Pressure Port 9/16"-18 Sae O-Ring
Hydraulic Return Port 3/4"-16 SAE O-Ring
Hydraulic System Type Open Or Closed Center
Impeller Material Stainless Steel
Includes Cam Lock Coupling
Max. Back Pressure 200 psi
Max. Ft. Of Head @ 7 Gpm 108 ft.
Max. Ft. Of Head @ 8 Gpm 138 ft.
Max. Hydraulic Flow 8 GPM
Max. Oil Pressure 2000 psi
Max. Oil Temp. 140 F
Max. Oil Temp. 140°F
Max. Water Gpm @ 7 Gpm Oil Flow 260 GPM
Max. Water Gpm @ 8 Gpm Oil Flow 275 GPM
Min. Hydraulic Flow 5 GPM
Opening Size 3/8"
Operating Pressure 0 psi to 2000 psi
Pressure Port Size 9/16-18
Pressure Port Type O-Ring
Pump Discharge Port 2"
Pump Inlet Port 1 15/16"
Recommended Filtration (microns) 10
Recommended Filtration (microns) 10 µm
Recommended Hydraulic Flow 7 GPM
Relief Valve Psi Setting 2000 psi
Return Port Size 3/4-16
Return Port Type O-Ring
Strainer 2 5/8" x 5 5/8"
Suction Size 1 15/16"
System Open And Closed Center System
Top Material Aluminum
Type Compact, Water
Viscosity (sus @ 100 F) 140 min. to 225 min.
Viscosity (sus @210 F) 40 min.
Weight 9 lbs.
Width 7 1/2"

Shipping Info:

Ship weight (kg) 4.8
Ship height (cm)19.05
Ship length (cm)33.53
Ship width (cm)17.78
HS code8413702004
Country of OriginUS

Product Details:

    • Hydraulically driven submersible water pump to handle high flow rates of water in portable firefighting, barge & ship cargo pumping, tank stripping, irrigation and hazardous oil pumping in fire zones.
    • Can draw water from a depth of 1-3/4 inches and provide water head up to 138 ft and a maximum flow rate of 275 gpm
    • Runs in both open and closed centred hydraulic systems with a max oil pressure of 2000 psi and oil flow rates between 5 - 8 gpm
    • Has aluminium housing for high output to weight ratio and a stainless-steel impeller for minimum wear
    • Features 9/16-18 inch pressure port and 3/4-16 inch return port with SAE O-rings for leak-proof hydraulic connections
    • Equipped with a carrying handle for portability and a cam lock coupling for quick connection and disconnection of hydraulic hoses
    • Does not require external priming source and can run dry without any damage to internal motor components
