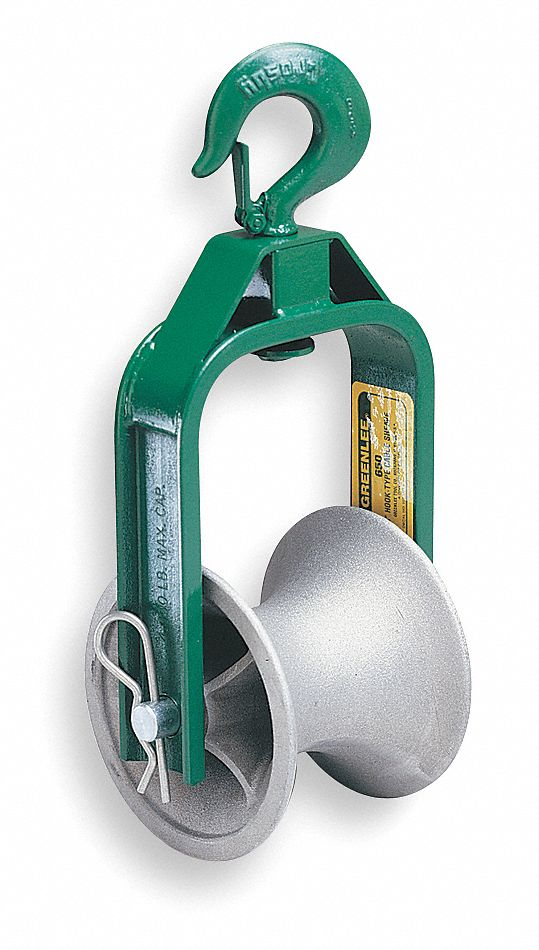

GREENLEE 650 Cable Puller Hook Sheave, 6 Inch Outside Dia., 4000 lbs. Capacity
Item: AD7YPWModel: 650Cross Ref: 4HEA4
7 In Stock
Ships within 2 days via
10.00% off
€529.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Cable Puller Sheave |
| Application | Electrical Cable Pull |
| Bearing Type | Self Lubricating |
| Bore Diameter | 0.76" |
| Capacity | 4000 lbs. |
| Features | Self Lubricating Bearings, Strong Welded Frames |
| Frame Material | Steel |
| Groove | 2 1/2" |
| Included | 16797 Upc 16797 Sheave Pin, 50302 Upc 50302 Sheave Pin Clip, 15362 Upc 15362 Sheave, 16798 Upc 16798 Sheave Bushing, 16799 Upc 16799 Yoke Frame |
| Includes | (2) Sheave Bushings, (2) Sheave Pin Clips, Sheave, Sheave Pin, Yoke Frame |
| Material | Aluminum Alloy |
| Max. Capacity | 4000 lbs. |
| Outer Dia. | 6" |
| Pitch Dia. | 6" To 3" |
| Product Type | Hook Sheave |
| Roller Material | Aluminum |
| Sheave Dia. | 6" |
| Sheave Features | Self Lubricating Bearings |
| Sheave Width | 5" |
| Type | Sheave Assembly |
Shipping Info:
| Ship weight (kg) | 4.43 |
| Ship height (cm) | 19.3 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 24.13 |
| HS code | 8425390100 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Capacity | Capacity | Type | Sheave Width | Bearing Type | Frame Material | Roller Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
651 | 4000 lbs. | 4000 lbs. | Sheave Assembly | 5" | Self Lubricating | Steel | Aluminum | €823.45 | |
|
652 | 4000 lbs. | 4000 lbs. | Sheave Assembly | 5" | Self Lubricating | Steel | Aluminum | €1,049.70 | |
|
653 | 4000 lbs. | 4000 lbs. | Sheave Assembly | 5" | Self Lubricating | Steel | Aluminum | €1,469.16 | |
 |
441-2 | 1750 lbs. | 1750 Lbs. (7.7 Kn) At 15°, 900 Lbs. (4 Kn) At 30°, 650 Lbs. (2.8 Kn) At 45°, 500 Lbs. (2.2 Kn) At 60°, 450 Lbs. (2 Kn) At 75°, 450 Lbs. (2 Kn) At 90° | Sheave Assembly | 5" | - | - | - | €896.44 | |
 |
441-6 | 6500 lbs. | - | Sheave Assembly | 5" | - | - | - | €1,801.10 | |
 |
441-4 | 6500 lbs. | 6500 Lbs. (28.900 Kn) At 15°, 6500 Lbs. (28.900 Kn) At 30°, 5200 Lbs. (23.100Kn) At 45°, 4200 Lbs. (18.600 Kn) At 60°, 3650 Lbs. (16.200 Kn) At 75°, 3500 Lbs. (15.500 Kn) At 90° | Sheave Assembly | 5" | - | - | - | €1,201.47 | |
 |
441-3 | 6050 lbs. | 6050 Lbs. (26.900 Kn) At 15°, 3150 Lbs. (14.000 Kn) At 30°, 2200 Lbs. (9.700 Kn) At 45°, 1800 Lbs. (8.000 Kn) At 60°, 1600 Lbs.(7.100 Kn) At 75°, 1550 Lbs. (6.800 Kn) At 90° | Sheave Assembly | 5" | - | - | - | €1,082.67 |
