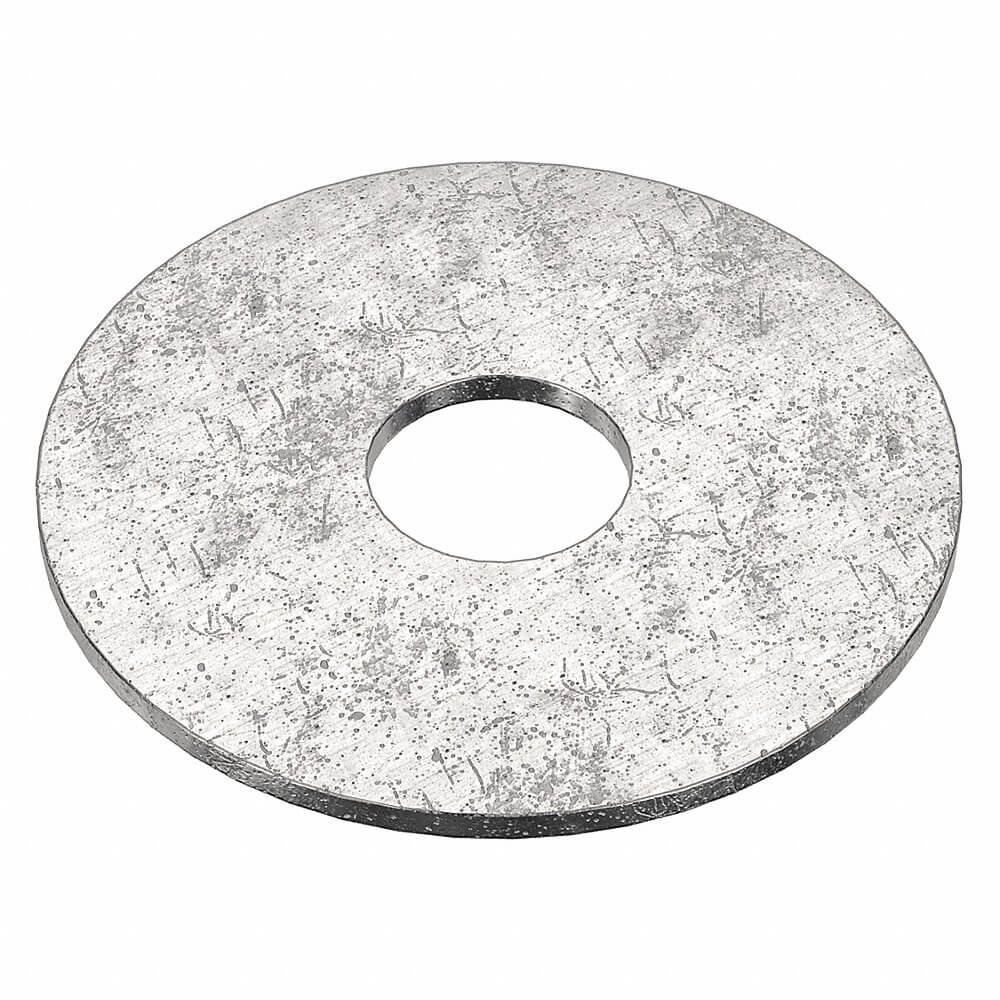

GRAINGER U55530.050.0175 Fender Washer, 1/2 In Fits Bolt Size, Oversized, 0.535 In I.D., Pln, -0.018 to +0.015 In Thk. Tol.
Item: AH6FFBModel: U55530.050.0175Cross Ref: 35YV30
7 In Stock
Ships within 2 days via
10.00% off
€29.13 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fender Washer |
| Approx. Pkg. Qty. | 25 |
| Color | Silver |
| Dimensional Standards | Asme B18.21.1 |
| Finish | Plain |
| Fits Bolt Sizes | 1/2" |
| Flat Washer Type | Oversized |
| For Screw Size | 1/2" |
| Grade | Grade 316 |
| Inside Dia. | 0.535" |
| Inside Diameter Tolerance | -0.01" to +0.01" |
| Made In North America | No |
| Material | Stainless Steel |
| Material Grade/class | 316 |
| Maximum Temperature | 302°F |
| Maximum Thickness | 2/25" |
| Minimum Temperature | -58°F |
| Minimum Thickness | 0.047" |
| Outside Dia. | 1 3/4" |
| Outside Diameter Tolerance | -0.008" to +0.029" |
| Reach Compliant | Yes |
| Removable | Yes |
| Resistance Properties | Corrosion Resistant |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | Not Applicable |
| Thickness | 0.065" |
| Thickness Tolerance | -0.018" to +0.015" |
| Washer Type | Oversized Washer |
| Washer Type | Fender Washer |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
