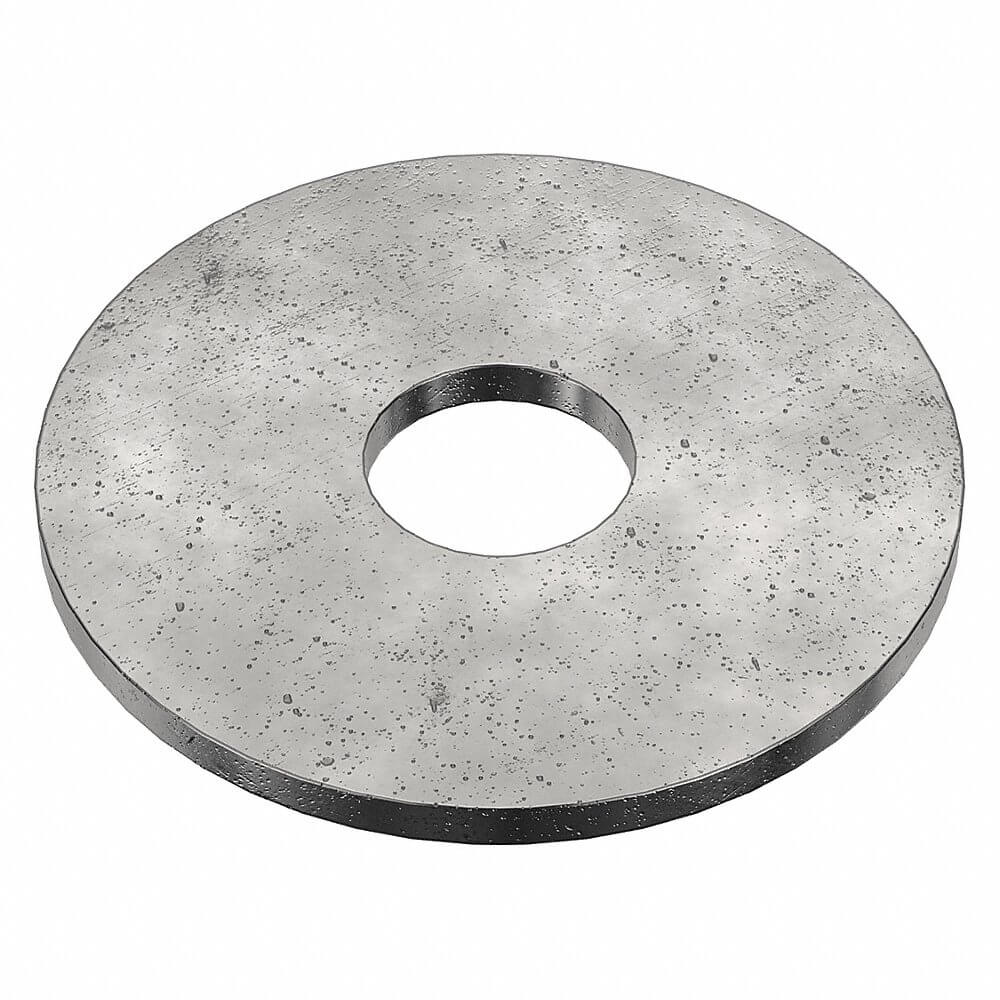

GRAINGER U38213.037.0150 Fender Washer, 3/8 In Fits Bolt Size, Oversized, 13/32 In I.D., 1/16 In Thk., 1 1/2 In O.D.
Item: AH6FDGModel: U38213.037.0150Cross Ref: 35YU88
7 In Stock
Ships within 2 days via
5.00% off
€19.69 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fender Washer |
| Approx. Pkg. Qty. | 100 |
| Color | Silver |
| Dimensional Standards | Asme B18.21.1 |
| Finish | Plain |
| Fits Bolt Size | 3/8" |
| Flat Washer Type | Oversized |
| For Screw Size | 3/8" |
| Inside Dia. | 0.406" , 13/32" |
| Material | Steel |
| Material Grade/class | Ungraded |
| Max. Temp. | 302°F |
| Max. Thickness | 0.065" |
| Min. Temp. | -58°F |
| Min. Thickness | 0.065" |
| Outside Dia. | 1 1/2" |
| System Of Measurement | Imperial |
| Temp. | -58°F to +302°F |
| Thickness | 1/16" |
| Thickness Tolerance | -0.047" to +0.08" |
| Washer Type | Oversized Washer |
| Washer Type | Fender Washer |
Shipping Info:
| Ship weight (kg) | 0.97 |
| Ship height (cm) | 4.32 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 7.62 |
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Material Grade/class | Thickness Tolerance | Inside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U38403.100.0001 | 1" | 0.156" | 0.188" | 0.188" | 1" | Case Hardened | 0.17" to 0.208" | 1.093" to 1.024" | 5 | €8.39 | |
 |
U38403.112.0001 | 1 1/8" | 0.156" | 0.219" | 0.219" | 1 1/8" | Case Hardened | 0.19" to 0.248" | 1.149" to 1.186" | 5 | €11.97 | |
 |
U38403.125.0001 | 1 1/4" | 0.281" | 0.281" | 0.281" | 1 1/4" | Case Hardened | 0.265" to 0.297" | 1.274" to 1.311" | 5 | €13.39 | |
 |
Z9285 | 1/4" | 0.14" | 0.13" | 0.15" | 1/4" | Grade 2 | -0.02" to +0.005" | -0.01" to +0.01" | 10 | €51.77 | |
 |
Z9286 | 5/16" | 0.14" | 0.13" | 0.15" | 5/16" | Grade 2 | -0.02" to +0.005" | -0.01" to +0.01" | 10 | €28.27 | |
 |
Z9287 | 3/8" | 0.14" | 0.13" | 0.15" | 3/8" | Grade 2 | -0.02" to +0.005" | -0.01" to +0.01" | 5 | €14.13 | |
 |
Z9289 | 1/2" | 0.156" | 0.146" | 0.166" | 1/2" | Grade 2 | -0.02" to +0.005" | -0.01" to +0.01" | 5 | €24.31 |
