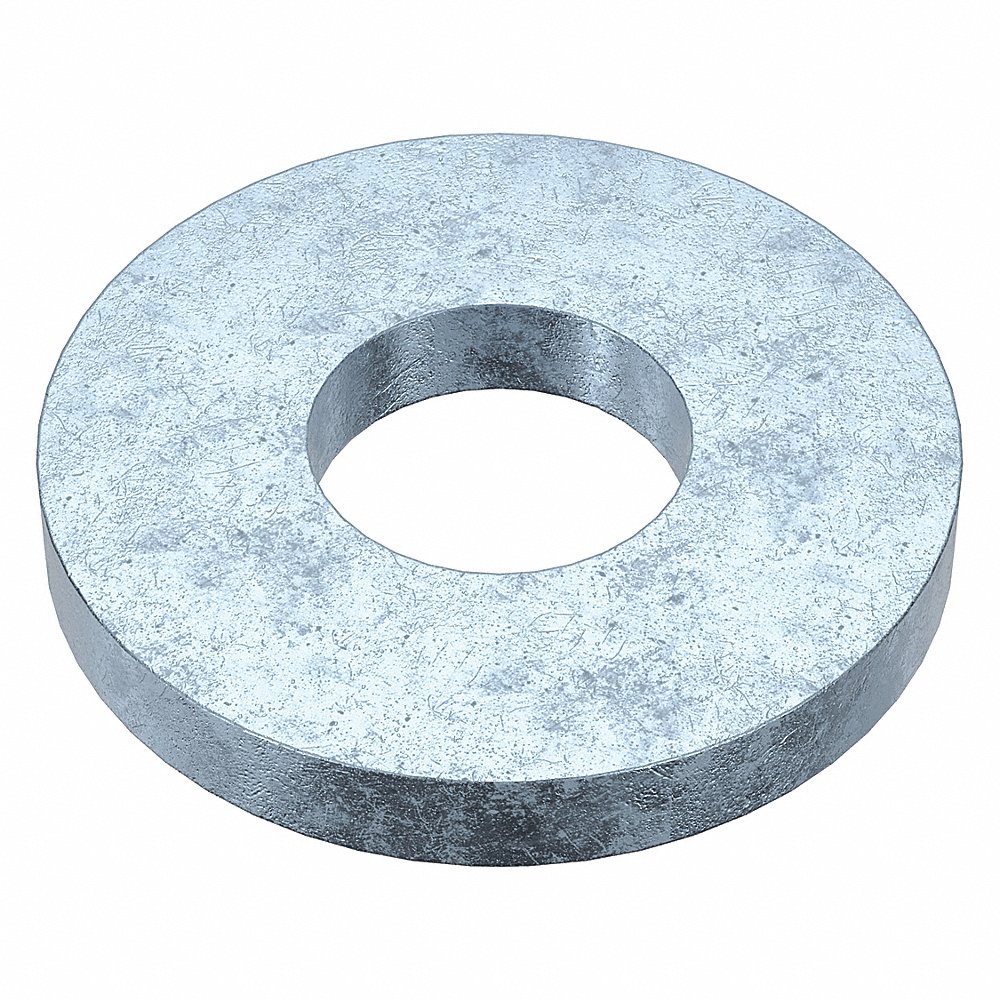

GRAINGER U38160.013.0002 Fender Washer, 6 Fits Bolt Size, Oversized, 5/32 In I.D., 9/16 In O.D., Zn Plated
Item: AG9WMPModel: U38160.013.0002Cross Ref: 22UF24
7 In Stock
Ships within 2 days via
10.00% off
€5.92 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fender Washer |
| Dimensional Standards | ASME B18.22.1 |
| Finish | Zinc Plated |
| Fits Bolt Sizes | #6 |
| Flat Washer Type | Oversized |
| For Screw Size | #6 |
| Inside Dia. | 5/32" |
| Inside Diameter | 0.156" |
| Inside Diameter Tolerance | 0.151" to 0.164" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Maximum Temperature | 350°C |
| Maximum Thickness | 0.047" |
| Minimum Temperature | -58°C |
| Minimum Thickness | 0.047" |
| Outside Dia. | 9/16" |
| Outside Diameter Tolerance | 0.558" to 0.578" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Thickness | 0.047" |
| Thickness Tolerance | 0.034" to 0.58" |
| Washer Type | Oversized Washer |
| Washer Type | Fender Washer |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
Product Variants
| Product | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Hardness | Color | Temp. Range | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1JLP5 | 5/16" | 11/32" | 2" | 0.051" | +0.029" | Rockwell B40 | - | - | 50 | €36.92 | |
 |
U38130.043.0001 | 7/16" | 1/2" | 1 1/4" | 0.083" | 0.064" to 0.104" | - | - | - | 50 | €11.79 | |
 |
U38130.050.0001 | 1/2" | 0.563" | 1 3/8" | 0.109" | 0.086" to 0.132" | - | - | - | 50 | €13.62 | |
 |
U38130.056.0001 | 9/16" | 5/8" | 1 15/32" | 0.109" | 0.086" to 0.132" | - | - | - | 25 | €9.47 | |
 |
U38130.062.0001 | 5/8" | 11/16" | 1 3/4" | 0.134" | 0.108" to 0.16" | - | - | - | 25 | €10.95 | |
 |
U38130.087.0001 | 7/8" | 15/16" | 2 1/4" | 0.156" | 0.136" to 0.192" | - | - | - | 10 | €11.89 | |
 |
U38130.100.0001 | 1" | 1.063" | 2 1/2" | 0.156" | 0.136" to 0.192" | - | - | - | 5 | €8.02 |
