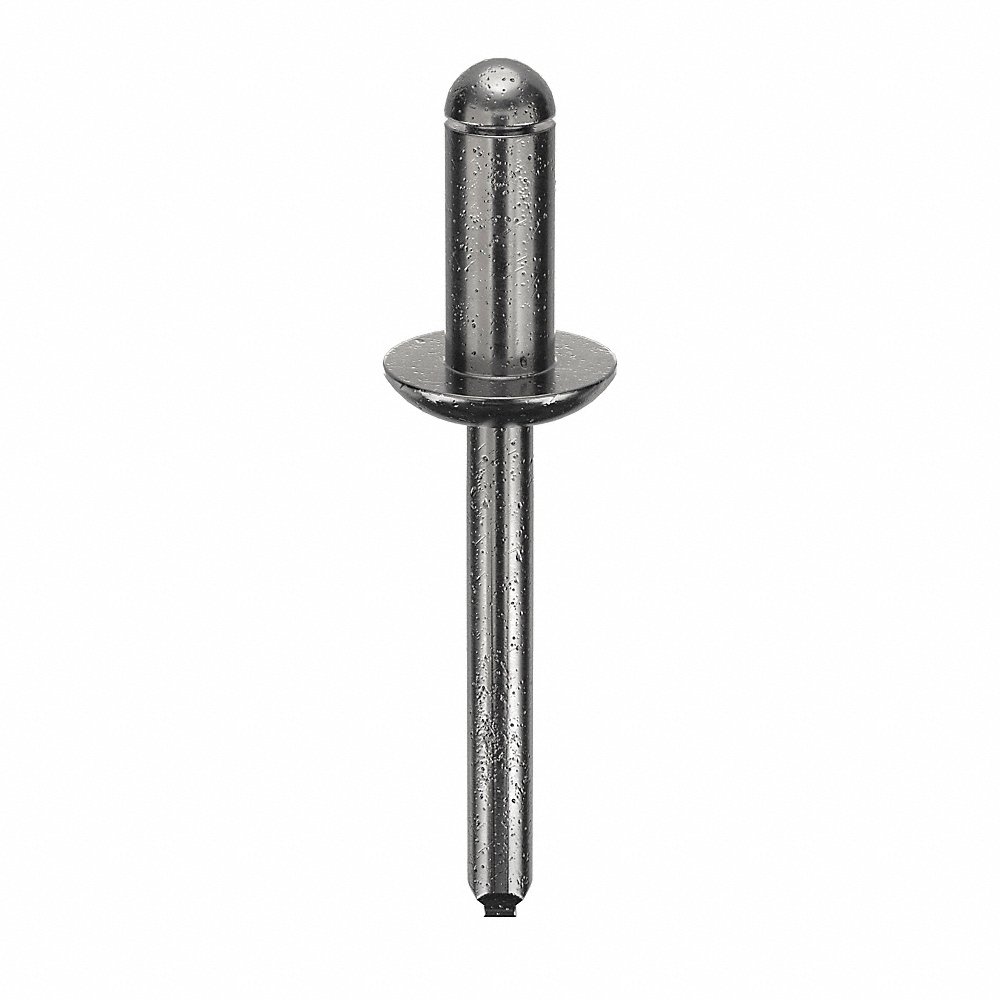

GRAINGER U34320.025.0086 Blind Rivet Structural, 1/4 In Rivet Dia., Steel, 14/25 In Rivet Lg., 0.118 In Head Ht.
Item: AG2XBNModel: U34320.025.0086Cross Ref: 32MR67
7 In Stock
Ships within 2 days via
5.00% off
€67.16 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blind Rivet Structural |
| Blind Rivet Type | Structural |
| Body Length | 9/16" |
| Body Length Tolerance | -0.004" to +0.02" |
| Body Material | Steel |
| Color | Gray |
| Drill Size | G |
| Finish | Plain |
| Grip Range | 0.08" to 0.375" |
| Head Angle | 90° |
| Head Dia. | 0.53" , 17/32" |
| Head Dia. Tolerance | -0.025" to +0.025" |
| Head Height | 0.118" |
| Head Style | Dome |
| Head Type | Dome |
| Hole Size | 0.261" to 0.276" |
| Ifi Grade | Grade IFI-134-30 |
| Mandrel Material | Steel |
| Max. Hole Dia. | 0.276" |
| Max. Material Thickness | 3/8" |
| Min. Hole Dia. | 0.261" |
| Min. Material Thickness | 5/64" |
| Overall Length | 2" |
| Product Type | Blind Rivet |
| Rivet Dia. | 1/4" |
| Rivet Length | 14/25" |
| Rivet Material | Steel |
| Rivet Number | 86 |
| Rivet Type | Open End |
| Shank Dia. | 0.25" |
| Shear Strength | 2243 lbs. |
| Single Shear Strength | 2243 lbs. |
| System Of Measurement | Imperial |
| Tensile Strength | 1839 lbs. |
Shipping Info:
| Ship weight (kg) | 0.88 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 8308203000 |
Product Variants
| Product | Model | Rivet Length | Head Dia. | Rivet Material | Mandrel Material | Grade | Single Shear Strength | Tensile Strength | Drill Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AD810ABS203 | 0.85" | 1/2" | Aluminum | Aluminum | Grade 5052 | 600 lbs. | 750 lbs. | F | 100 | €51.31 | |
 |
AD810BS203 | 0.85" | 1/2" | Aluminum | Steel | Grade 5056 | 600 lbs. | 1200 lbs. | F | 100 | €36.73 | |
 |
AD812ABS203 | 0.975" | 1/2" | Aluminum | Aluminum | Grade 5052 | 600 lbs. | 750 lbs. | F | 100 | €41.58 | |
 |
AD812BS203 | 0.975" | 1/2" | Aluminum | Steel | Grade 5056 | 600 lbs. | 1200 lbs. | F | 100 | €40.10 | |
 |
AD84ABS203 | 0.475" | 1/2" | Aluminum | Aluminum | Grade 5052 | 600 lbs. | 750 lbs. | F | 100 | €27.85 | |
 |
AD84BS203 | 0.475" | 1/2" | Aluminum | Steel | Grade 5056 | 600 lbs. | 1200 lbs. | F | 100 | €18.35 | |
 |
AD86ABS203 | 3/5" | 1/2" | Aluminum | Aluminum | Grade 5052 | 600 lbs. | 750 lbs. | F | 100 | €28.18 |
