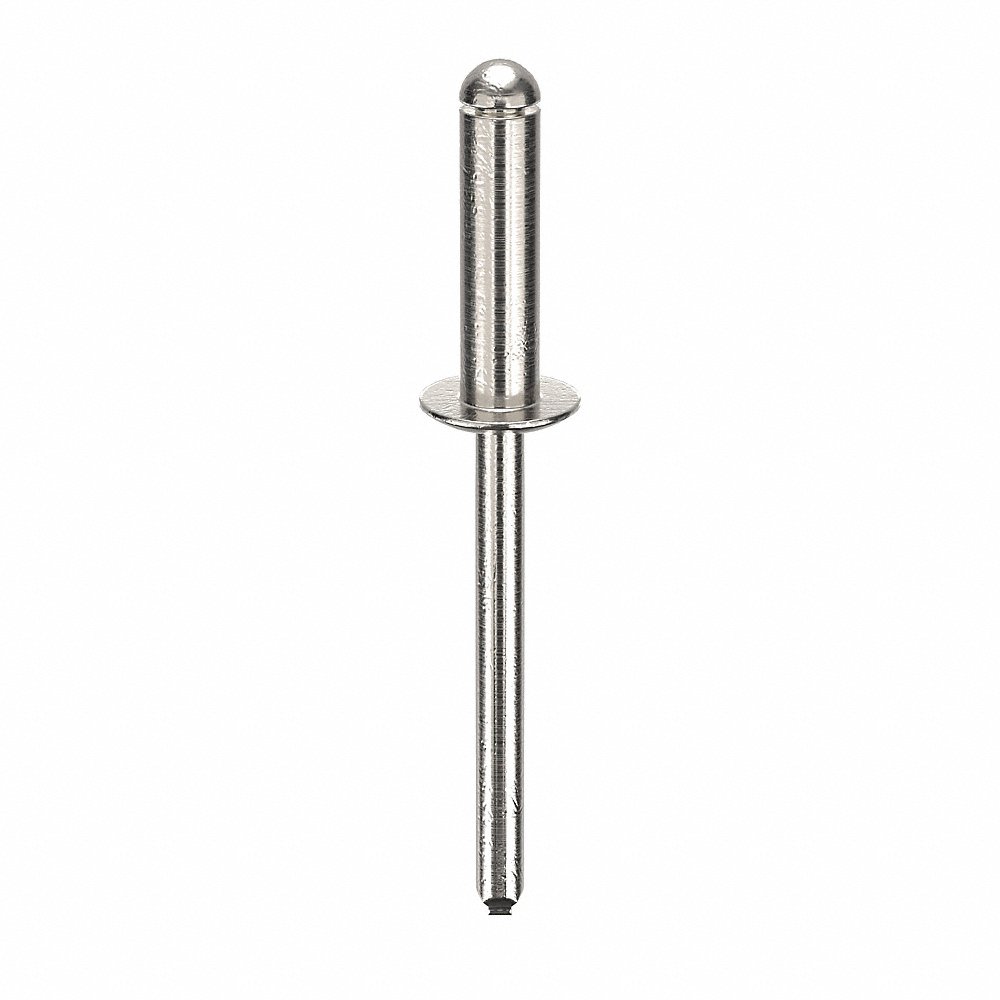

GRAINGER U34125.018.6668 Blind Rivet Multigrip, 3/16 In Rivet Dia., Alu, 0.689 In Rivet Lg., 0.06 In Head Ht., Steel
Item: AG2WYAModel: U34125.018.6668Cross Ref: 32MN78
7 In Stock
Ships within 2 days via
10.00% off
€34.99 /pkg. of 250
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blind Rivet Multigrip |
| Blind Rivet Type | Multigrip Open End |
| Body Length | 11/16" |
| Body Length Tolerance | -0.004" to +0.02" |
| Body Material | Aluminum |
| Color | Gray |
| Drill Size | #11 |
| Finish | Plain |
| Grade | Grade 5052 |
| Grip Range | 0.315" to 0.5" |
| Head Angle | 90° |
| Head Dia. | 0.356" to 0.394" |
| Head Diameter | 3/8" |
| Head Diameter Tolerance | -0.019" to +0.019" |
| Head Height | 0.06" |
| Head Style | Dome |
| Head Type | Dome |
| Hole Size | 0.192" to 0.196" |
| Ifi Grade | Grade IFI-116-19 |
| Mandrel Material | Steel |
| Maximum Hole Diameter | 0.196" |
| Maximum Material Thickness | 1/2" |
| Minimum Hole Diameter | 0.192" |
| Minimum Material Thickness | 5/16" |
| Overall Length | 2" |
| Product Type | Blind Rivet |
| Rivet Dia. | 3/16" |
| Rivet Length | 0.689" |
| Rivet Material | Aluminum |
| Rivet Number | 66 |
| Rivet Type | Open End |
| Shank Diameter | 0.188" |
| Shear Strength | 292 lbs. |
| Single Shear Strength | 292 lbs. |
| Standards | Ifi 116 |
| System Of Measurement | Imperial |
| Tensile Strength | 471 lbs. |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 8308206000 |
Product Details:
- 32MN78 is a suggested replacement of 5RTZ2
