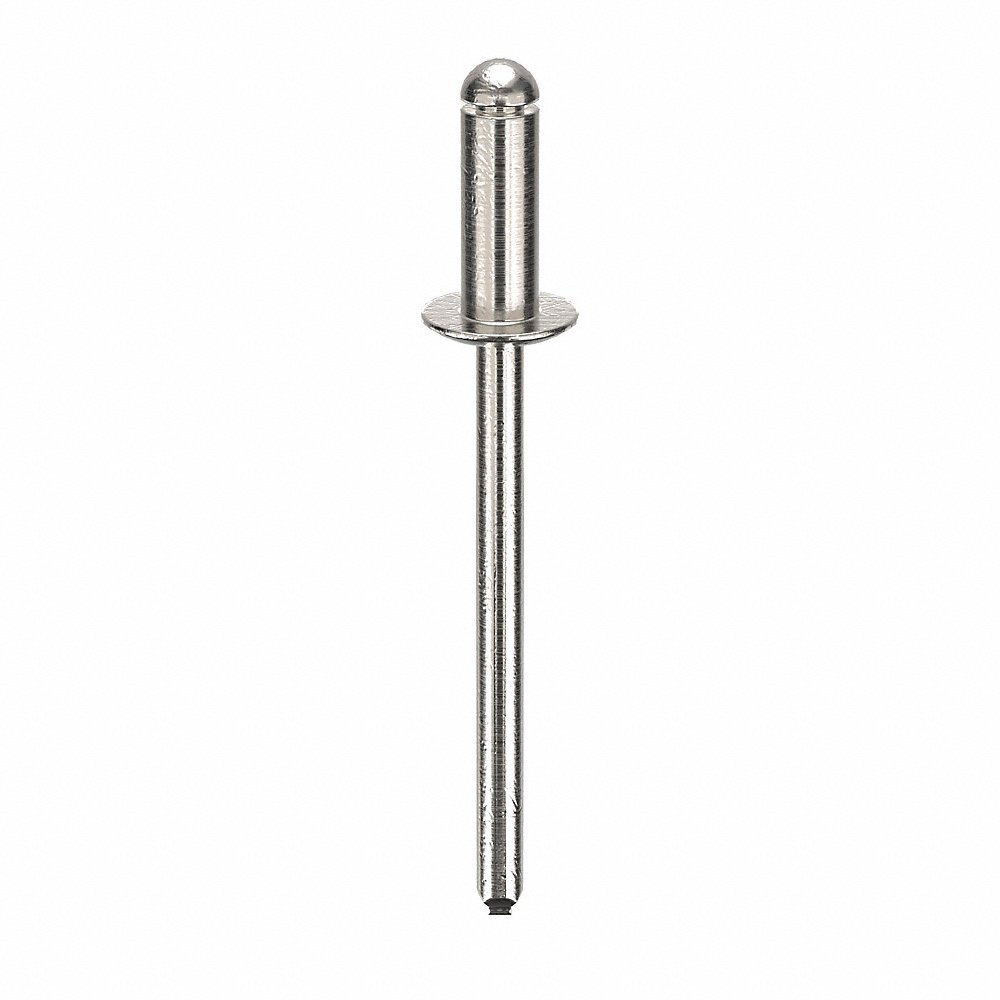

GRAINGER U34125.015.5254 Blind Rivet Multigrip, 5/32 In Rivet Dia., Alu, 0.413 In Rivet Lg., 0.05 In Head Ht.
Item: AG2WXPModel: U34125.015.5254Cross Ref: 32MN68
7 In Stock
Ships within 2 days via
5.00% off
€28.69 /pkg. of 500
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blind Rivet Multigrip |
| Blind Rivet Type | Multigrip Open End |
| Body Length | 13/32" |
| Body Length Tolerance | -0.004" to +0.02" |
| Body Material | Aluminum |
| Color | Gray |
| Drill Size | #20 |
| Finish | Plain |
| Grade | Grade 5052 |
| Grip Range | 0.063" to 0.252" |
| Head Angle | 90° |
| Head Dia. | 0.296" to 0.328" , 5/16" |
| Head Dia. Tolerance | -0.016" to +0.016" |
| Head Height | 0.05" |
| Head Style | Dome |
| Head Type | Dome |
| Hole Size | 0.16" to 0.164" |
| Ifi Grade | Grade IFI-116-19 |
| Mandrel Material | Steel |
| Max. Hole Dia. | 0.164" |
| Max. Material Thickness | 1/4" |
| Min. Hole Dia. | 4/25" |
| Min. Material Thickness | 1/16" |
| Overall Length | 1 23/32" |
| Product Type | Blind Rivet |
| Rivet Dia. | 5/32" |
| Rivet Length | 0.413" |
| Rivet Material | Aluminum |
| Rivet Number | 52 |
| Rivet Type | Open End |
| Shank Dia. | 0.156" |
| Shear Strength | 224 lbs. |
| Single Shear Strength | 224 lbs. |
| System Of Measurement | Imperial |
| Tensile Strength | 359 lbs. |
Shipping Info:
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 8308206000 |
Product Variants
| Product | Model | Rivet Length | Head Dia. | Rivet Material | Mandrel Material | Grade | Single Shear Strength | Tensile Strength | Drill Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AD52-54BS201 | 2/5" | 5/16" | Aluminum | Steel | Grade 5052 | 250 lbs. | 360 lbs. | #20 | 500 | €66.66 | |
 |
AD52ABS201 | 0.275" | 5/16" | Aluminum | Aluminum | Grade 5052 | 225 lbs. | 350 lbs. | #20 | 500 | €36.65 | |
 |
AD52BS201 | 0.275" | 5/16" | Aluminum | Steel | Grade 5056 | 225 lbs. | 490 lbs. | #20 | 500 | €41.55 | |
 |
AD53ABS201 | 0.338" | 5/16" | Aluminum | Aluminum | Grade 5052 | 225 lbs. | 350 lbs. | #20 | 500 | €35.28 | |
 |
AD53BS201 | 0.338" | 5/16" | Aluminum | Steel | Grade 5056 | 225 lbs. | 490 lbs. | #20 | 500 | €40.20 | |
 |
AD54ABS201 | 2/5" | 5/16" | Aluminum | Aluminum | Grade 5052 | 225 lbs. | 350 lbs. | #20 | 500 | €33.19 | |
 |
AD54BS201 | 2/5" | 5/16" | Aluminum | Steel | Grade 5056 | 225 lbs. | 490 lbs. | #20 | 500 | €40.26 |
