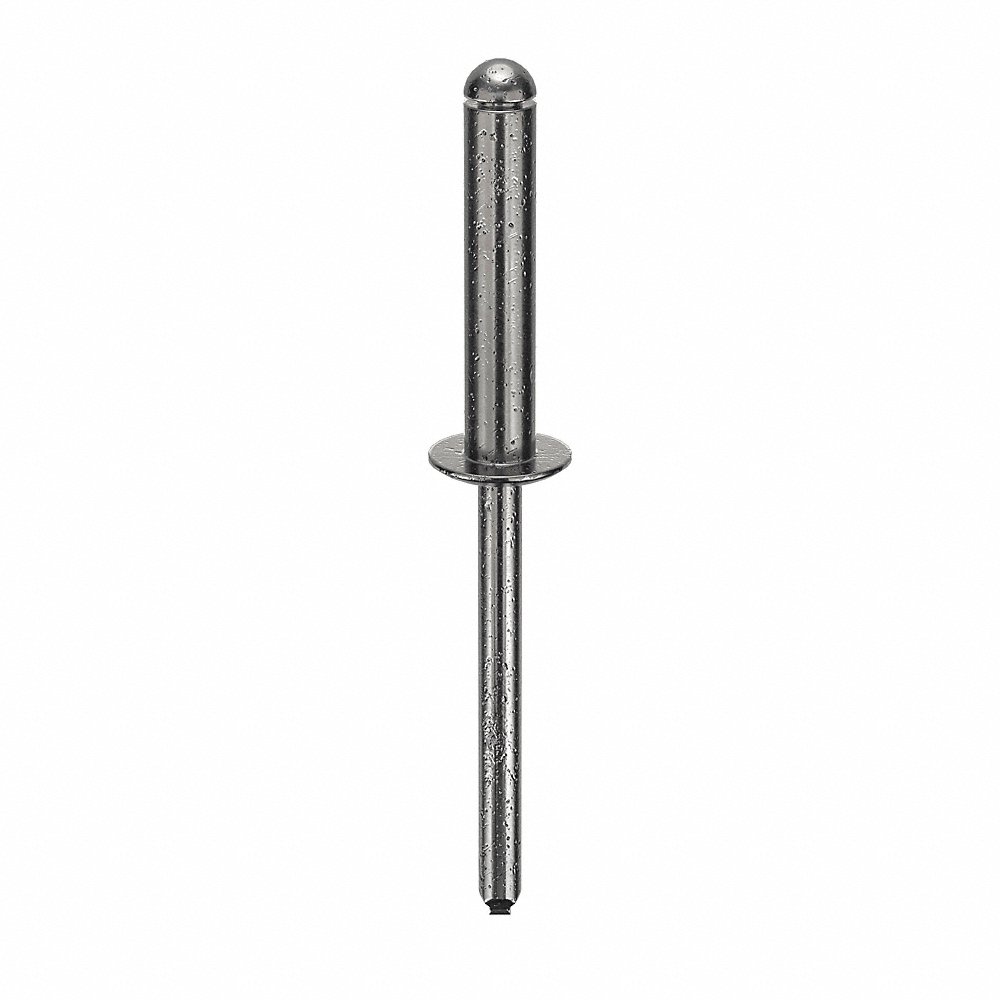

GRAINGER U33900.018.6961 Blind Rivet Multigrip, 3/16 In Rivet Dia., Steel, 0.937 In Rivet Lg., 0.06 In Head Ht.
Item: AG2WZEModel: U33900.018.6961Cross Ref: 32MP24
7 In Stock
Ships within 2 days via
5.00% off
€55.02 /pkg. of 250
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blind Rivet Multigrip |
| Blind Rivet Type | Multigrip Open End |
| Body Length | 15/16" |
| Body Length Tolerance | -0.004" to +0.02" |
| Body Material | Steel |
| Color | Gray |
| Drill Size | #11 |
| Finish | Plain |
| Grip Range | 0.5" to 0.689" |
| Head Angle | 90° |
| Head Dia. | 0.356" to 0.394" , 3/8" |
| Head Dia. Tolerance | -0.019" to +0.019" |
| Head Height | 0.06" |
| Head Style | Dome |
| Head Type | Dome |
| Hole Size | 0.192" to 0.196" |
| Ifi Grade | Grade IFI-116-30 |
| Mandrel Material | Steel |
| Max. Hole Dia. | 0.196" |
| Max. Material Thickness | 9/16" |
| Min. Hole Dia. | 0.192" |
| Min. Material Thickness | 1/2" |
| Overall Length | 2 1/8" |
| Product Type | Blind Rivet |
| Rivet Dia. | 3/16" |
| Rivet Length | 0.937" |
| Rivet Material | Steel |
| Rivet Number | 69 |
| Rivet Type | Open End |
| Shank Dia. | 0.188" |
| Shear Strength | 583 lbs. |
| Single Shear Strength | 583 lbs. |
| System Of Measurement | Imperial |
| Tensile Strength | 695 lbs. |
Shipping Info:
| Ship weight (kg) | 1.44 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 8308203000 |
Product Variants
| Product | Model | Rivet Length | Head Dia. | Rivet Material | Mandrel Material | Grade | Single Shear Strength | Tensile Strength | Drill Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AD610ABS200 | 4/5" | 3/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €47.59 | |
 |
AD610BS200 | 4/5" | 3/8" | Aluminum | Steel | Grade 5052 | 315 lbs. | 720 lbs. | #11 | 250 | €33.58 | |
 |
AD612ABS200 | 0.925" | 3/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €42.93 | |
 |
AD612BS200 | 0.925" | 3/8" | Aluminum | Steel | Grade 5056 | 315 lbs. | 720 lbs. | #11 | 250 | €34.18 | |
 |
AD614ABS200 | 1.05" | 3/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €95.00 | |
 |
AD616ABS200 | 1.175" | 3/8" | Aluminum | Aluminum | Grade 5052 | 315 lbs. | 500 lbs. | #11 | 250 | €69.82 | |
 |
AD616BS200 | 1.175" | 3/8" | Aluminum | Steel | Grade 5056 | 315 lbs. | 720 lbs. | #11 | 250 | €47.46 |
