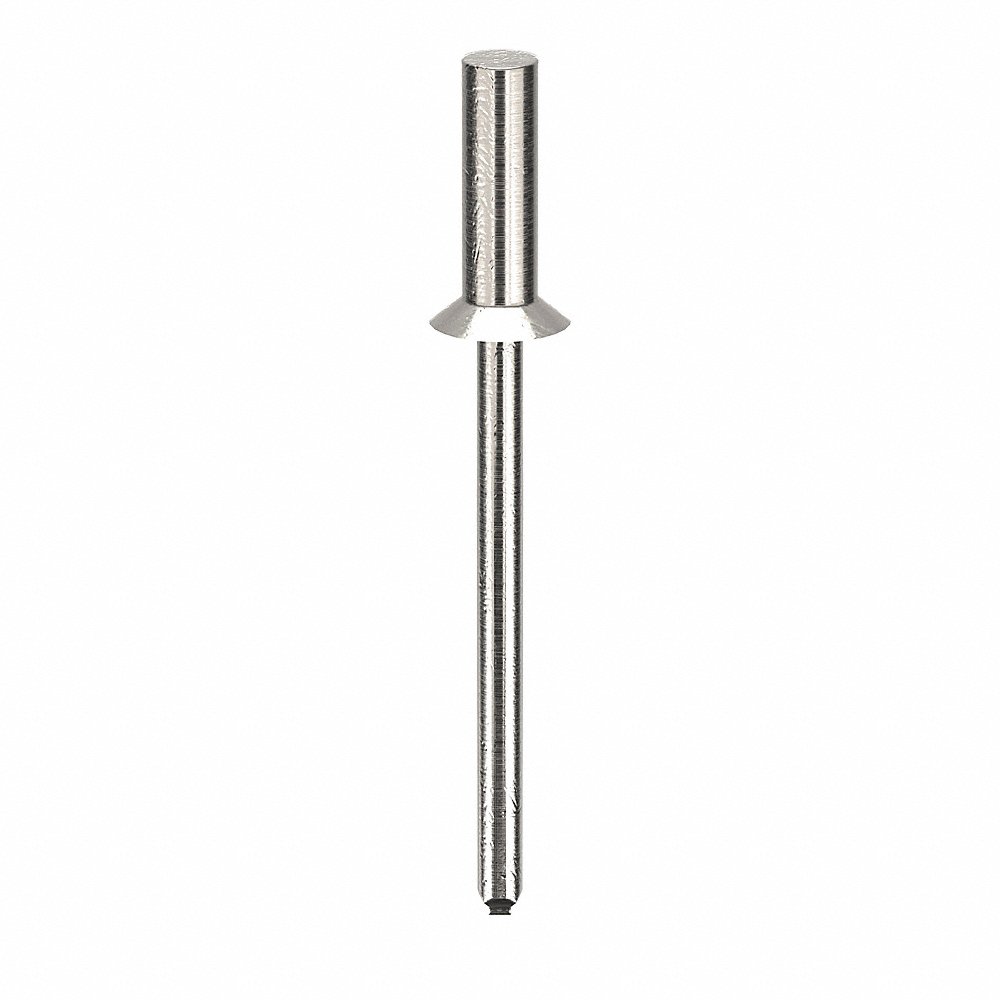

GRAINGER U33620.012.0042 Blind Rivet, 1/8 In Rivet Dia., Alu, 0.395 In Rivet Lg., 0.063 In To 0.125 In Grip Rng
Item: AG2WFZModel: U33620.012.0042Cross Ref: 32MN22
7 In Stock
Ships within 2 days via
5.00% off
€67.16 /pkg. of 500
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blind Rivet |
| Blind Rivet Type | Closed End |
| Body Length | 25/64" |
| Body Length Tolerance | -0.004" to +0.02" |
| Body Material | Aluminum |
| Color | Gray |
| Drill Size | #30 |
| Finish | Plain |
| Grade | Grade 5056 |
| Grip Range | 0.063" to 0.125" |
| Head Angle | 120° |
| Head Dia. | 0.221" to 0.245" , 15/64" |
| Head Dia. Tolerance | -0.012" to +0.012" |
| Head Height | 0.042" |
| Head Style | Countersunk |
| Head Type | Countersunk |
| Hole Size | 0.129" to 0.133" |
| Ifi Grade | Grade IFI-126-19 |
| Mandrel Material | Steel |
| Max. Hole Dia. | 0.133" |
| Max. Material Thickness | 1/8" |
| Min. Hole Dia. | 0.129" |
| Min. Material Thickness | 1/16" |
| Overall Length | 1 1/2" |
| Product Type | Blind Rivet |
| Rivet Dia. | 1/8" |
| Rivet Length | 0.395" |
| Rivet Material | Aluminum |
| Rivet Number | 42 |
| Rivet Type | Closed End |
| Shank Dia. | 0.125" |
| Shear Strength | 240 lbs. |
| Single Shear Strength | 240 lbs. |
| System Of Measurement | Imperial |
| Tensile Strength | 280 lbs. |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 8308206000 |
Product Variants
| Product | Model | Rivet Length | Head Dia. | Single Shear Strength | Tensile Strength | Rivet Number | Rivet Material | Mandrel Material | Grade | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AK42H201 | 0.341" | 0.233" | 305 lbs. | 385 lbs. | - | Aluminum | Steel | Grade 5056 | 500 | €65.46 | |
 |
AK43H201 | 0.402" | 15/64" | 305 lbs. | 385 lbs. | - | Aluminum | Steel | Grade 5056 | 500 | €57.73 | |
 |
AK44H200 | 0.466" | 15/64" | 305 lbs. | 385 lbs. | - | Aluminum | Steel | Grade 5056 | 250 | €78.92 | |
 |
U33620.012.0043 | 0.457" | 15/64" | 240 lbs. | 280 lbs. | 43 | Aluminum | Steel | Grade 5056 | 500 | €70.70 | |
 |
U33620.012.0044 | 13/25" | 15/64" | 240 lbs. | 280 lbs. | 44 | Aluminum | Steel | Grade 5056 | 500 | €91.93 | |
 |
U33620.012.0045 | 0.582" | 15/64" | 240 lbs. | 280 lbs. | 45 | Aluminum | Steel | Grade 5056 | 500 | €34.85 | |
 |
U33620.012.0046 | 0.645" | 15/64" | 240 lbs. | 280 lbs. | 46 | Aluminum | Steel | Grade 5056 | 500 | €37.31 |
