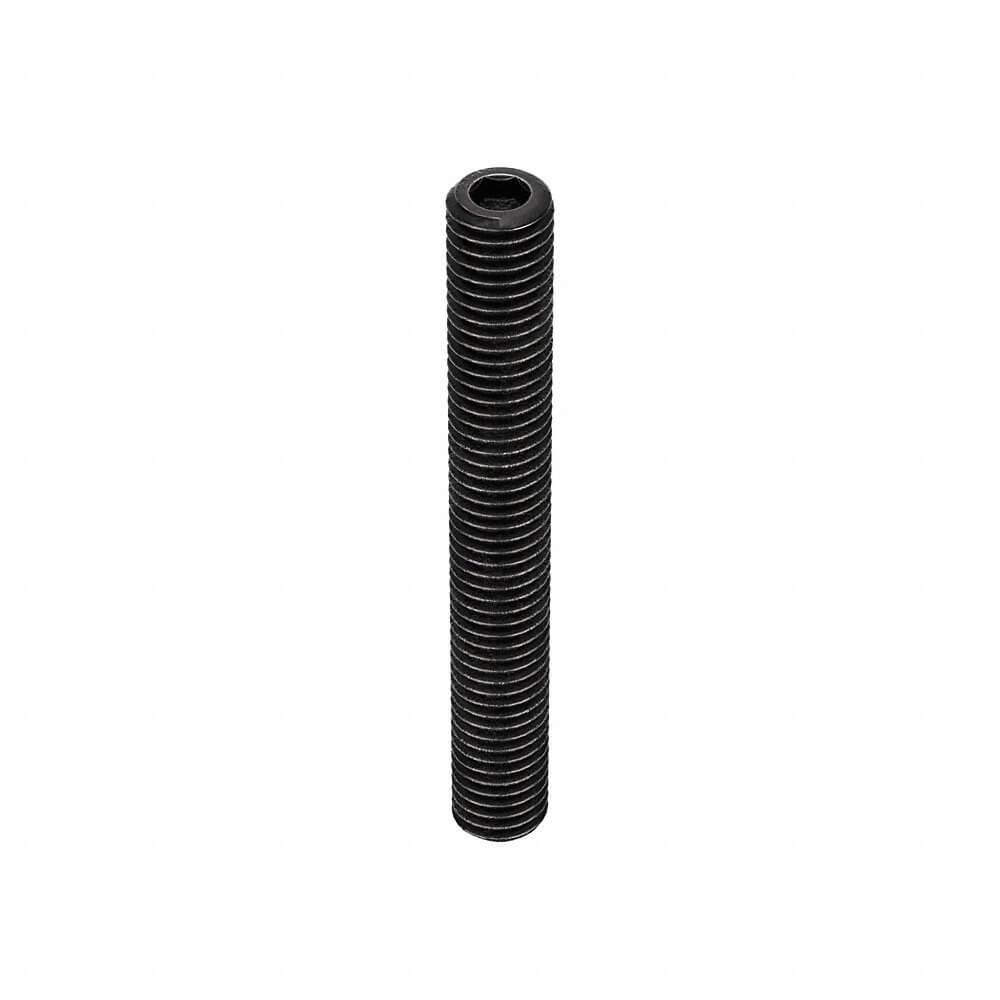

GRAINGER U07840.050.0400 Set Screw, 1/2 In - 13 Thread Size, Pln, 4 In Lg., 1/4 In Drive Size, Cup, Alloy Steel
Item: AH3EQDModel: U07840.050.0400Cross Ref: 31KD76
7 In Stock
Ships within 2 days via
10.00% off
€80.81 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Set Screw |
| Class | Class 3A |
| Decimal Equivalent | 0.25" |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 10 |
| Drive Size | 1/4" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C45-C53 |
| Head Type | Headless |
| Length | 4" |
| Material | Alloy Steel |
| Maximum Temperature | 302°F |
| Minimum Temperature | -58°F |
| Overall Length | 4" |
| Point Material | Alloy Steel |
| Point Type | Cup |
| System Of Measurement | Imperial |
| Temp. Range | -58°F to +302°F |
| Thread Fit | 3A |
| Thread Size | 1/2"-13 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.76 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 12.19 |
Product Variants
| Product | Model | Thread Size | Drive Type | Drive Size | Hardness | Decimal Equivalent | Point Dia. | Thread Type | Display Qty | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07852.037.0037 | 3/8"-24 | Socket | 3/16" | Rockwell C45-C53 | 0.375" | 0.194" to 0.212" | Fine | 100 | 100 | €40.89 | |
 |
U07852.037.0050 | 3/8"-24 | Socket | 3/16" | Rockwell C45-C53 | 0.375" | 0.194" to 0.212" | Fine | 100 | 100 | €45.87 | |
 |
U07840.031.0043 | 5/16"-18 | Socket | 5/32" | Rockwell C45-C53 | 0.312" | 0.156" to 0.172" | Coarse | 100 | 100 | €31.47 | |
 |
U07840.031.0050 | 5/16"-18 | Socket | 5/32" | Rockwell C45-C53 | 0.312" | 0.156" to 0.172" | Coarse | 100 | 100 | €32.14 | |
 |
U07840.031.0025 | 5/16"-18 | Socket | 5/32" | Rockwell C45-C53 | 0.312" | 0.156" to 0.172" | Coarse | 100 | 100 | €32.63 | |
 |
U07840.031.0031 | 5/16"-18 | Socket | 5/32" | Rockwell C45-C53 | 0.312" | 0.156" to 0.172" | Coarse | 100 | 100 | €27.00 | |
 |
U07840.031.0037 | 5/16"-18 | Socket | 5/32" | Rockwell C45-C53 | 0.312" | 0.156" to 0.172" | Coarse | 100 | 100 | €27.86 |
