FREE delivery on orders over €150

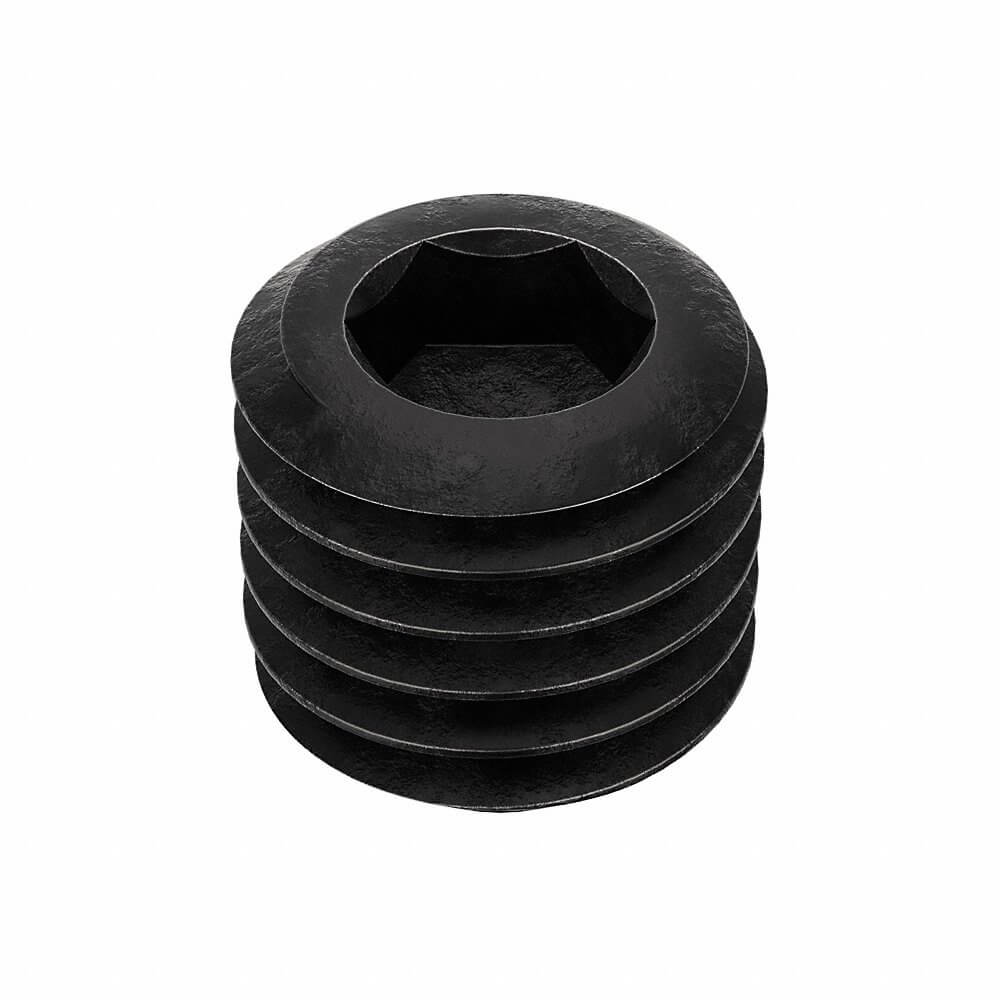

GRAINGER U07810.062.0062 Set Screw, 5/8 In - 11 Thread Size, Pln, 5/8 In Lg., 5/16 In Drive Size, Flat, Alloy Steel
Item: AH3EVTModel: U07810.062.0062Cross Ref: 31KJ76
7 In Stock
Ships within 2 days via
5.00% off
€29.09 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Set Screw |
| Class | Class 3A |
| Decimal Equivalent | 0.313" |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 10 |
| Drive Size | 5/16" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C45-C53 |
| Head Type | Headless |
| Length | 5/8" |
| Material | Alloy, Steel |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Overall Length | 5/8" |
| Point Material | Alloy Steel |
| Point Type | Flat |
| System Of Measurement | Imperial |
| Temp. | -58°F to +302°F |
| Thread Fit | 3A |
| Thread Size | 5/8"-11 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 3.3 |
Product Variants
| Product | Model | Drive Size | Point Dia. | Max. Point Dia. | Min. Point Dia. | Fastener Length | Display Qty | Drive Type | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07810.011.0012 | 3/64" | 0.051" to 0.061" | 0.061" | 0.051" | - | 100 | Socket | Rockwell C48-C53 | 100 | €34.42 | |
 |
U07810.011.0018 | 3/64" | 0.051" to 0.061" | 0.061" | 0.051" | - | 100 | Socket | Rockwell C48-C53 | 100 | €21.55 | |
 |
U07810.011.0025 | 3/64" | 0.051" to 0.061" | 0.061" | 0.051" | - | 100 | Socket | Rockwell C48-C53 | 100 | €25.57 | |
 |
U07810.011.0037 | 3/64" | 0.051" to 0.061" | 0.061" | 0.051" | - | 100 | Socket | Rockwell C48-C53 | 100 | €24.71 | |
 |
U07810.012.0025 | 1/16" | 0.057" to 0.067" | 0.067" | 0.057" | - | 100 | Socket | Rockwell C48-C53 | 100 | €32.50 | |
 |
U07810.013.0012 | 1/16" | 0.064" to 0.074" | 0.074" | 0.064" | - | 100 | Socket | Rockwell C48-C53 | 100 | €23.97 | |
 |
U07810.013.0018 | 1/16" | 0.064" to 0.074" | 0.074" | 0.064" | - | 100 | Socket | Rockwell C48-C53 | 100 | €28.15 |
