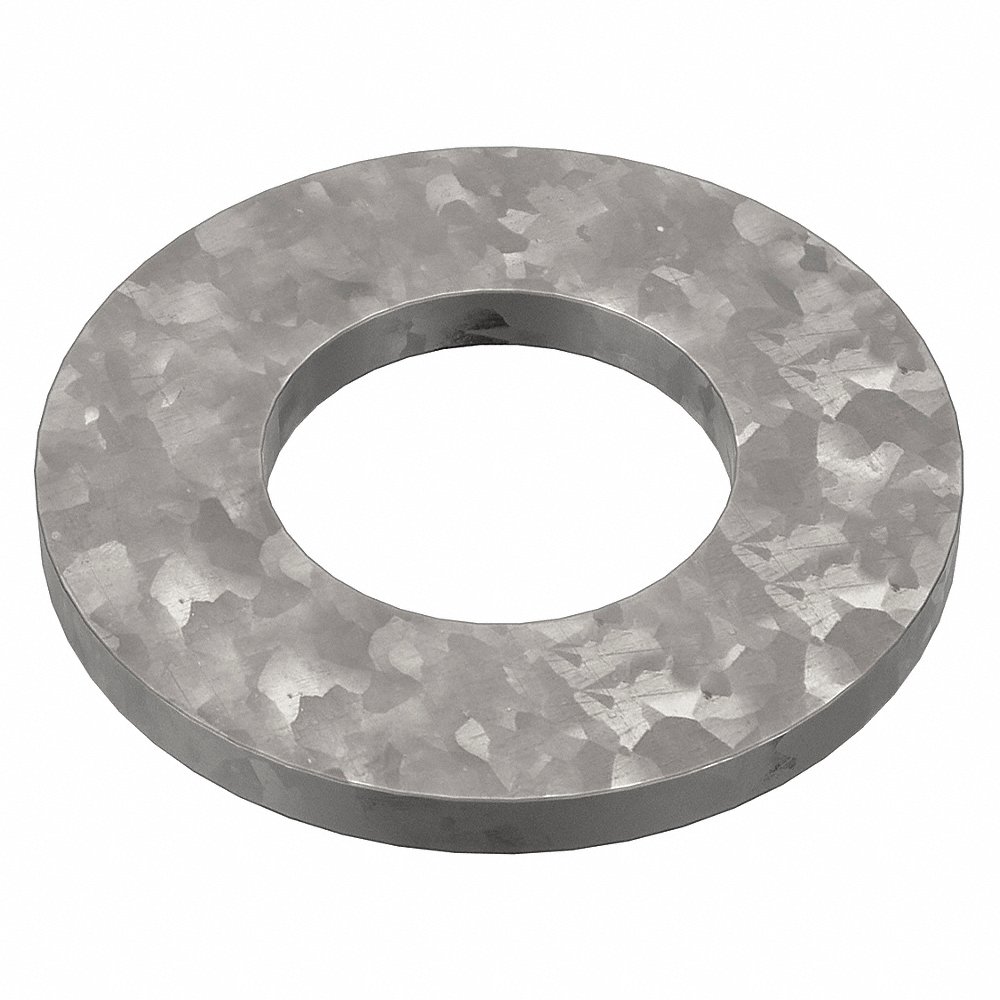

GRAINGER U04237.075.0001 Hardened Steel Washer, 3/4 In Fits Bolt Size, Std, 0.813 In I.D., Steel
Item: AG2GXVModel: U04237.075.0001Cross Ref: 31JM18
7 In Stock
Ships within 2 days via
5.00% off
€4.99 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hardened Steel Washer |
| Dimensional Standards | Astm F436 |
| Finish | Hot Dip Galvanized |
| Fits Bolt Size | 3/4" |
| Flat Washer Type | Standard |
| For Screw Size | 3/4" |
| Inside Dia. | 0.813" |
| Inside Dia. Tolerance | 0" to 0.03125" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Through Hardened |
| Material Quality Standards | Astm F436 |
| Max. Thickness | 0.177" |
| Min. Thickness | 0.122" |
| Outside Dia. | 1 15/32" |
| Outside Dia. Tolerance | -0.03125" to +0.03125" |
| Reach Compliant | Yes |
| Removable | Yes |
| Resistance Properties | Salt Water Resistant |
| Rockwell Hardness | Hrc26 |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Tensile Strength | Not Applicable |
| Thickness | 0.122" to 0.177" |
| Thickness Tolerance | 0.122" to 0.177" |
| Washer Type | Standard Washer |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 7318220000 |
Product Variants
| Product | Model | Inside Dia. | Outside Dia. | Thickness | Max. Thickness | Thickness Tolerance | Min. Thickness | Inside Dia. Tolerance | Outside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U04237.050.0001 | 17/32" | 1 1/16" | 0.097" to 0.177" | 0.177" | 0.097" to 0.177" | 0.097" | 0" to 0.03125" | -0.03125" to +0.03125" | 25 | €7.51 | |
 |
U04237.087.0001 | 15/16" | 1 3/4" | 0.136" to 0.177" | 0.177" | 0.136" to 0.177" | 0.136" | 0" to 0.03125" | -0.03125" to +0.03125" | 5 | €4.85 | |
 |
U04237.100.0001 | 1 1/8" | 2" | 0.136" to 0.177" | 0.177" | 0.136" to 0.177" | 0.136" | 0" to 0.03125" | -0.03125" to +0.03125" | 5 | €6.49 | |
 |
U04237.112.0001 | 1 1/8" | 2 1/4" | 0.136" to 0.177" | 0.136" | - | 0.177" | - | - | 5 | €6.20 | |
 |
U04237.125.0001 | 1 1/4" | 2 1/2" | 0.136" to 0.177" | 0.136" | - | 0.177" | - | - | 5 | €7.37 | |
 |
U04237.062.0001 | 11/16" | 1 5/16" | 0.122" to 0.177" | 0.177" | 0.122" to 0.177" | 0.122" | 0" to 0.03125" | -0.03125" to +0.03125" | 10 | €4.56 | |
 |
U38157.056.0001 | 5/8" | 1 15/32" | 0.109" | 0.109" | 0.086" to 0.132" | 0.109" | 0.62" to 0.64" | 1.462" to 1.499" | 25 | €10.99 |
