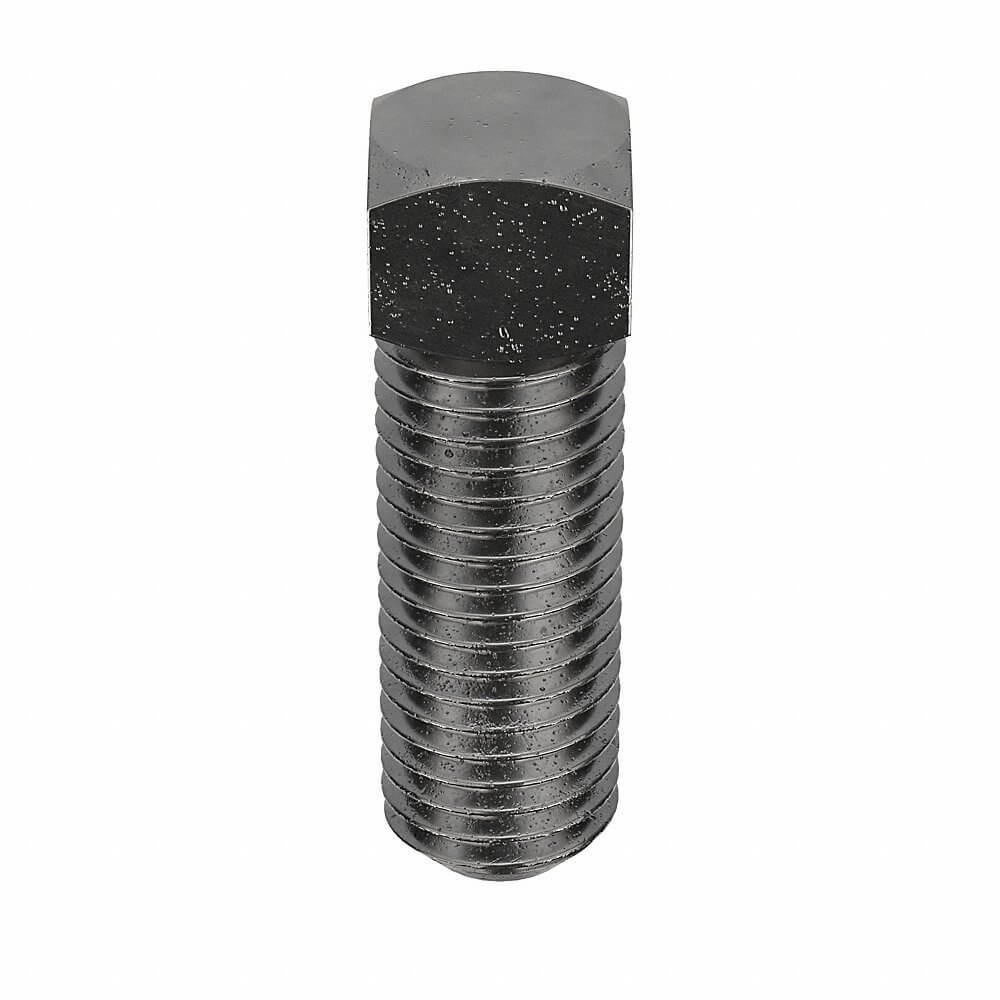

GRAINGER U01080.075.0250 Set Screw, 3/4 In - 10 Thread Size, Plain, 2 1/2 In Lg., Cup, Square Head, Steel
Item: AH3EPTModel: U01080.075.0250Cross Ref: 31KD01
7 In Stock
Ships within 2 days via
5.00% off
€50.40 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Set Screw |
| Class | Class 3A |
| Dimensional Standards | ASME B18.6.2 |
| Display Qty | 5 |
| Drive Size | 3/4" |
| Drive Type | External Square |
| Finish | Plain |
| Hardness | Rockwell C45-C53 |
| Head Height | 0.582" |
| Head Type | Square |
| Head Width | 3/4" |
| Length | 2 1/2" |
| Material | Steel |
| Max. Head Height | 0.582" |
| Max. Head Width | 3/4" |
| Max. Temp. | 302°F |
| Min. Head Height | 0.544" |
| Min. Head Width | 0.729" |
| Min. Temp. | -58°F |
| Overall Length | 2 1/2" |
| Point Material | Steel |
| Point Type | Cup |
| System Of Measurement | Imperial |
| Temp. | -58°F to +302°F |
| Thread Fit | 3A |
| Thread Size | 3/4"-10 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.71 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
Product Variants
| Product | Model | Drive Size | Head Width | Head Height | Max. Head Width | Max. Head Height | Min. Head Height | Min. Head Width | Head Type | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M07840.020.0002 | 0.9 mm | - | - | - | - | - | - | Headless | 100 | €28.27 | |
 |
M07840.020.0012 | 0.9 mm | - | - | - | - | - | - | Headless | 100 | €26.29 | |
|
M07840.030.0030 | 1.5 mm | - | - | - | - | - | - | Headless | 100 | €76.96 | |
|
M07840.040.0035 | 2 mm | - | - | - | - | - | - | Headless | 100 | €63.57 | |
 |
M07840.050.0004 | 2.5 mm | - | - | - | - | - | - | Headless | 100 | €10.83 | |
|
M07840.060.0060 | 3 mm | - | - | - | - | - | - | - | 100 | €111.04 | |
|
M07840.060.0070 | 3 mm | - | - | - | - | - | - | Headless | 100 | €160.34 |
