FREE delivery on orders over €150

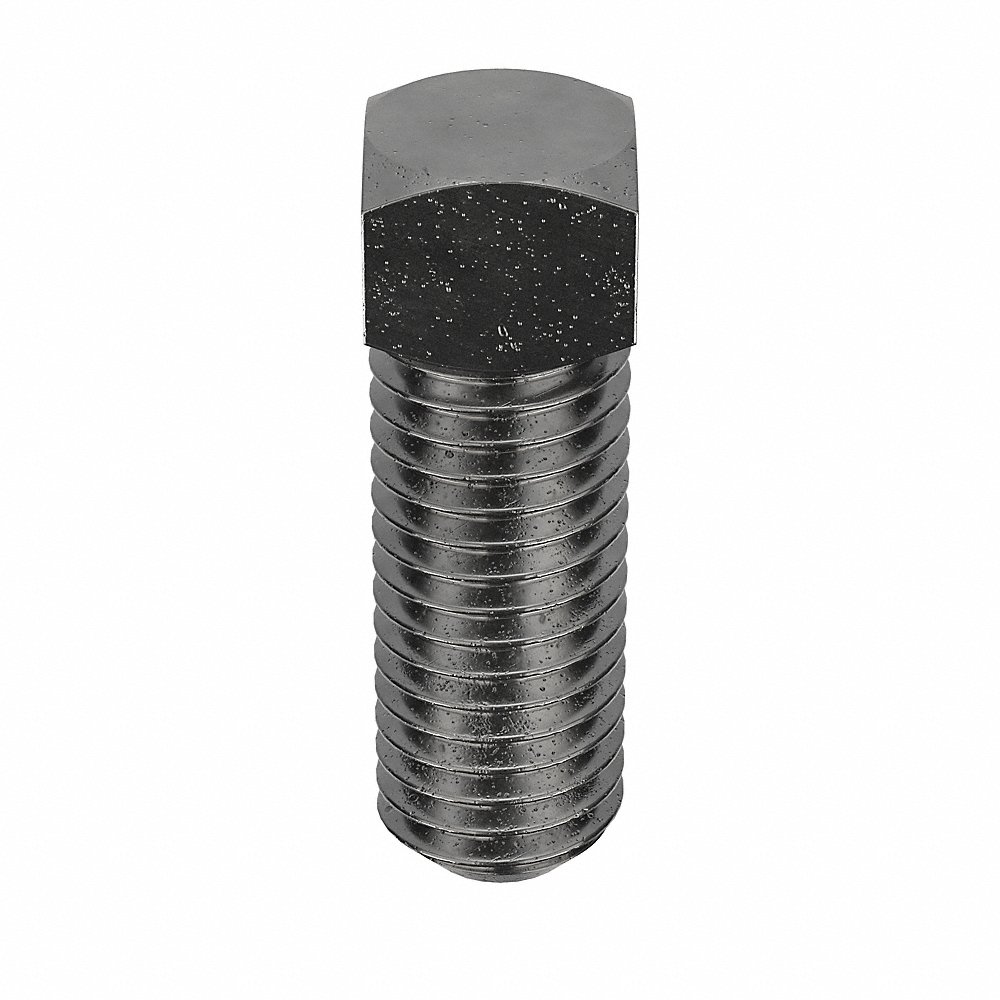

GRAINGER U01080.062.0200 Set Screw, 5/8 In - 11 Thread Size, Plain, 2 In Lg., Cup, Square Head, Steel
Item: AG2KTPModel: U01080.062.0200Cross Ref: 31KJ60
7 In Stock
Ships within 2 days via
10.00% off
€49.26 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Set Screw |
| Class | Class 3A |
| Dimensional Standards | ASME B18.6.2 |
| Display Qty | 10 |
| Drive Size | 5/8" |
| Drive Type | External Square |
| Finish | Plain |
| Hardness | Rockwell C45-C53 |
| Head Height | 0.485" |
| Head Type | Square |
| Head Width | 5/8" |
| Length | 2" |
| Material | Steel |
| Maximum Head Height | 0.485" |
| Maximum Head Width | 5/8" |
| Maximum Temperature | 302°F |
| Minimum Head Height | 0.452" |
| Minimum Head Width | 0.606" |
| Minimum Temperature | -58°F |
| Overall Length | 2" |
| Point Material | Steel |
| Point Type | Cup |
| System Of Measurement | Imperial |
| Temp. Range | -58°F to +302°F |
| Thread Fit | 3A |
| Thread Size | 5/8"-11 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 8.89 |
| HS code | 7318158045 |
Product Variants
| Product | Model | Thread Size | Drive Type | Drive Size | Decimal Equivalent | Thread Type | Head Type | Display Qty | Head Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M07840.020.0002 | M2 x 0.4 | Socket | 0.9 mm | - | Coarse | Headless | 100 | - | 100 | €29.71 | |
 |
M07840.020.0012 | M2 x 0.4 | Socket | 0.9 mm | - | Coarse | Headless | 100 | - | 100 | €33.73 | |
|
M07840.030.0030 | M3 x 0.5 | Socket | 1.5 mm | - | Coarse | Headless | 100 | - | 100 | €77.48 | |
|
M07840.040.0035 | M4 x 0.7 | Socket | 2 mm | - | Coarse | Headless | 100 | - | 100 | €63.83 | |
 |
M07840.050.0004 | M5 x 0.8 | Socket | 2.5 mm | - | Coarse | Headless | 100 | - | 100 | €13.80 | |
|
M07840.060.0060 | M6 x 1 | Hex Socket | 3 mm | - | - | - | - | - | 100 | €142.32 | |
|
M07840.060.0070 | M6 x 1 | Socket | 3 mm | - | Coarse | Headless | 100 | - | 100 | €141.41 |
