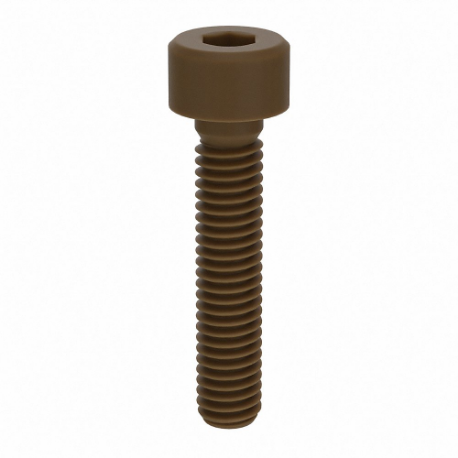

GRAINGER PKM407-20SHC-01 Socket Head Cap Screw, M4x0.7 Thread Size, Std, 20 mm Lg., 3.9 mm Head Ht.
Item: CQ4XCDModel: PKM407-20SHC-01Cross Ref: 447C43
7 In Stock
Ships within 2 days via
5.00% off
€35.32 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Not Graded Glass Filled Peek |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 10 |
| Drive Size | 3 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Non Graded |
| Head Dia. | 7 mm |
| Head Height | 3.9 mm |
| Head Type | Standard |
| Length | 20 mm |
| Material | Glass Filled PEEK |
| Material Grade/class | Ungraded |
| Material Type | Plastic |
| Max. Temp. | 500°F |
| Min. Temp. | -50°F |
| Min. Thread Length | 20 mm |
| Screw Length | 20 mm |
| System Of Measurement | Metric |
| Tensile Strength | 28565 psi |
| Thread Direction | Right Hand |
| Thread Fit | 6G |
| Thread Size | M4 x 0.7 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
