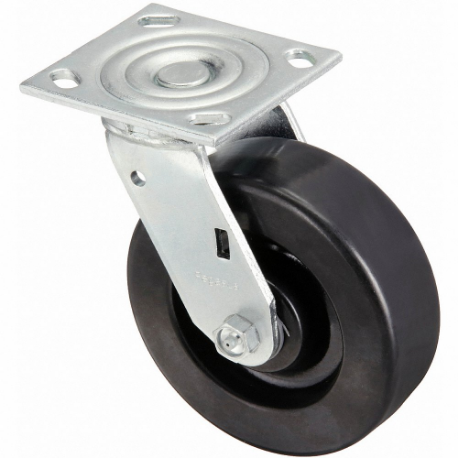

GRAINGER P21S-PH080R-14 Sanitary Plate Caster, 8 Inch Dia, 9 1/2 Inch Height
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€64.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Plate Caster |
| Application | Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks |
| Brake Type | No Brake Included |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Sub-type | Swivel |
| Core Color | Black |
| Features | Floor Protective |
| Frame Finish | Zinc Plated |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 3" x 3" |
| Load Rating | 1250 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 9 1/2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 4.5" x 4" |
| Mounting Plate Size & Bolt Hole Pattern | 4" X 4 1/2" ( B ) |
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 2 5/8" x 3 5/8" |
| Replacement Wheel | Mfr. No. P-PH-080X020/050R |
| Standards | Icwm, Nsf Listed |
| Swivel Construction | Kingspin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 6 3/4" |
| Tread Material, Wheel Material | Phenolic |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Core Material | Phenolic |
| Wheel Diameter | 8" |
| Wheel Width | 2" |
| Wheel/tread Color | Black |
| Wheel/tread Hardness | Rockwell 102E |
| Wheel/tread Hardness Rating | Hard |
Shipping Info:
| Ship weight (kg) | 3.33 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Caster Sub-type | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Mounting Plate Size | Wheel Width | Wheel Bearing Type | Load Rating | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
406P68 | Swivel | B | 3" x 3" | 2 5/8" x 3 5/8" | 3 3/4" x 4 1/2" | 1 1/2" | Roller | 350 lbs. | 1 | €31.85 | |
 |
P21-RY060R-14-SET | Rigid, Swivel | B | 3" x 3" | 2 5/8" x 3 5/8" | 4.5" x 4" | 2" | Roller | 2200 lbs. | 4 | €189.40 | |
 |
400K63 | Swivel | C | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 2 1/2" x 3 5/8" | 1 1/4" | Delrin | 250 lbs. | 1 | €19.99 | |
 |
P12S-R035D-12 | Swivel | C | 1.75" x 2.812" | 1 3/4" x 3 1/16" | 2 1/2" x 3 5/8" | 1 1/4" | Delrin | 155 lbs. | 1 | €10.22 | |
 |
P12S-PRP035B-12 | Swivel | C | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 2 1/2" x 3 5/8" | 1 1/4" | Precision Ball | 250 lbs. | 1 | €11.89 | |
 |
P21S-PH033R-14 | Swivel | B | 3" x 3" | 2 5/8" x 3 5/8" | 4.5" x 4" | 2" | Roller | 700 lbs. | 1 | €45.64 | |
 |
400K75 | Swivel | B | 3" x 3" | 2 5/8" x 3 5/8" | 3 3/4" x 4 1/2" | 1 1/2" | Roller | 350 lbs. | 1 | €43.22 |
