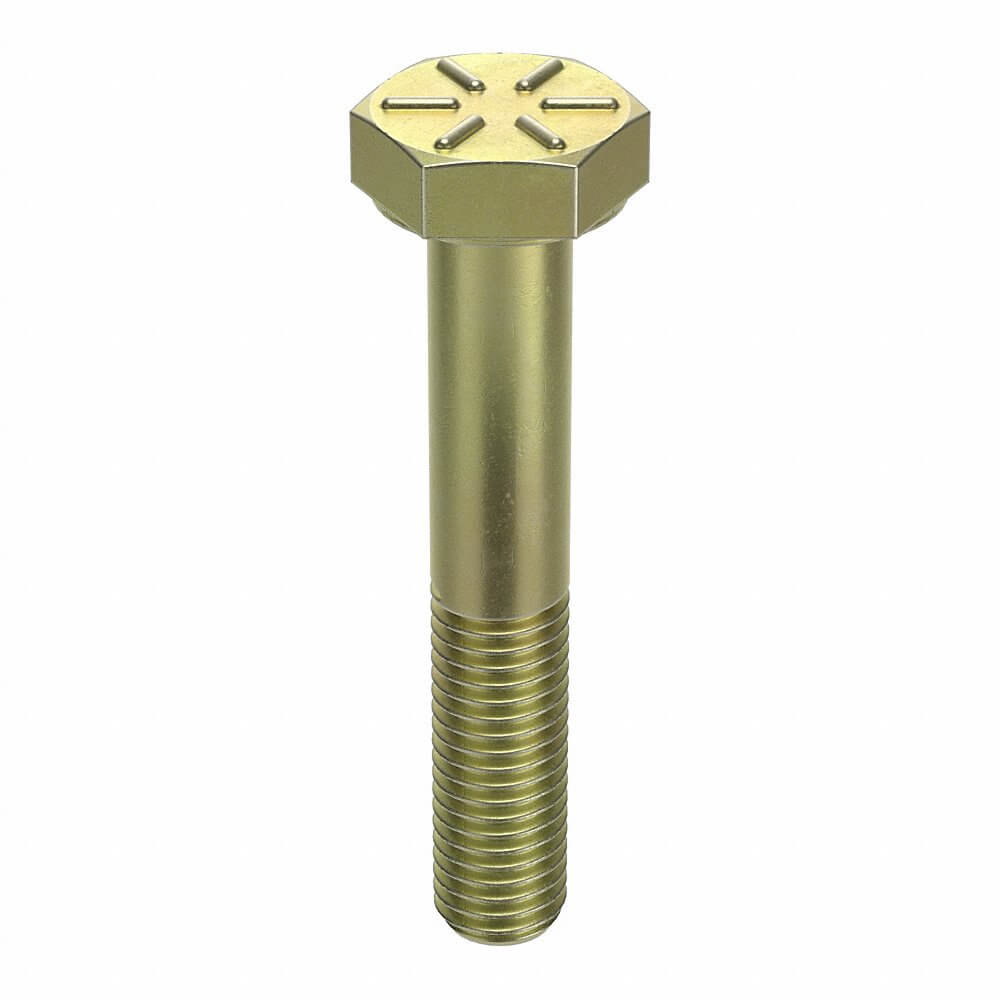

GRAINGER N04360.031.0175 Hex Head Cap Screw, 5/16 In - 24 Thread Size, Steel, 1 3/4 In Lg., 13/64 In Head Ht., Fine, Yellow Zn Plated, Gr. 8
Item: AH8HWMModel: N04360.031.0175Cross Ref: 38TR63
7 In Stock
Ships within 2 days via
10.00% off
€46.54 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Not Applicable |
| Drive | Hex |
| Fastener Length | 1 3/4" |
| Finish | Zinc Yellow |
| Grade | Grade 8 |
| Hardness | Rockwell C33-C39 |
| Head Height | 13/64" |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 1/2" |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 1 3/4" |
| Material | Steel |
| Material Grade/class | Grade 8 |
| Material Quality Standards | Sae J429 |
| Maximum Temperature | 302°F |
| Min. Thread Length | 7/8" |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 7/8" |
| Overall Length | 1 3/4" |
| Rockwell Hardness | Hrc33 |
| System Of Measurement | Imperial |
| Tensile Strength | 150000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 2A |
| Thread Length | 7/8" |
| Thread Size | 5/16"-24 |
| Thread Style | Partially Threaded |
| Thread Type | Fine |
Shipping Info:
| Ship weight (kg) | 1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 17.78 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Style | Thread Direction | Head Type | Drive Size | Hardness | Thread Fit | Finish | Thread Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
N04360.031.0050 | Fully Threaded | Right Hand | Hex | - | Rockwell C33-C39 | 2A | Zinc Yellow | 5/16"-24 | 100 | €36.29 | |
 |
N04360.031.0075 | Fully Threaded | Right Hand | Hex | - | Rockwell C33-C39 | 2A | Zinc Yellow | 5/16"-24 | 100 | €45.35 | |
|
N04360.031.0150 | Partially Threaded | Right Hand | Hex | - | Rockwell C33-C39 | 2A | Zinc Yellow | 5/16"-24 | 100 | €89.10 | |
 |
N04360.031.0350 | Partially Threaded | Right Hand | Hex | - | Rockwell C33-C39 | 2A | Zinc Yellow | 5/16"-24 | 50 | €62.50 | |
 |
U04360.031.0275 | Partially Threaded | Right Hand | Hex | - | - | 2A | Zinc Yellow | 5/16"-24 | 50 | €38.02 | |
 |
U04360.031.0450 | Partially Threaded | Right Hand | Hex | - | - | 2A | Zinc Yellow | 5/16"-24 | 25 | €35.11 | |
|
U04360.031.0500 | Partially Threaded | Right Hand | Hex | - | - | 2A | Zinc Yellow | 5/16"-24 | 25 | €38.77 |
