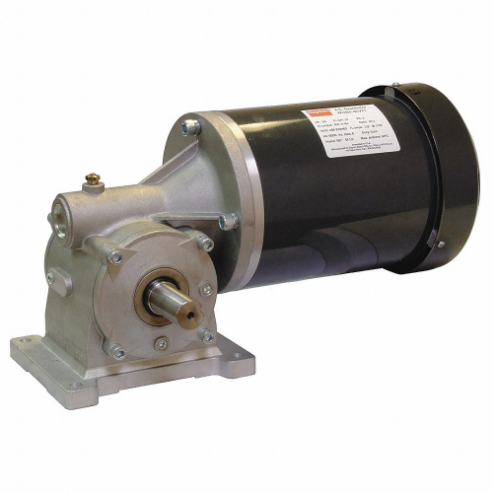

DAYTON 4CVU7 AC Gearmotor, 30 RPM, 680 Inch lbs. Max. Torque, Single Left, CW/CCW
Get it by Wednesday, Dec 17
10.00% off
€2,187.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Application | Conveyors, Mixers, Printing Press, Pumps |
| Base To Center Of Shaft | 3 1/4" |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Dimension A | 9.53" |
| Dimension Aa | 6 18/25" |
| Dimension Ab | 6" |
| Dimension B | 7.13" |
| Dimension C | 7" |
| Dimension D | 6" |
| Dimension E | 3.22" |
| Dimension H | 3 1/4" |
| Dimension L | 2 1/2" |
| Dimension N | 11/25" |
| Frequency | 50/60 Hz |
| Full Load Current | 1.9-2/0.95A |
| Gear Material | Forged Bronze, Hardened Steel |
| Gear Ratio | 581 |
| Gear Type | Worm |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Right Angle |
| Housing Material | Aluminum, Cast Iron |
| Housing Mount Hole Size | 0.406" |
| Input Hp | 1/2 hp |
| Keyway Depth | 1 1/4" |
| Keyway Type | Woodruff |
| Keyway Width | 1/4" |
| Lubrication | Gear Oil |
| Maximum Ambient Temperature | 104°F |
| Maximum Torque | 680 lbs.-in. |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class F |
| Motor Type | 3-Phase |
| Mount Hole Center-to-center Length | 6" |
| Mount Hole Center-to-center Width | 5" |
| Mount Type | Any Position |
| Mounting Orientation | Any Angle |
| Nameplate Speed | 30 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 208-230/460V AC |
| Output Direction | Left Hand |
| Output Location | Left Hand |
| Output Shaft Dia. | 1" |
| Output Shaft Height | 3 1/4" |
| Output Shaft Length | 2 1/4" |
| Overall Height | 9.06" |
| Overall Length | 16 1/4" |
| Overall Width | 11" |
| Overhung Load Capacity | 980 lbs.-ft. |
| Phase | Three |
| Rotation | CW/CCW |
| Seal Type | Oil Seals on Axle Shaft |
| Shaft | Single Output |
| Shaft Orientation | Right Angle |
| Standards | Ul Recognized |
| Starting Torque | 2552 lbs.-in. |
Shipping Info:
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 23.01 |
| Ship length (cm) | 41.28 |
| Ship width (cm) | 27.94 |
| Country of Origin | CN |
Product Variants
| Model | Gear Ratio | Rotation | Overhung Load Capacity | Base To Center Of Shaft | Nameplate Rpm Range | Overall Length | Output Shaft Dia. | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

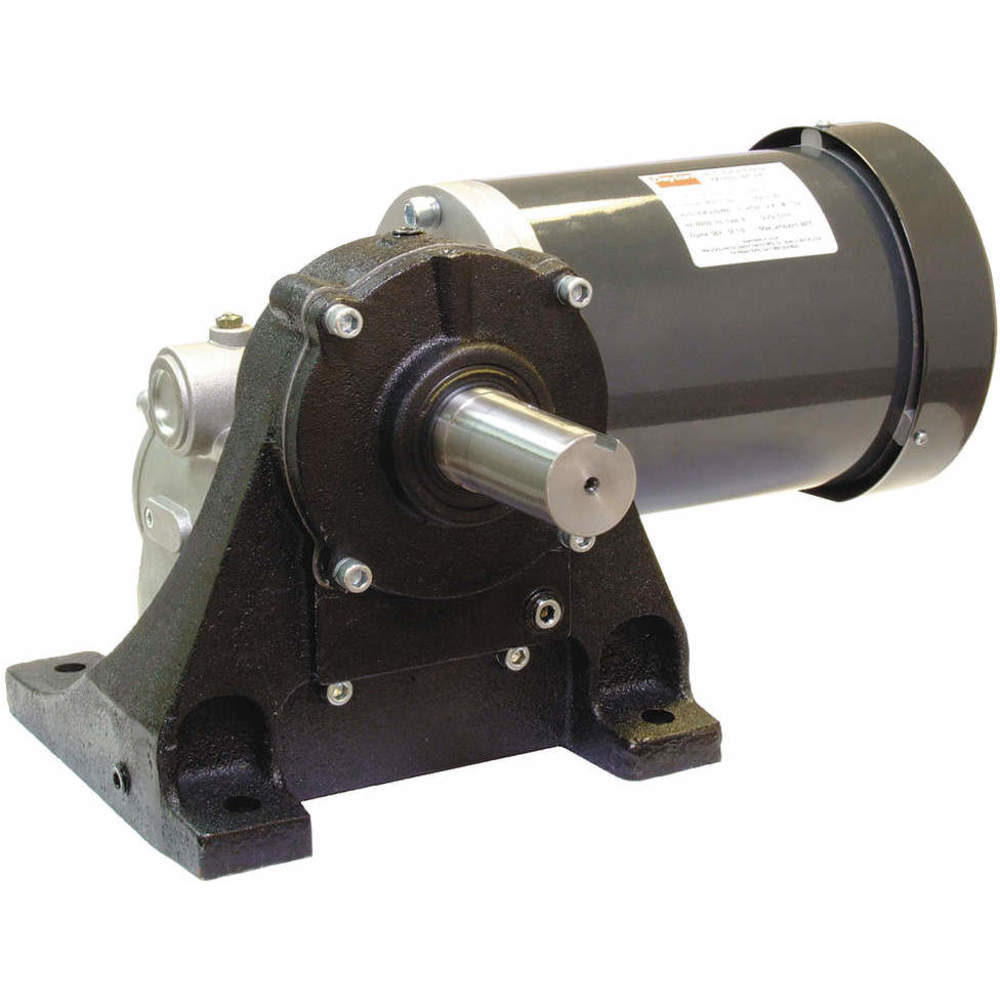

| 4FDY4 | 57:1 | CW/CCW | 883 lbs.-ft. | 6.31" | 16-30 RPM | 18.69" | 1 1/2" | 9.14" | €3,225.47 | |
| 4FDY5 | 37:1 | CW/CCW | 894 lbs.-ft. | 6.31" | 31-50 RPM | 18.69" | 1 1/2" | 9.14" | €4,262.34 | |
| 4FDY6 | 25:1 | CW/CCW | 827 lbs.-ft. | 6.31" | 51-75 RPM | 18.69" | 1 1/2" | 9.14" | €3,749.66 | |
| 4FDY8 | 57:1 | Reversible | - | - | 16-30 RPM | 17 11/25" | 1 1/2" | 9.14" | €2,668.53 | |
| 4CVX4 | 111 | CW/CCW | 723 lbs.-ft. | 3 1/4" | - | 16 1/4" | 1" | 9.06" | €2,358.76 | |
| 4CVY7 | 261 | - | - | - | - | 16 1/4" | 1" | 9.06" | €2,130.38 | |
| 4CVX2 | 261 | CW/CCW | 882 lbs.-ft. | 3 1/4" | - | 16 1/4" | 1" | 9.06" | €2,486.32 |
