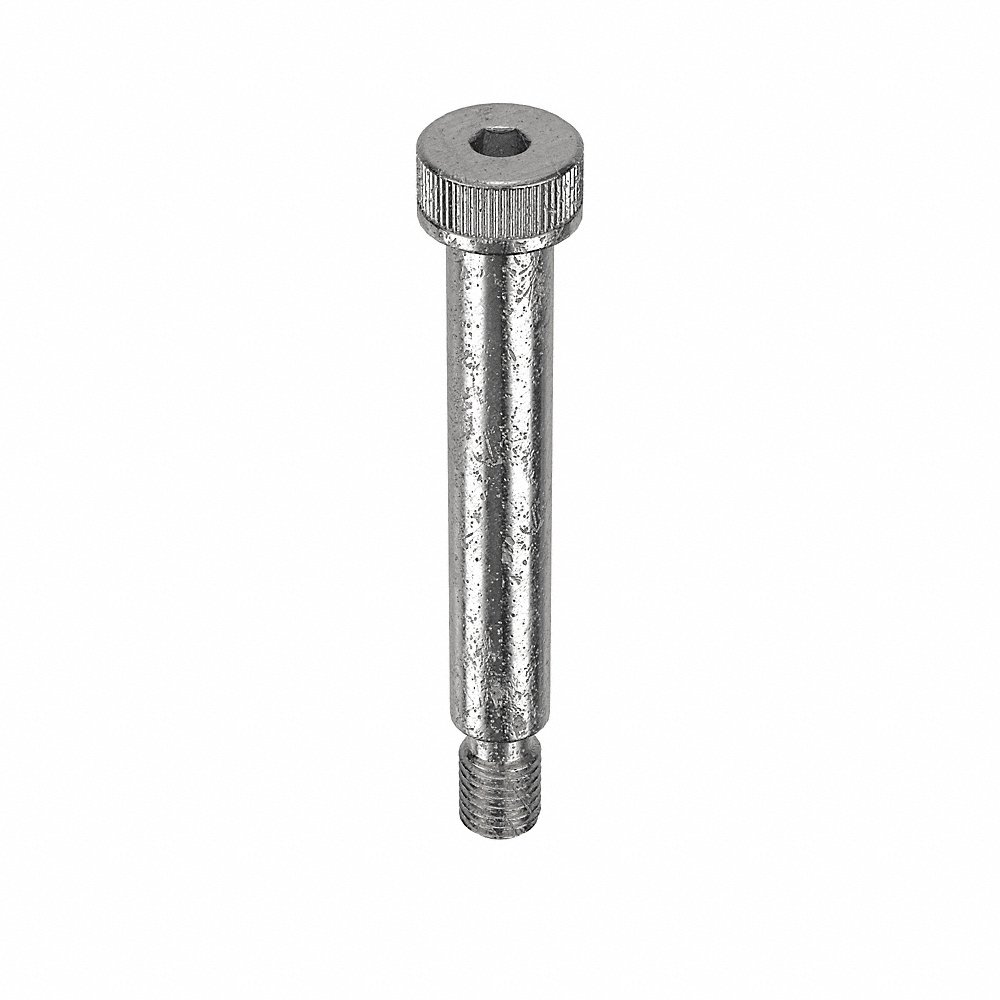

GRAINGER M51044.120.0070 Shoulder Screw, M10x1.5 Thread Size, 70 mm Shoulder Lg., 9 mm Head Ht., Plain
Item: AG2KNGModel: M51044.120.0070Cross Ref: 31KG74
7 In Stock
Ships within 2 days via
5.00% off
€45.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | Iso 7379 |
| Display Qty | 1 |
| Drive Size | 6 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Head Dia. | 18 mm |
| Head Height | 9 mm |
| Head Texture | Knurled |
| Head Type | Standard |
| Heat Treatment | No Heat Treatment |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Max. Head Height | 9 mm |
| Max. Temp. | Not Rated |
| Min. Head Height | 8.78 mm |
| Min. Temp. | Not Rated |
| Min. Yield Strength | Not Rated |
| Precision Screw | No |
| Proof Load | Not Rated |
| Resistance Properties | Corrosion Resistant |
| Rockwell Hardness | Not Rated |
| Screw Head Height | 12mm |
| Shear Strength | Not Rated |
| Shoulder Dia. | 12 mm |
| Shoulder Dia. Tolerance | -0.06 mm to 0 mm |
| Shoulder Length | 70 mm |
| Shoulder Length Tolerance | 0 mm to 0.25 mm |
| System Of Measurement | Metric |
| Tensile Strength | Not Rated |
| Thread Direction | Right Hand |
| Thread Fit | Class 5G, Class 6G |
| Thread Length | 16 mm |
| Thread Locking | No |
| Thread Size | M10 x 1.5 |
| Thread Type | Metric Coarse |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 7318158030 |
Product Variants
| Product | Model | Head Dia. | Shoulder Dia. | Shoulder Length | Thread Length | Head Height | Type | Shoulder Length Tolerance | Shoulder Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U51044.031.0025 | 1/2" | 5/16" | 1/4" | 7/16" | 7/32" | Precision Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 5 | €7.03 | |
 |
U51044.031.0031 | 1/2" | 5/16" | 5/16" | 7/16" | 7/32" | Precision Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 5 | €15.41 | |
 |
U51044.031.0037 | 1/2" | 5/16" | 3/8" | 7/16" | 7/32" | Precision Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 5 | €62.24 | |
 |
U51044.031.0050 | 1/2" | 5/16" | 1/2" | 7/16" | 7/32" | Precision Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 5 | €7.29 | |
 |
U51044.031.0062 | 1/2" | 5/16" | 5/8" | 7/16" | 7/32" | Precision Shoulder Screw | -0.005" to +0.005" | 0.002" to 0.004" | 5 | €7.91 | |
 |
U51044.031.0075 | 7/16" | 5/16" | 3/4" | 7/16" | 7/32" | Standard Shoulder Screw | -0.005" to +0.005" | 0.1915" to 0" | 5 | €59.98 | |
 |
U51044.037.0031 | 9/16" | 3/8" | 5/16" | 1/2" | 1/4" | Precision | -0.005" to +0.005" | - | 5 | €10.46 |
