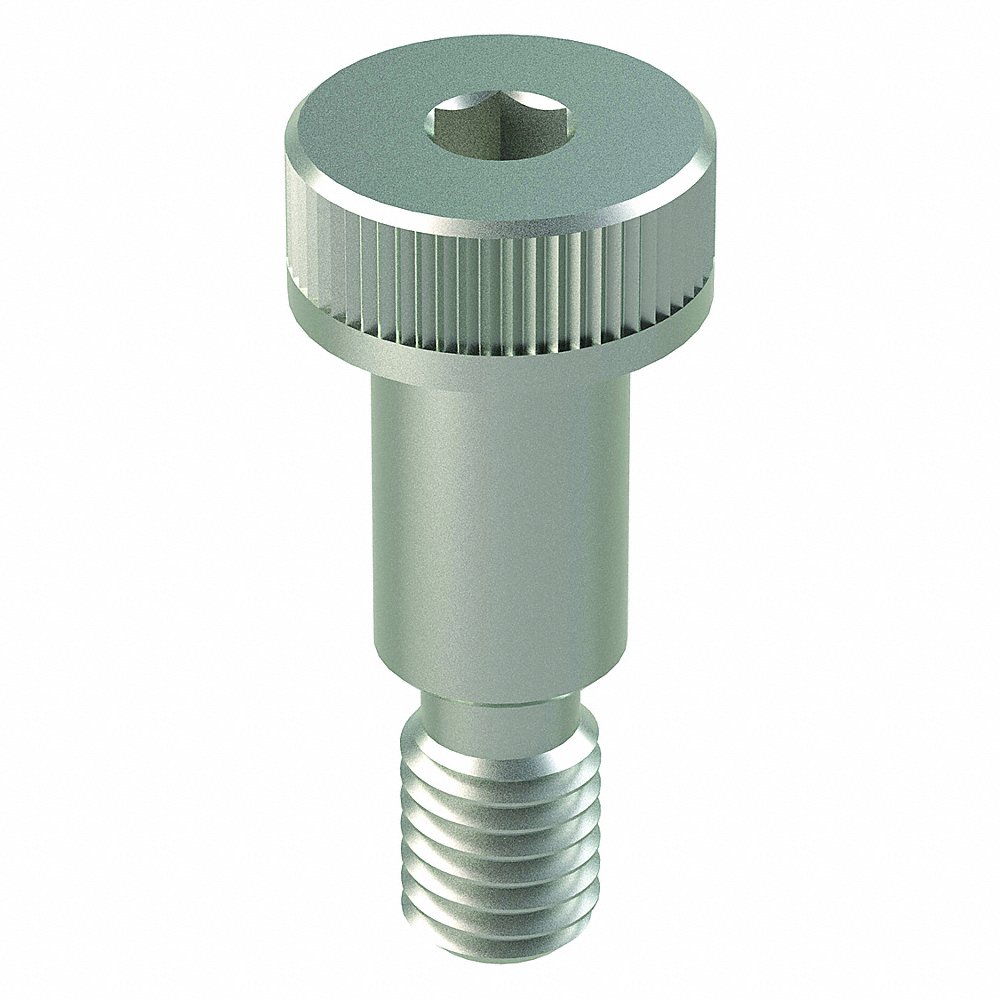

GRAINGER M51044.100.0016 Shoulder Screw, M8x1.25 Thread Size, 16 mm Shoulder Lg., 7 mm Head Ht., Plain
Get it by Monday, Feb 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€95.49 /pkg. of 5
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | Iso 7379 |
| Display Qty | 5 |
| Drive Size | 5 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Head Dia. | 16 mm |
| Head Height | 7 mm |
| Head Texture | Knurled |
| Head Type | Standard |
| Heat Treatment | No Heat Treatment |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Maximum Head Height | 7 mm |
| Maximum Temperature | Not Rated |
| Minimum Head Height | 6.78 mm |
| Minimum Temperature | Not Rated |
| Minimum Yield Strength | Not Rated |
| Precision Screw | No |
| Proof Load | Not Rated |
| Resistance Properties | Corrosion Resistant |
| Rockwell Hardness | Not Rated |
| Screw Head Height | 10mm |
| Shear Strength | Not Rated |
| Shoulder Dia. | 10 mm |
| Shoulder Diameter Tolerance | -0.05 mm to 0 mm |
| Shoulder Length | 16 mm |
| Shoulder Length Tolerance | 0 mm to 0.25 mm |
| System Of Measurement | Metric |
| Tensile Strength | Not Rated |
| Thread Direction | Right Hand |
| Thread Fit | Class 5G, Class 6G |
| Thread Length | 13 mm |
| Thread Locking | No |
| Thread Size | M8 x 1.25 |
| Thread Type | Metric Coarse |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 32.99 |
| Ship width (cm) | 17.2 |
| HS code | 7318158030 |
Product Variants
| Product | Model | Thread Size | Shoulder Length | Shoulder Dia. | Thread Length | Shoulder Length Tolerance | Head Dia. | Head Height | Dimensional Standards | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U51044.031.0025 | 1/4"-20 | 1/4" | 5/16" | 7/16" | -0.005" to +0.005" | 1/2" | 7/32" | ASME B18.3 | 5 | €7.33 | |
 |
U51044.031.0031 | 1/4"-20 | 5/16" | 5/16" | 7/16" | -0.005" to +0.005" | 1/2" | 7/32" | ASME B18.3 | 5 | €12.96 | |
 |
U51044.031.0037 | 1/4"-20 | 3/8" | 5/16" | 7/16" | -0.005" to +0.005" | 1/2" | 7/32" | ASME B18.3 | 5 | €54.68 | |
 |
U51044.031.0050 | 1/4"-20 | 1/2" | 5/16" | 7/16" | -0.005" to +0.005" | 1/2" | 7/32" | ASME B18.3 | 5 | €7.58 | |
 |
U51044.031.0062 | 1/4"-20 | 5/8" | 5/16" | 7/16" | -0.005" to +0.005" | 1/2" | 7/32" | ASME B18.3 | 5 | €8.23 | |
 |
U51044.031.0075 | 1/4"-20 | 3/4" | 5/16" | 7/16" | -0.005" to +0.005" | 1/2" | 7/32" | ASME B18.3 | 5 | €50.40 | |
 |
U51044.037.0031 | 5/16"-18 | 5/16" | 3/8" | 1/2" | -0.005" to +0.005" | 9/16" | 1/4" | - | 5 | €10.90 |
